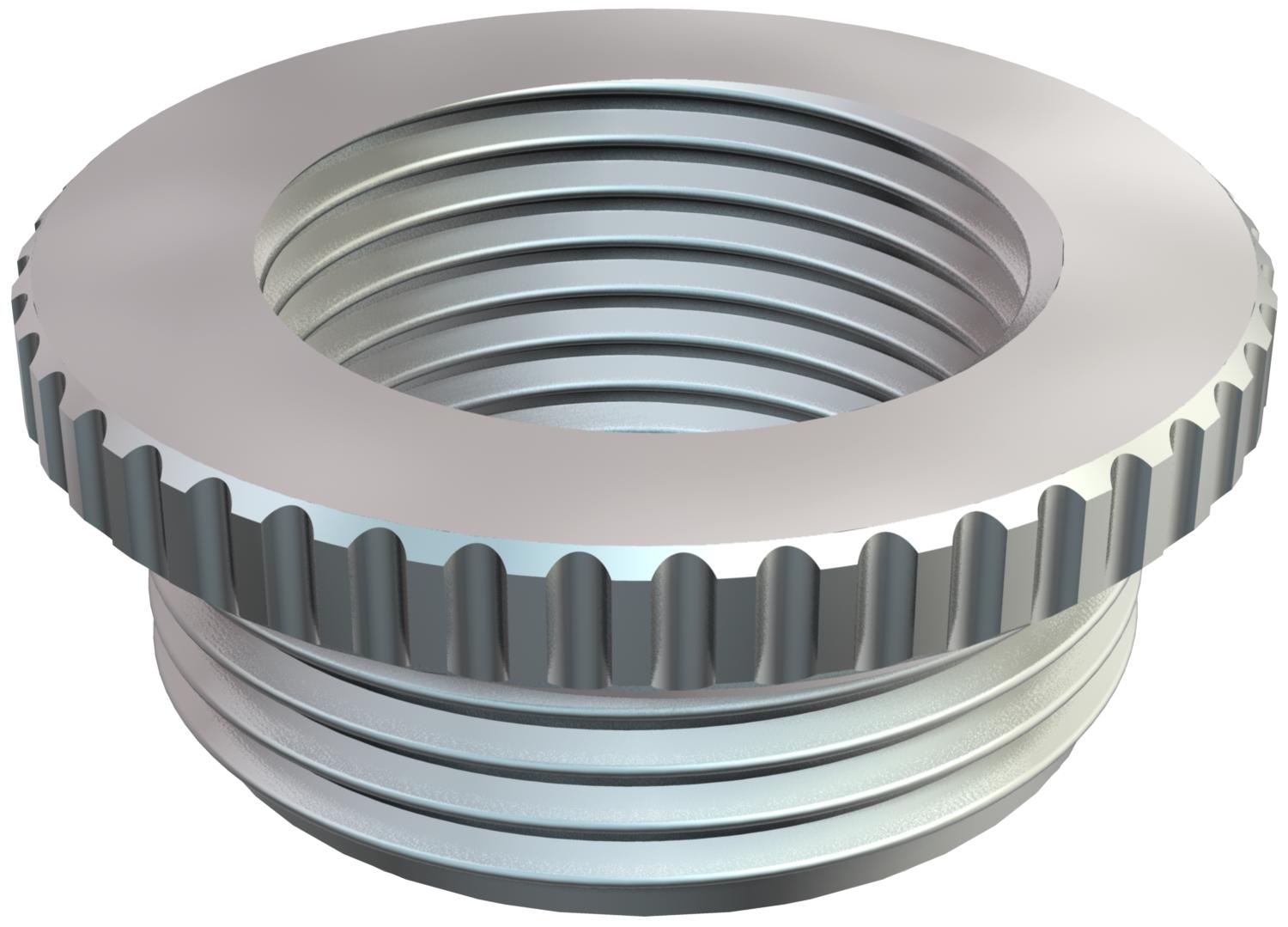

Reduction, metric thread

Item no. 2089505 | EAN 4012195475392

Product description

Product description

Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.
* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

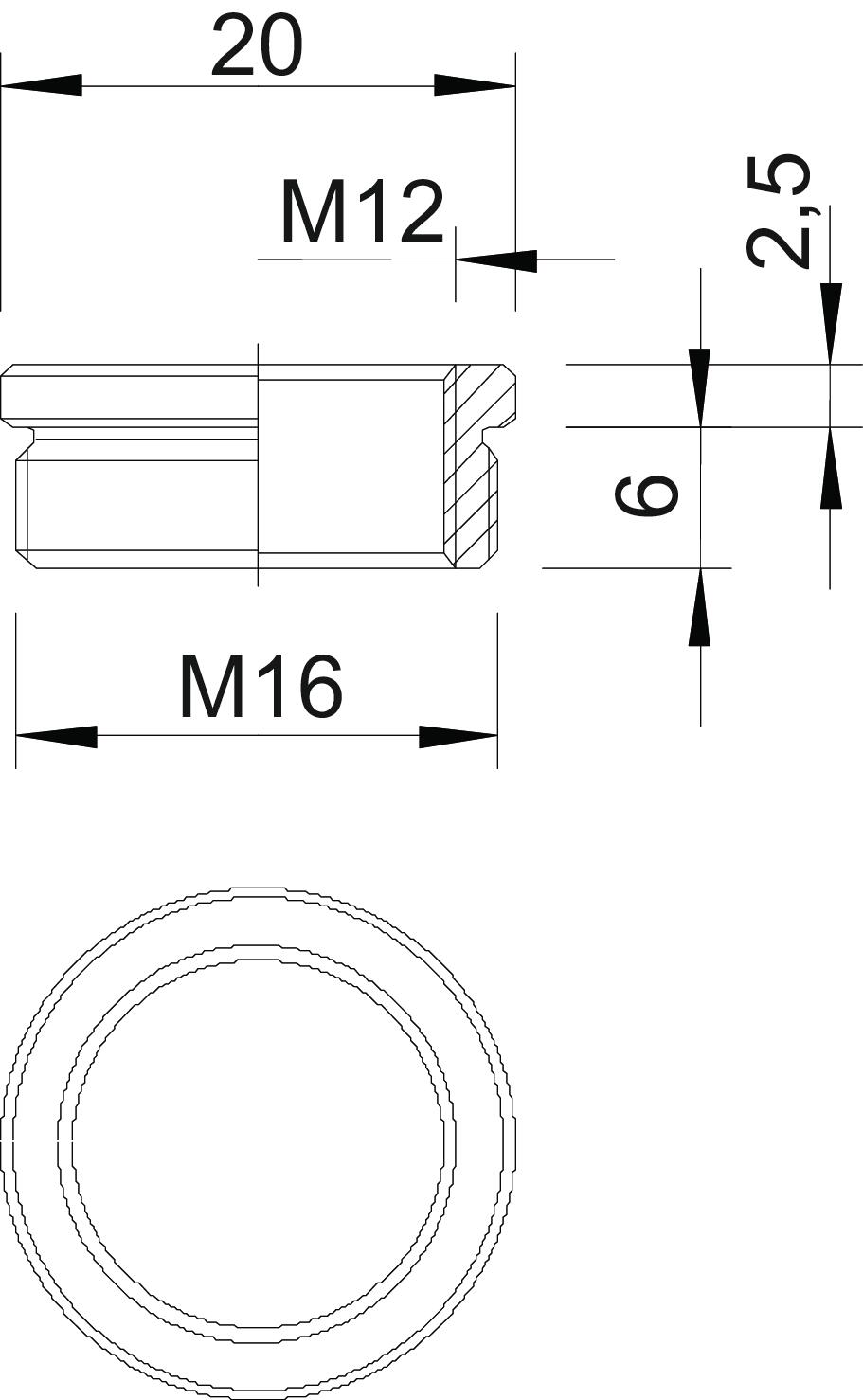

Dimension M16-M12
Dimension D 20 mm
Dimension L1 6 mm
Dimension L2 2,5 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 16
Thread dimension, metric, internal 12
Thread length 6 mm
Thread type: External thread Metric
Thread type: Internal thread Metric
All types

All types

Types Thread dimension, metric, external Thread dimension, metric, internal Item no. Quantity SSU
167 R MS M16-12 16 12 2089505
50 piece
167 R MS M20-12 20 12 2089513
50 piece
167 R MS M20-16 20 16 2089521
50 piece
167 R MS M25-16 25 16 2089548
50 piece
167 R MS M25-20 25 20 2089556
50 piece
167 R MS M32-20 32 20 2089564
50 piece
167 R MS M32-25 32 25 2089572
50 piece
167 R MS M40-25 40 25 2089580
25 piece
167 R MS M40-32 40 32 2089599
25 piece
167 R MS M50-32 50 32 2089602
25 piece
167 R MS M50-40 50 40 2089610
25 piece
167 R MS M63-40 63 40 2089629
10 piece
167 R MS M63-50 63 50 2089637
10 piece
