- Product description
-

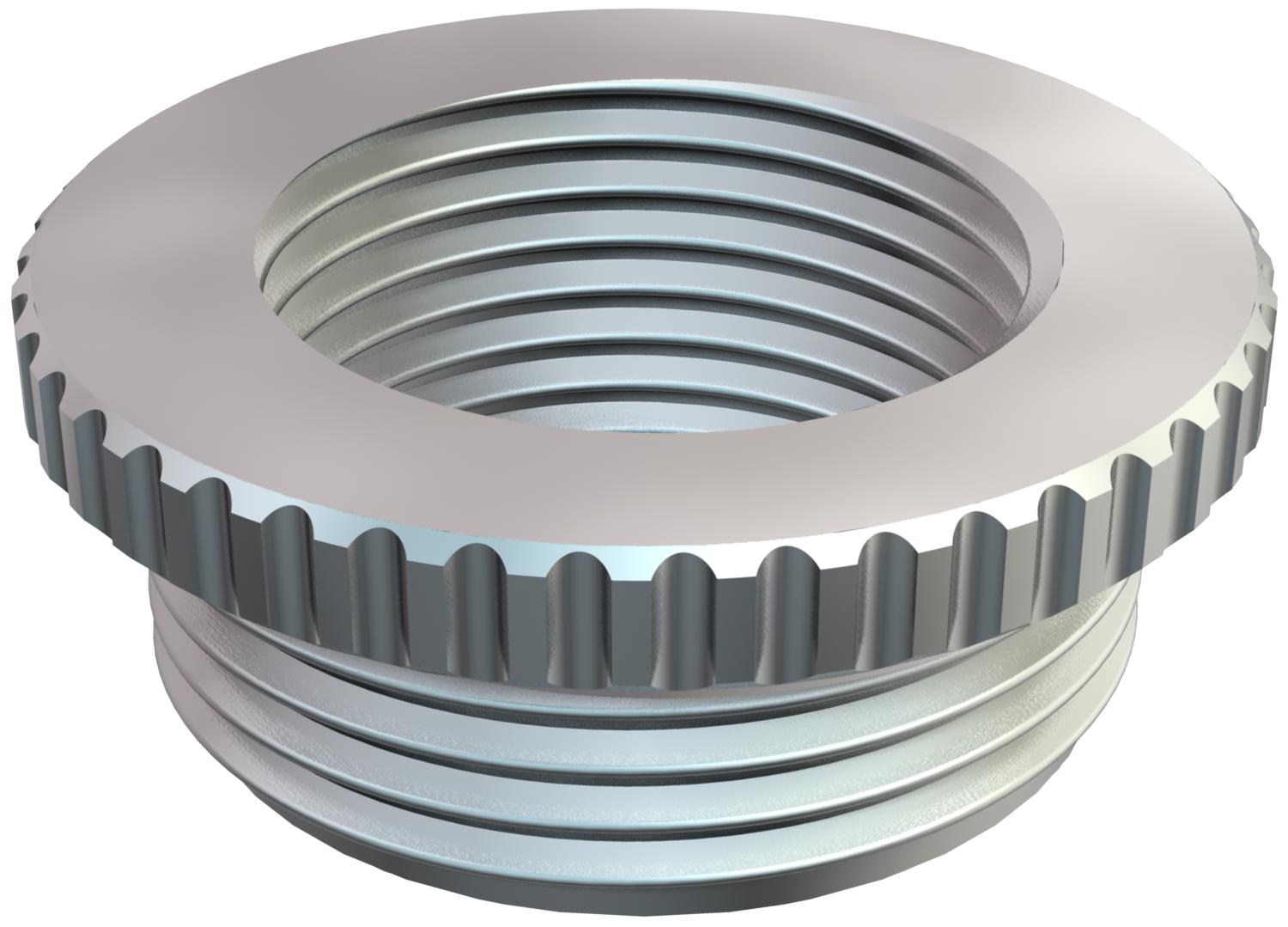

Product descriptionReduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.
* Prices according to DEL notation.
- Technical data
-
Technical data

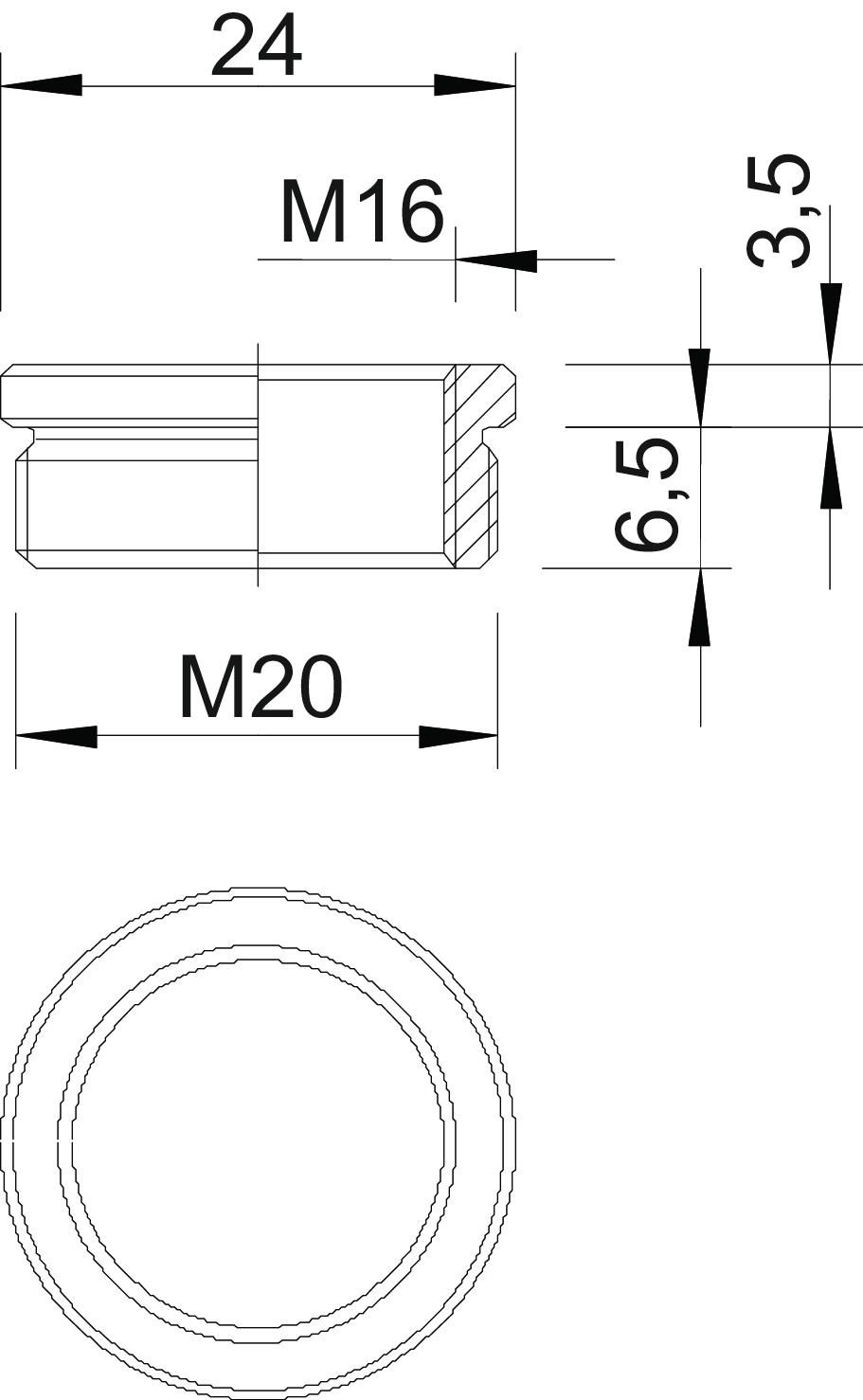

Dimension M20-M16 Dimension D 24 mm Dimension L1 6,5 mm Dimension L2 3,5 mm explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 20 Thread dimension, metric, internal 16 Thread length 6,5 mm Thread type: External thread Metric Thread type: Internal thread Metric - All types
-
All types
- Downloads
-
Data sheet 167 R MS M20-16 / 2089521 , 0.21MB , pdfEU declaration of conformity 167 R MS M20-16 / 2089521 , 0.05MB , pdfREACH Declaration of conformity 167 R MS M20-16 / 2089521 , 0.12MB , pdfRoHS Declaration of conformity 167 R MS M20-16 / 2089521 , 0.12MB , pdf
