Product description

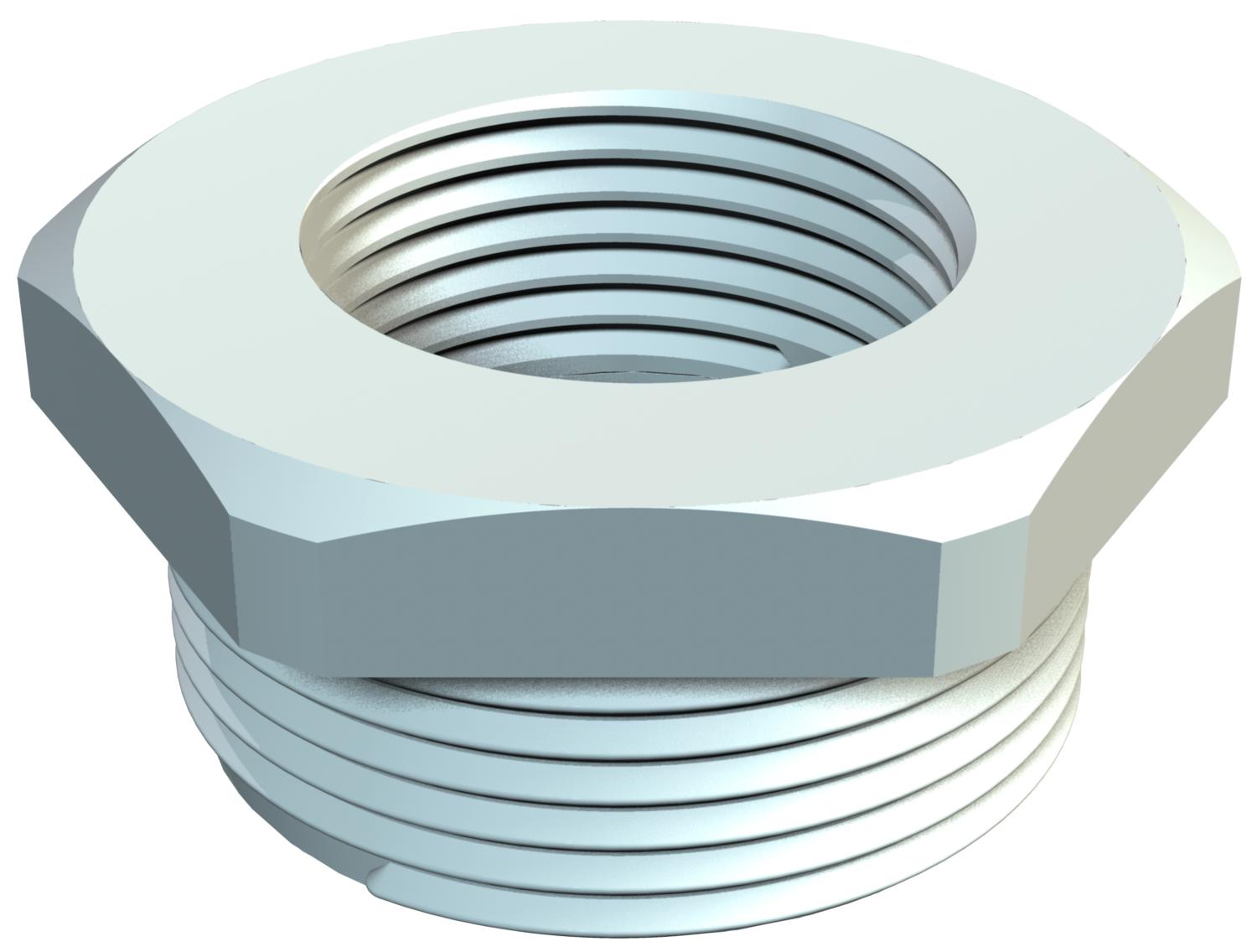

Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data

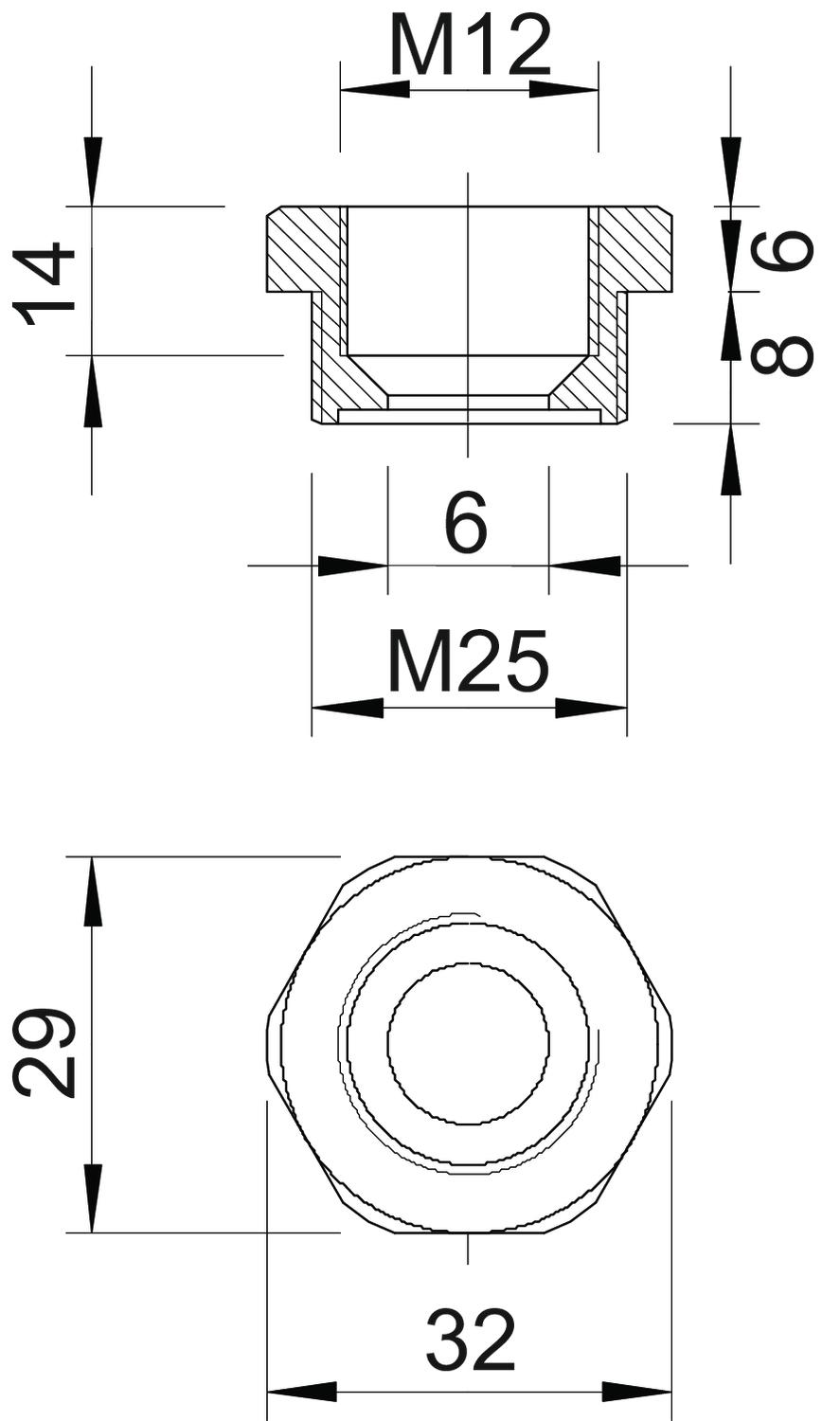

Colour Light grey; RAL 7035 Dimension M25-M12 Dimension E 32 mm Dimension L 14 mm Dimension L1 8 mm Dimension L2 6 mm Dimension L3 14 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, metric, external 25 Thread dimension, metric, internal 12 Thread length 8 mm Thread type: External thread Metric Thread type: Internal thread Metric WAF 29 - All types
-
All types
- Downloads
-
Data sheet 107 R M25-12 PA / 2030624 , 0.20MB , pdfREACH Declaration of conformity 107 R M25-12 PA / 2030624 , 0.12MB , pdfRoHS Declaration of conformity 107 R M25-12 PA / 2030624 , 0.12MB , pdf
