Reduction, metric thread

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

Product description

Product description

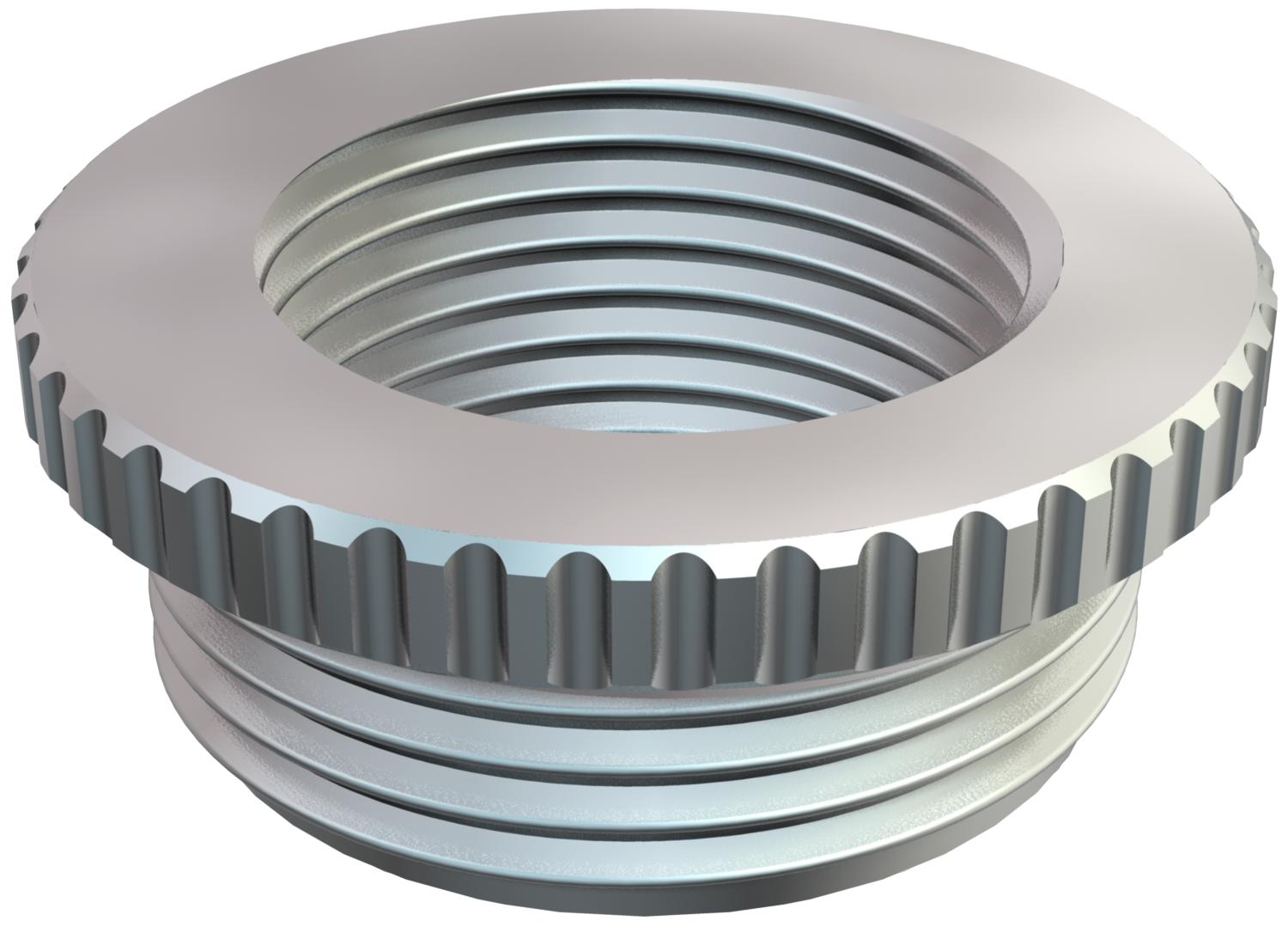

Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.
* Prices according to DEL notation.

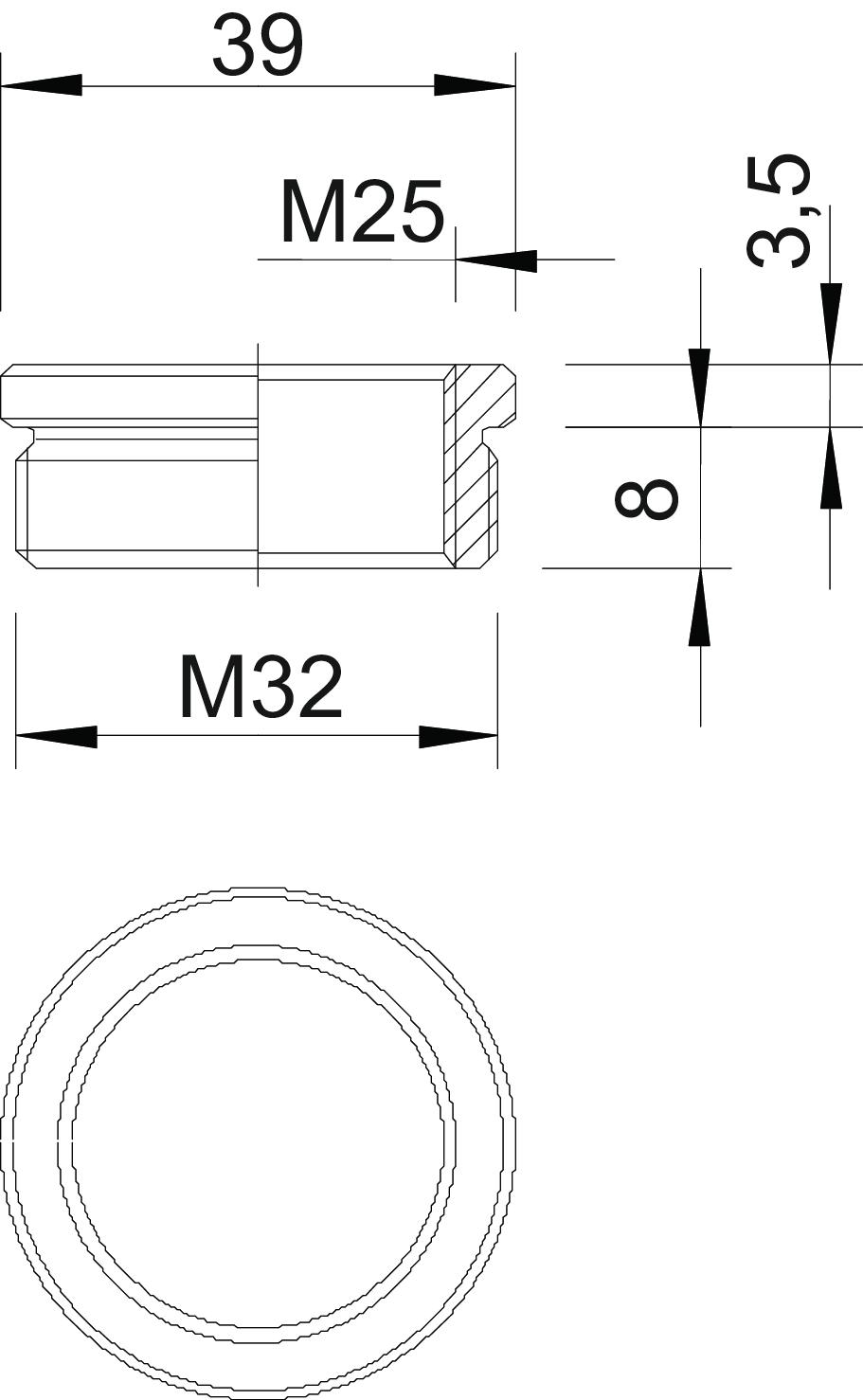

Technical data

Surface	Nickel-plated
Thread dimension, metric, external	32
Thread dimension, metric, internal	25
Thread length	8 mm
Thread type: External thread	Metric
Thread type: Internal thread	Metric

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	Item no.	Quantity	SSU
167 R MS M16-12	16	12	2089505	piece	50 piece
167 R MS M20-12	20	12	2089513	piece	50 piece
167 R MS M20-16	20	16	2089521	piece	50 piece
167 R MS M25-16	25	16	2089548	piece	50 piece
167 R MS M25-20	25	20	2089556	piece	50 piece
167 R MS M32-20	32	20	2089564	piece	50 piece
167 R MS M32-25	32	25	2089572	piece	50 piece
167 R MS M40-25	40	25	2089580	piece	25 piece
167 R MS M40-32	40	32	2089599	piece	25 piece
167 R MS M50-32	50	32	2089602	piece	25 piece
167 R MS M50-40	50	40	2089610	piece	25 piece
167 R MS M63-40	63	40	2089629	piece	10 piece
167 R MS M63-50	63	50	2089637	piece	10 piece
