- Product description
-
Product description

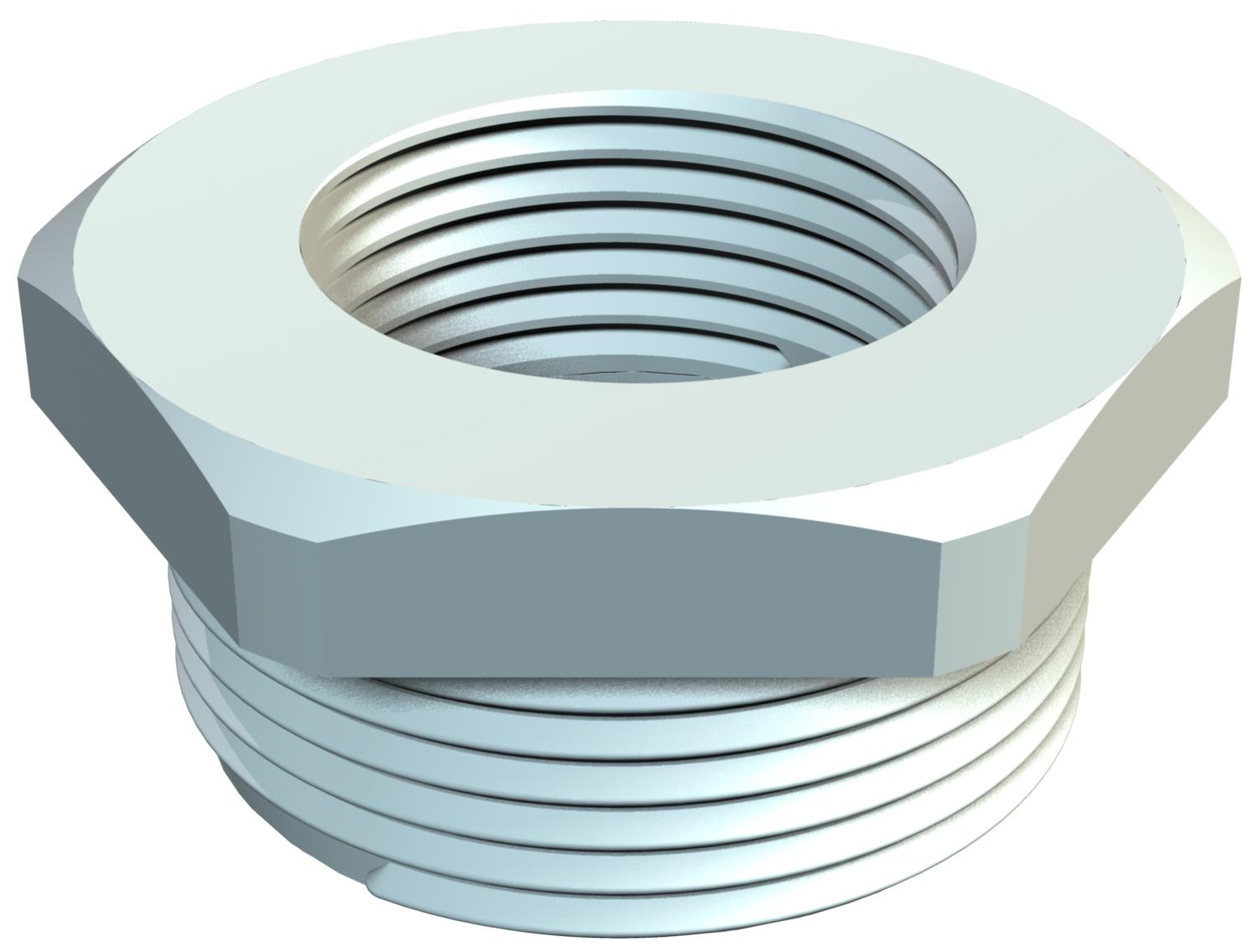

Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data

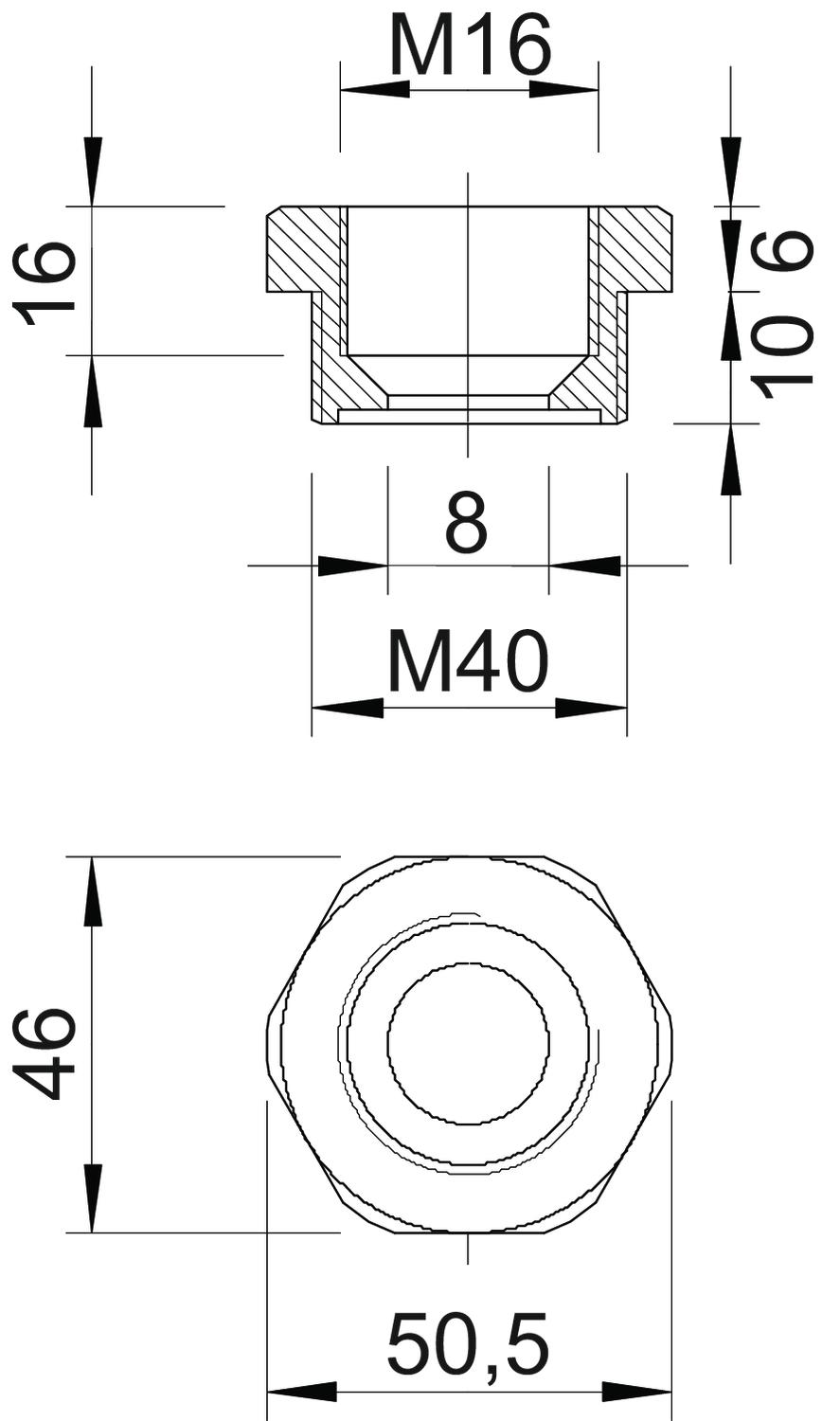

Colour Light grey; RAL 7035 Dimension M40-M16 Dimension E 50,5 mm Dimension L 16 mm Dimension L1 10 mm Dimension L2 6 mm Dimension L3 16 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, metric, external 40 Thread dimension, metric, internal 16 Thread length 10 mm Thread type: External thread Metric Thread type: Internal thread Metric WAF 46 - All types
-
All types
- Downloads
-
Data sheet 107 R M40-16 PA / 2030643 , 0.22MB , pdfREACH Declaration of conformity 107 R M40-16 PA / 2030643 , 0.12MB , pdfRoHS Declaration of conformity 107 R M40-16 PA / 2030643 , 0.12MB , pdf
