- Product description
-
Product description

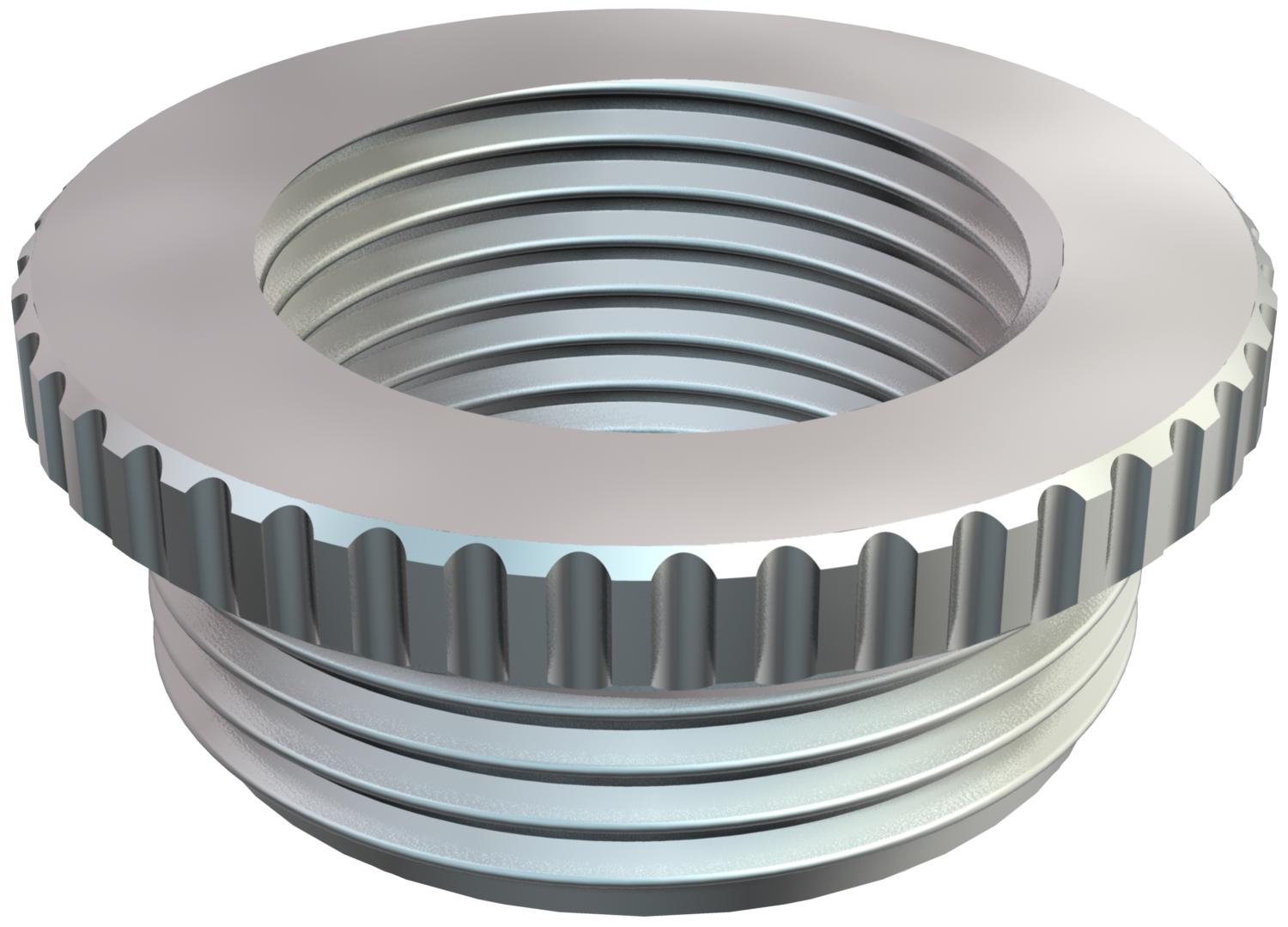

Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.
* Prices according to DEL notation.
- Technical data
-
Technical data

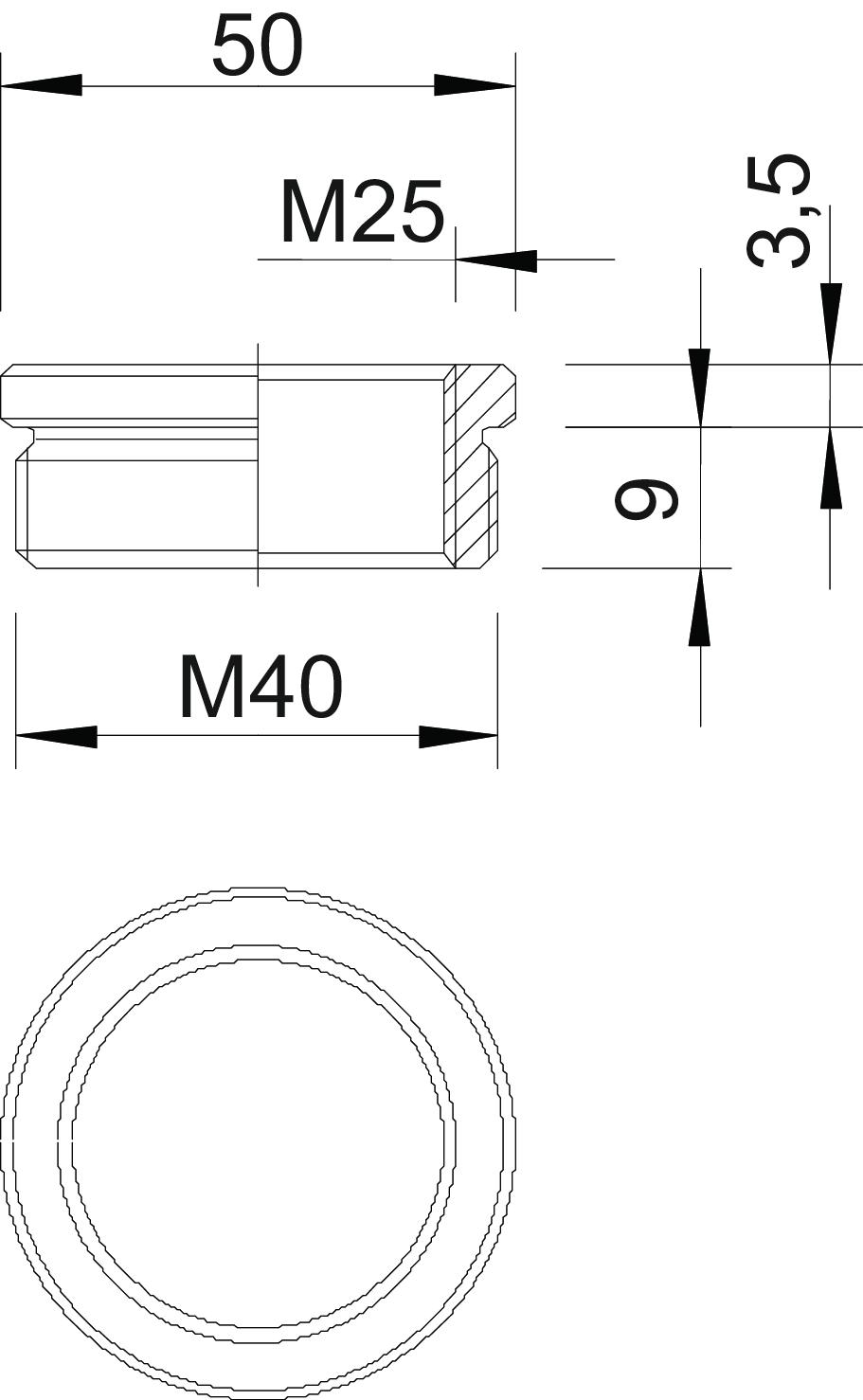

Dimension M40-M25 Dimension D 50 mm Dimension L1 9 mm Dimension L2 3,5 mm explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, metric, external 40 Thread dimension, metric, internal 25 Thread length 6 mm Thread type: External thread Metric Thread type: Internal thread Metric - All types
-
All types
- Downloads
-
Data sheet 167 R MS M40-25 / 2089580 , 0.21MB , pdfDeclaration of conformity 167 R MS M40-25 / 2089580 , 0.05MB , pdfREACH Declaration of conformity 167 R MS M40-25 / 2089580 , 0.12MB , pdfRoHS Declaration of conformity 167 R MS M40-25 / 2089580 , 0.12MB , pdf
