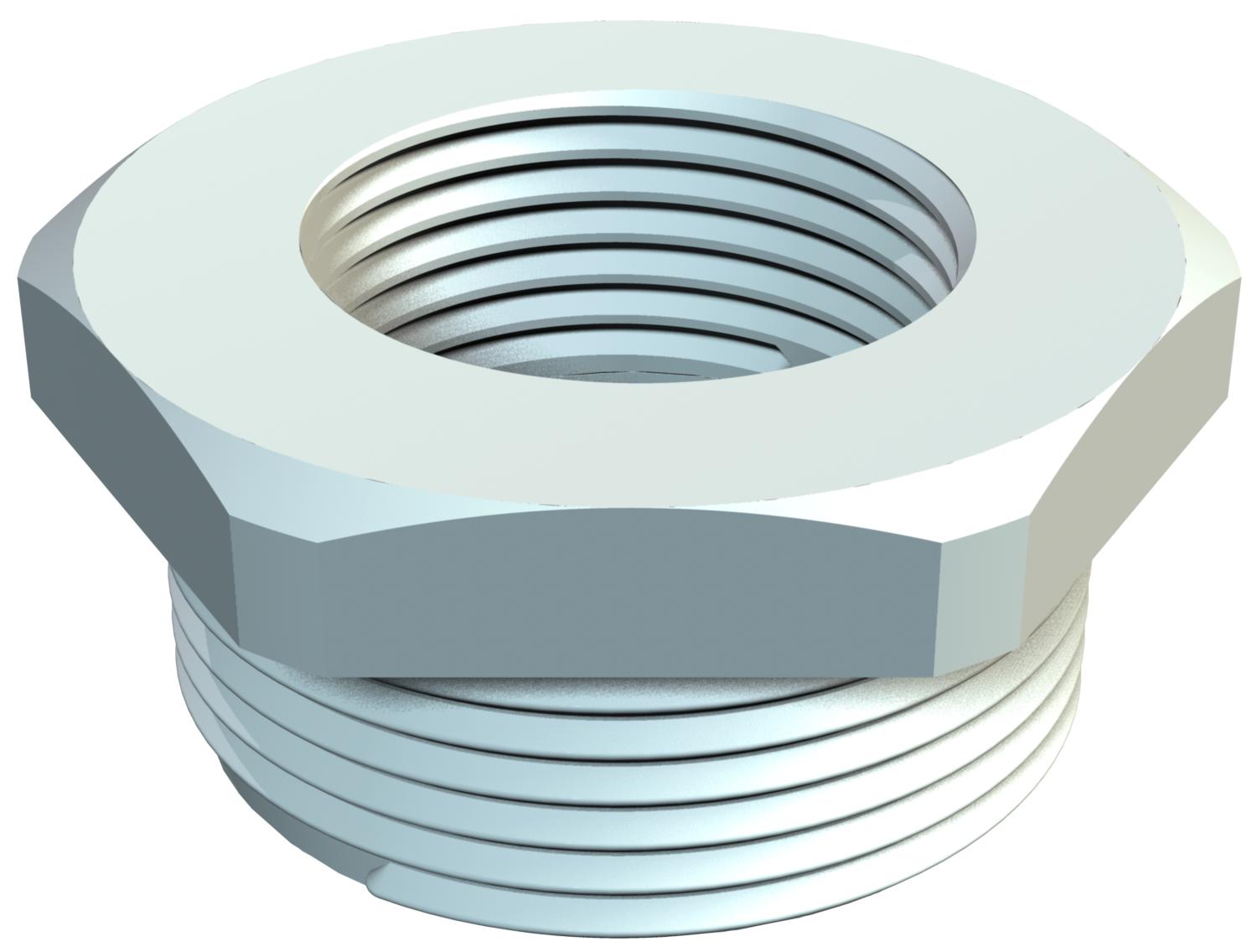

Reduction, metric thread 40 | 32 | | | 46

Reduction, metric thread

Item no. 2030652 | EAN 4012195402794

Item no. / Types

Thread dimension, metric, external

Thread dimension, metric, internal

WAF

Product description

Product description

Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Technical data

Technical data

Colour	Light grey; RAL 7035

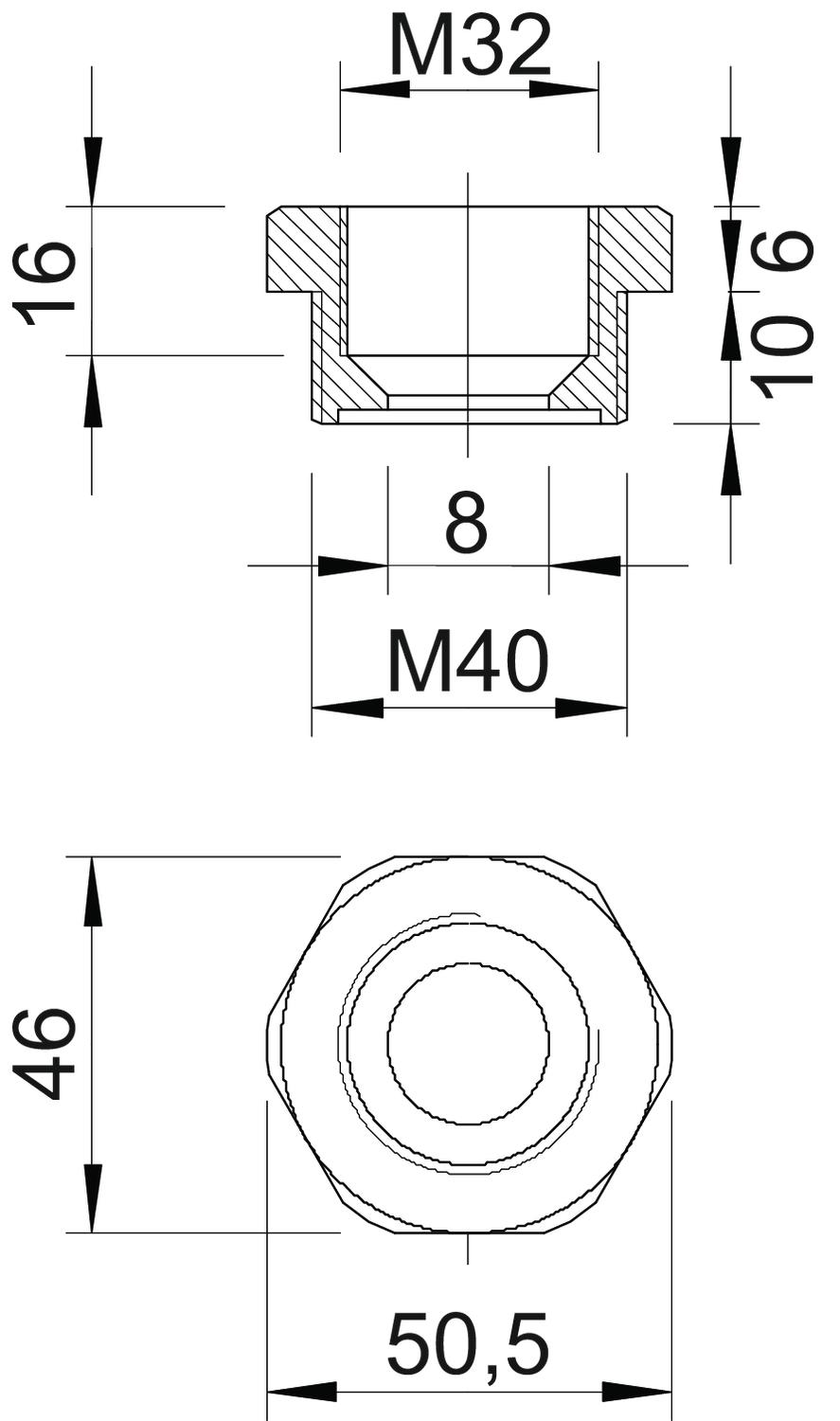

Dimension	M40-M32
Dimension E	50,5 mm
Dimension L	16 mm
Dimension L1	10 mm
Dimension L2	6 mm
Dimension L3	16 mm
explosion-proof	no
Halogen-free	yes

Material	Polyamide
Nickel-plated	no
Thread dimension, metric, external	40
Thread dimension, metric, internal	32
Thread length	10 mm
Thread type: External thread	Metric
Thread type: Internal thread	Metric
WAF	46

All types

All types

Types	Thread dimension, metric, external	Thread dimension, metric, internal	WAF	Item no.	Quantity	SSU
107 R M20-12 PA	20	12	24	2030616	piece	100 piece
107 R M20-16 PA	20	16	24	2030619	piece	100 piece
107 R M25-12 PA	25	12	29	2030624	piece	100 piece
107 R M25-16 PA	25	16	29	2030626	piece	100 piece
107 R M25-20 PA	25	20	29	2030628	piece	100 piece
107 R M32-12 PA	32	12	36	2030632	piece	50 piece
107 R M32-16 PA	32	16	36	2030634	piece	50 piece
107 R M32-20 PA	32	20	36	2030637	piece	50 piece
107 R M32-25 PA	32	25	36	2030640	piece	50 piece
107 R M40-16 PA	40	16	46	2030643	piece	50 piece
107 R M40-20 PA	40	20	46	2030646	piece	50 piece
107 R M40-25 PA	40	25	46	2030649	piece	50 piece
107 R M40-32 PA	40	32	46	2030652	piece	50 piece
107 R M50-20 PA	50	20	55	2030655	piece	25 piece
107 R M50-25 PA	50	25	55	2030659	piece	25 piece
107 R M50-32 PA	50	32	55	2030661	piece	25 piece
107 R M50-40 PA	50	40	55	2030664	piece	25 piece
107 R M63-25 PA	63	25	68	2030667	piece	25 piece
107 R M63-32 PA	63	32	68	2030670	piece	25 piece
107 R M63-40 PA	63	40	68	2030673	piece	25 piece
107 R M63-50 PA	63	50	68	2030675	piece	25 piece
