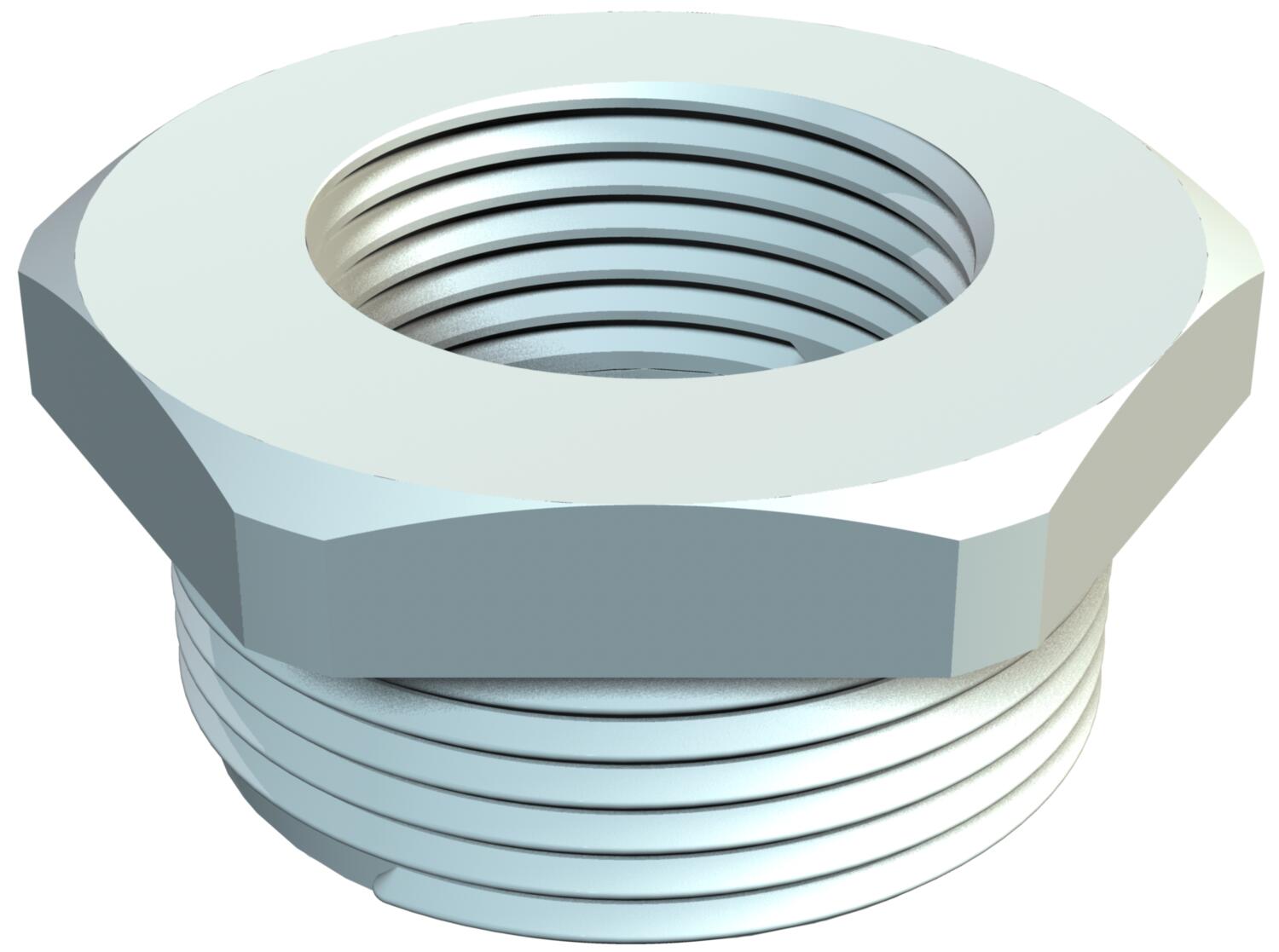

Reduction, PG thread

Item no. 2030705 | EAN 4012195824350

Product description

Product description

Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

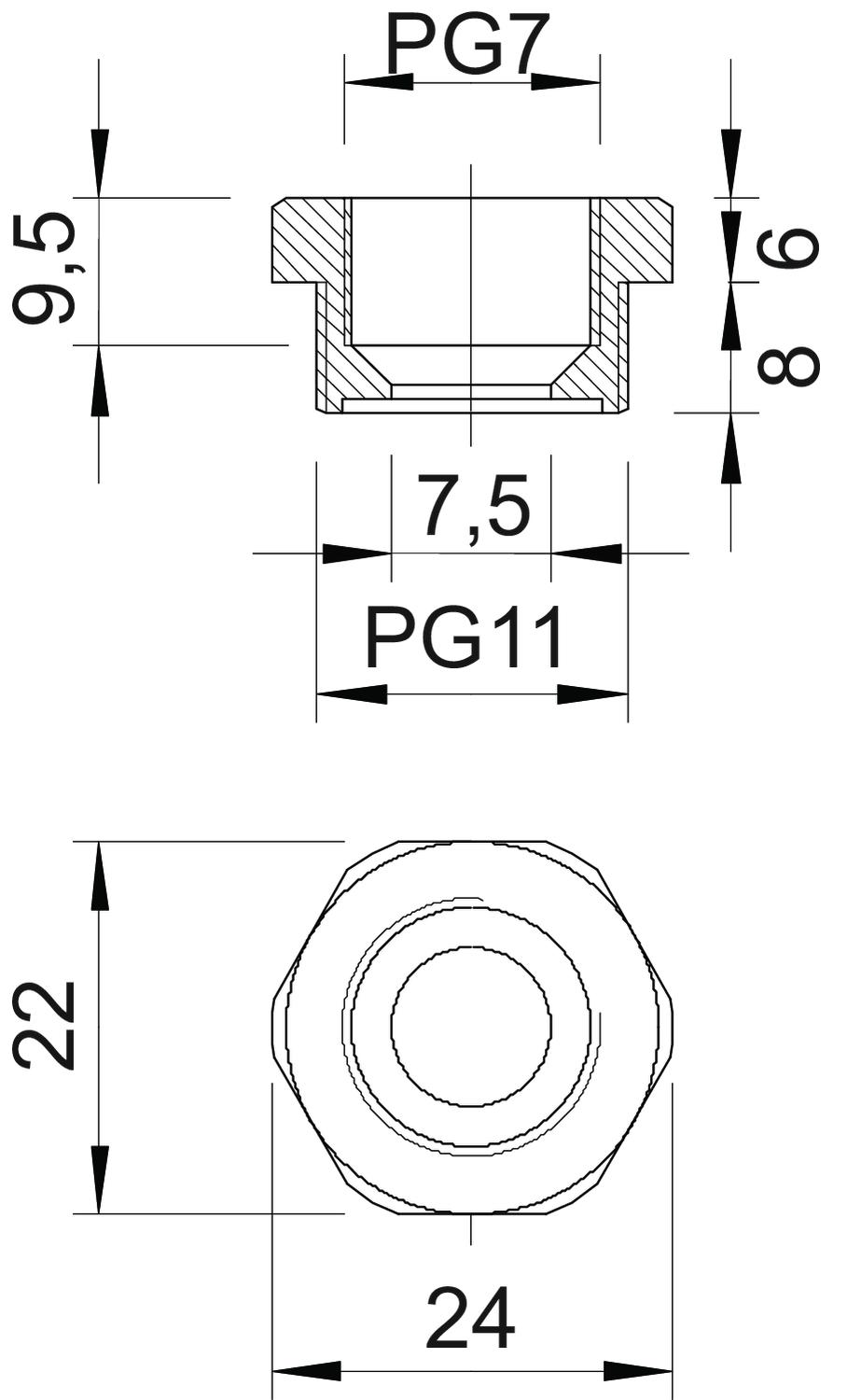

Dimension PG11-PG7
Dimension D 7,5 mm
Dimension E 24 mm
Dimension L1 8 mm
Dimension L2 6 mm
Dimension L3 9,5 mm
explosion-proof no
Halogen-free yes
Material Polyamide
Nickel-plated no
Thread dimension, PG, external 11
Thread dimension, PG, internal 7
Thread length 8 mm
Thread type: External thread PG
Thread type: Internal thread PG
WAF 22
All types

All types

Types Thread dimension, PG, external Thread dimension, PG, internal WAF Item no. Quantity SSU
107 R PG11- 7 PA 11 7 22 2030705
50 piece
107 R PG13- 9 PA 13.5 9 24 2030713
50 piece
107 R PG16- 9 PA 16 9 27 2030748
50 piece
107 R PG16-11 PA 16 11 27 2030756
50 piece
107 R PG21-11 PA 21 11 32 2030764
50 piece
107 R PG21-13 PA 21 13.5 32 2030772
50 piece
107 R PG21-16 PA 21 16 32 2030780
50 piece
107 R PG29-16 PA 29 16 40 2030799
50 piece
107 R PG29-21 PA 29 21 39 2030802
25 piece
107 R PG36-29 PA 36 29 50 2030810
25 piece
107 R PG36-21 PA 36 21 50 2030829
25 piece
107 R PG42-29 PA 42 29 55 2030837
25 piece
