- Product description
-

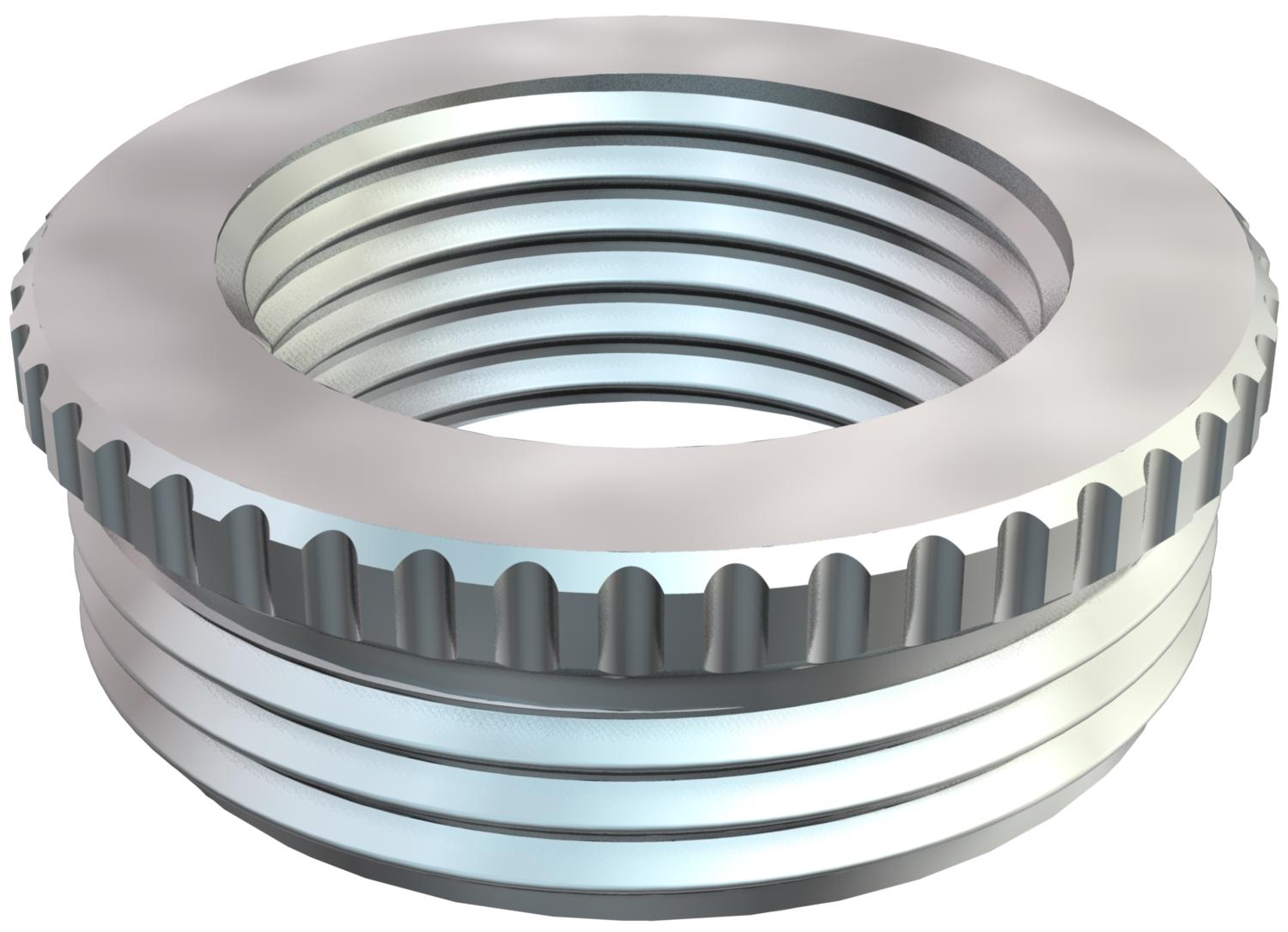

Product descriptionReduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.
* Prices according to DEL notation.
- Technical data
-
Technical data

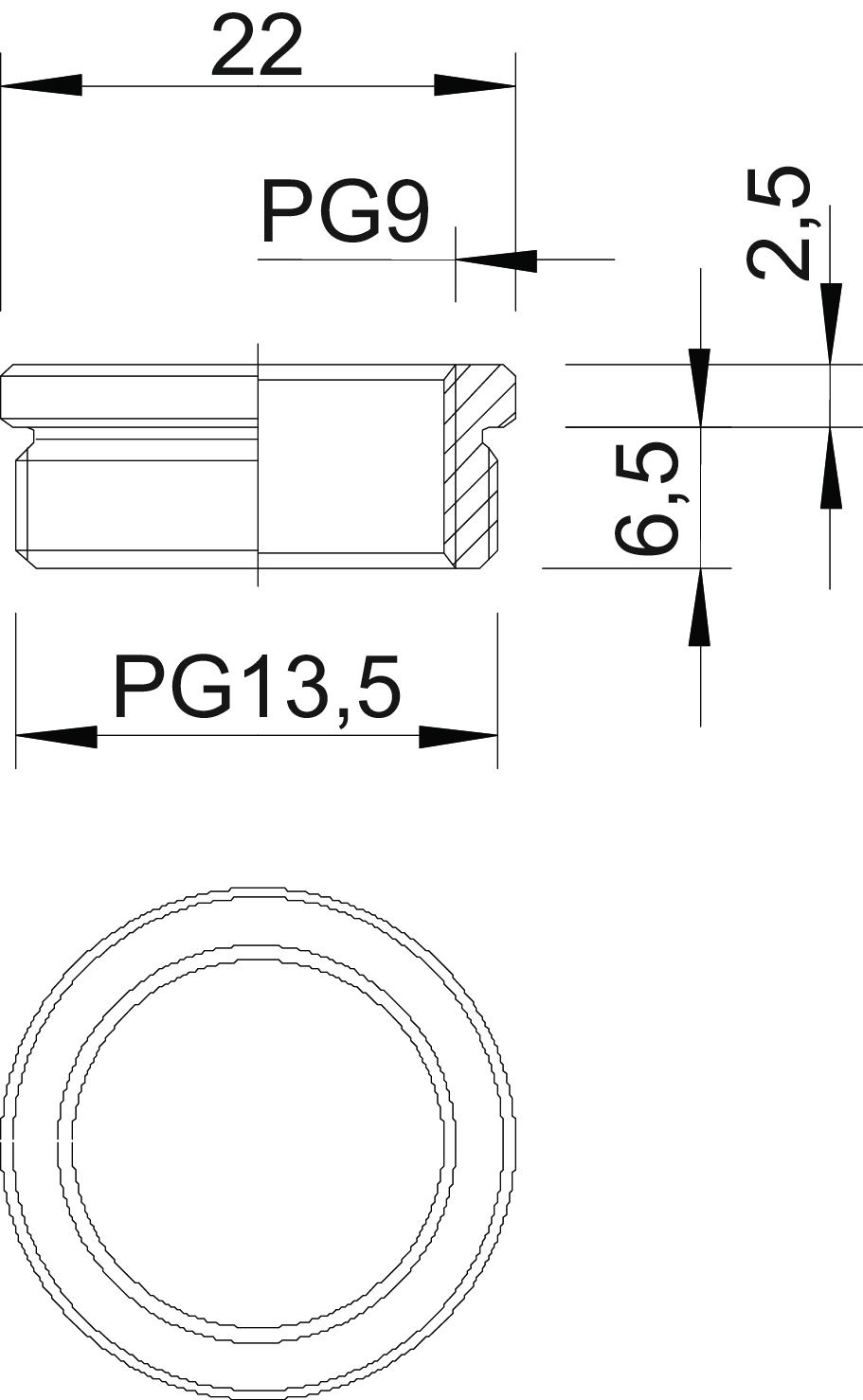

Dimension PG13,5-PG9 Dimension D 22 mm Dimension L1 6,5 mm Dimension L2 2,5 mm explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, PG, external 13,5 Thread dimension, PG, internal 7 Thread length 6,5 mm Thread type: External thread PG Thread type: Internal thread PG - All types
-
All types
- Downloads
-
Data sheet 167 R MS PG13-9 / 2089114 , 0.22MB , pdfEU declaration of conformity 167 R MS PG13-9 / 2089114 , 0.05MB , pdfREACH Declaration of conformity 167 R MS PG13-9 / 2089114 , 0.12MB , pdfRoHS Declaration of conformity 167 R MS PG13-9 / 2089114 , 0.12MB , pdf
