Product description

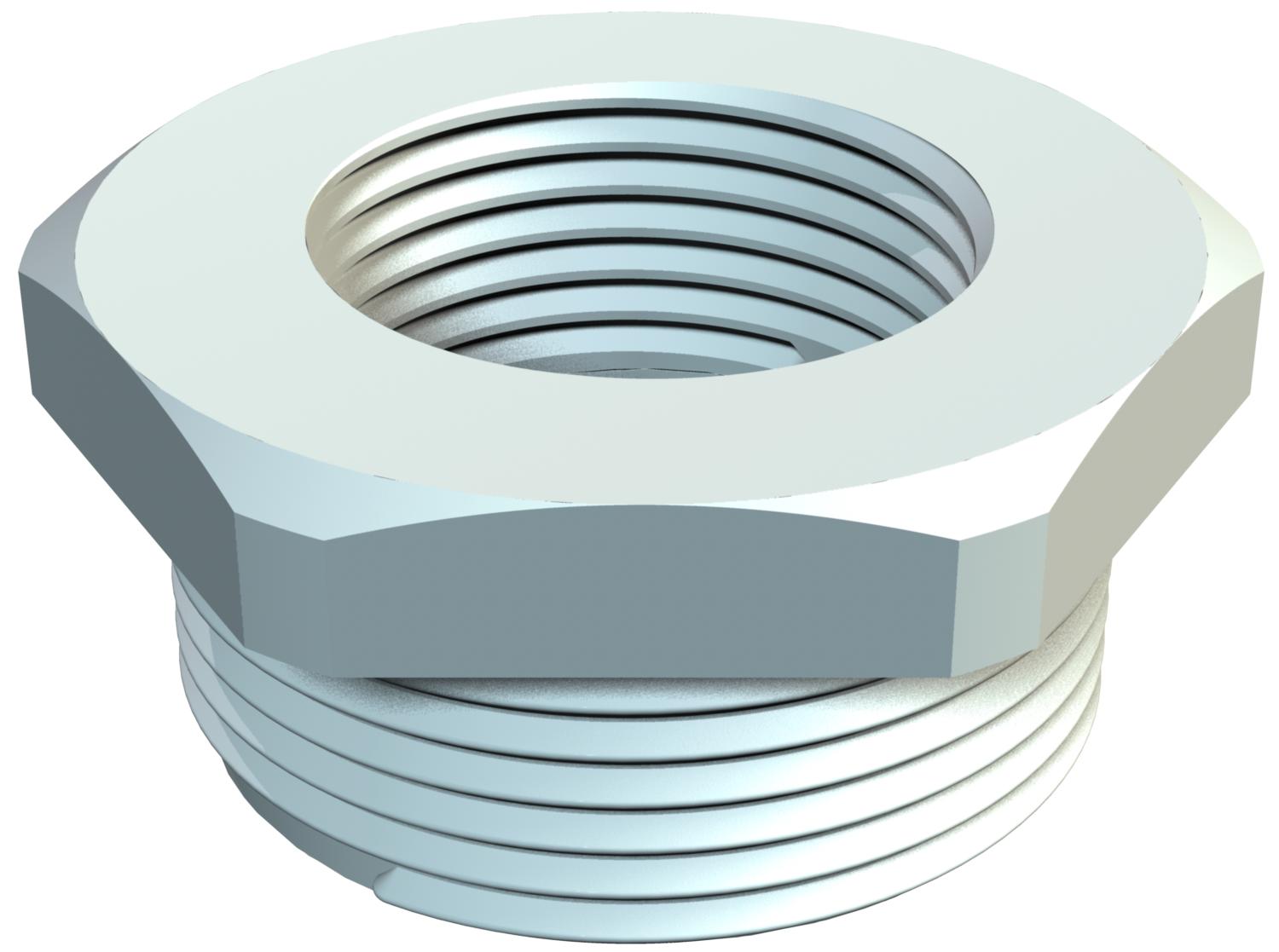

Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data

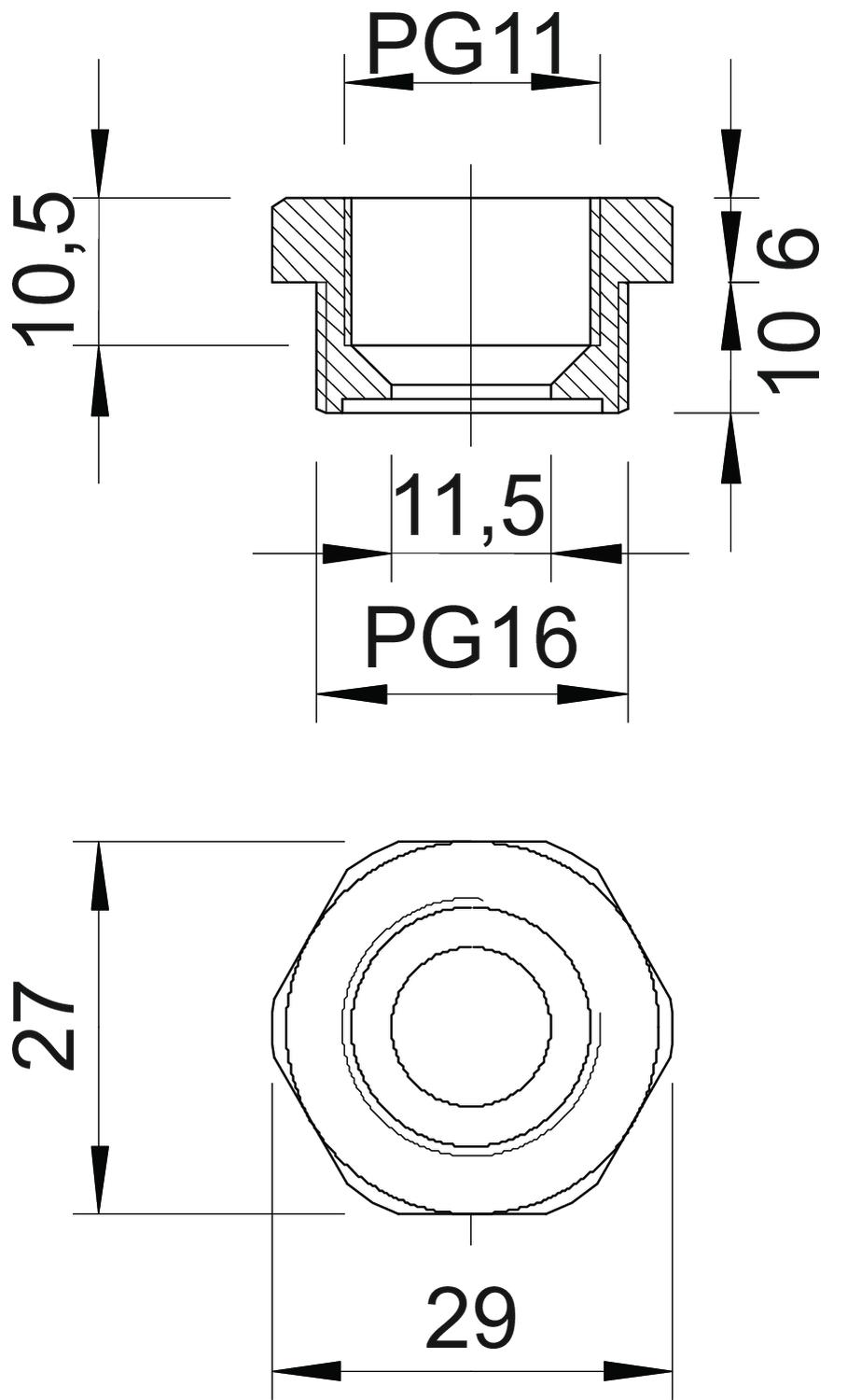

Colour Light grey; RAL 7035 Dimension PG16-PG11 Dimension D 11,5 mm Dimension E 29 mm Dimension L1 10 mm Dimension L2 6 mm Dimension L3 10,5 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, PG, external 16 Thread dimension, PG, internal 11 Thread length 10 mm Thread type: External thread PG Thread type: Internal thread PG WAF 27 - All types
-
All types
- Downloads
-
Data sheet 107 R PG16-11 PA / 2030756 , 0.20MB , pdf
