- Product description
-
Product description

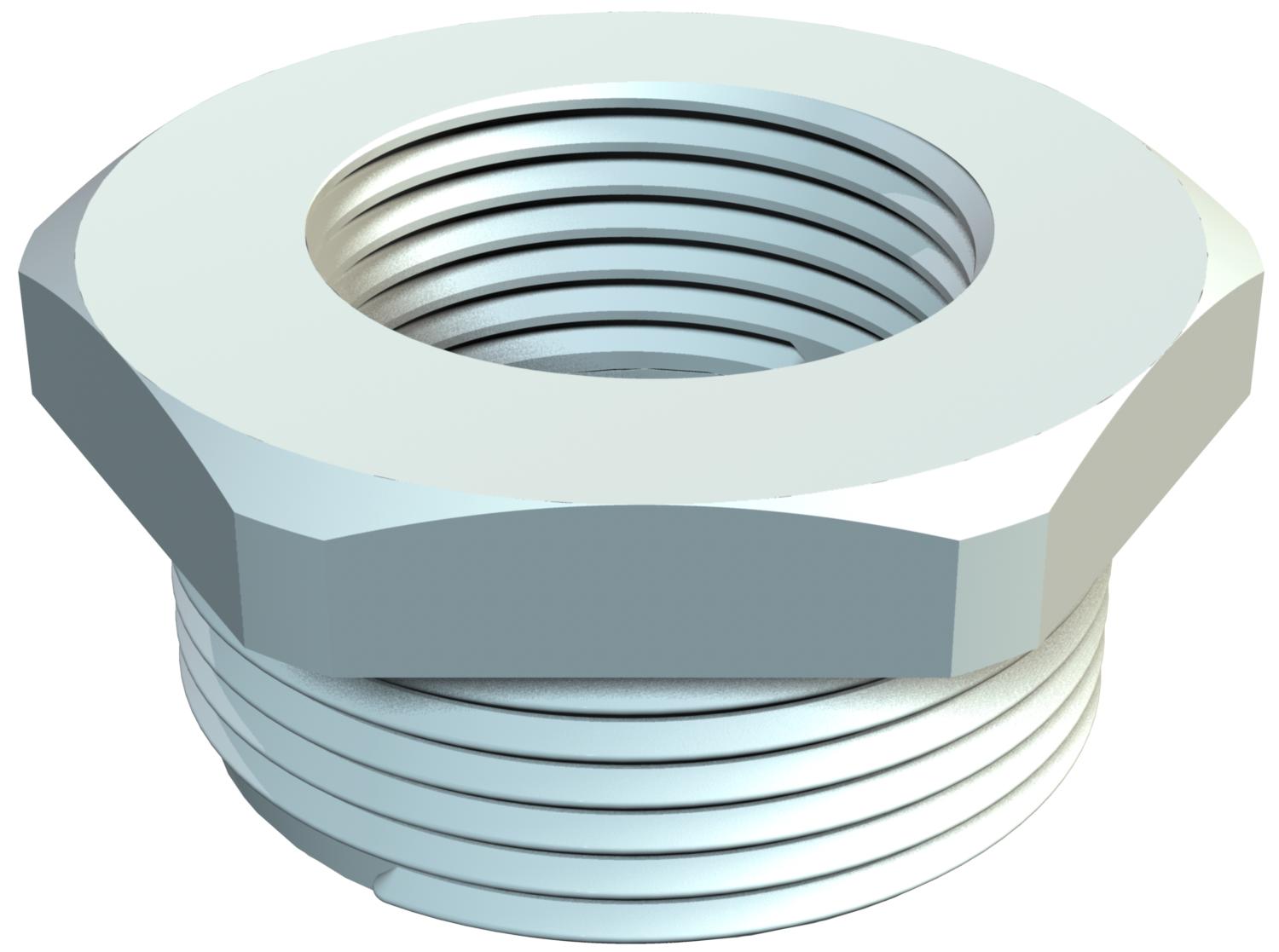

Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data

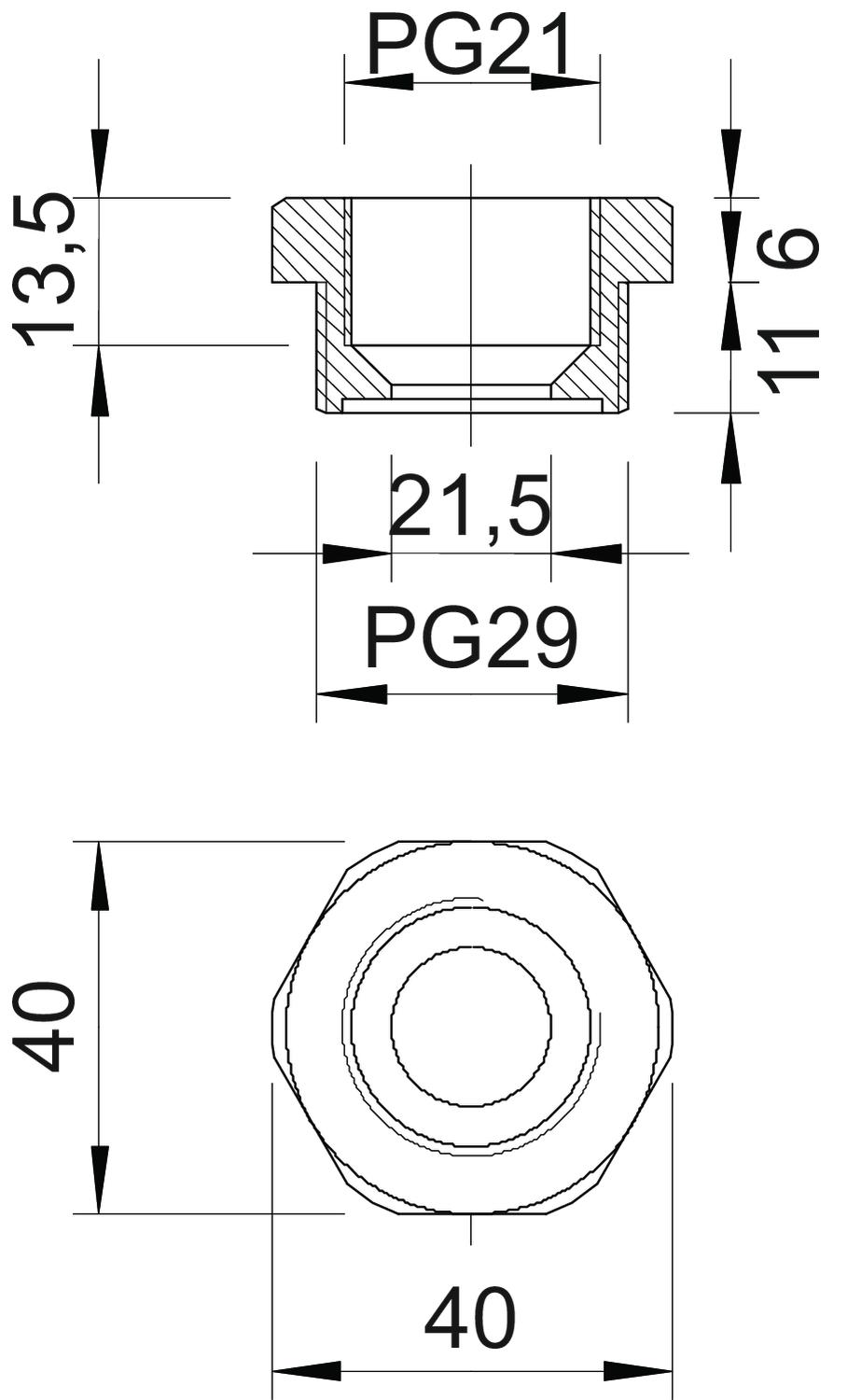

Colour Light grey; RAL 7035 Dimension PG29-PG21 Dimension D 21,5 mm Dimension E 40 mm Dimension L1 11 mm Dimension L2 6 mm Dimension L3 13,5 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, PG, external 29 Thread dimension, PG, internal 21 Thread length 11 mm Thread type: External thread PG Thread type: Internal thread PG WAF 39 - All types
-
All types
- Downloads
-
Data sheet 107 R PG29-21 PA / 2030802 , 0.20MB , pdf
English
