- Product description
-
Product description
Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data

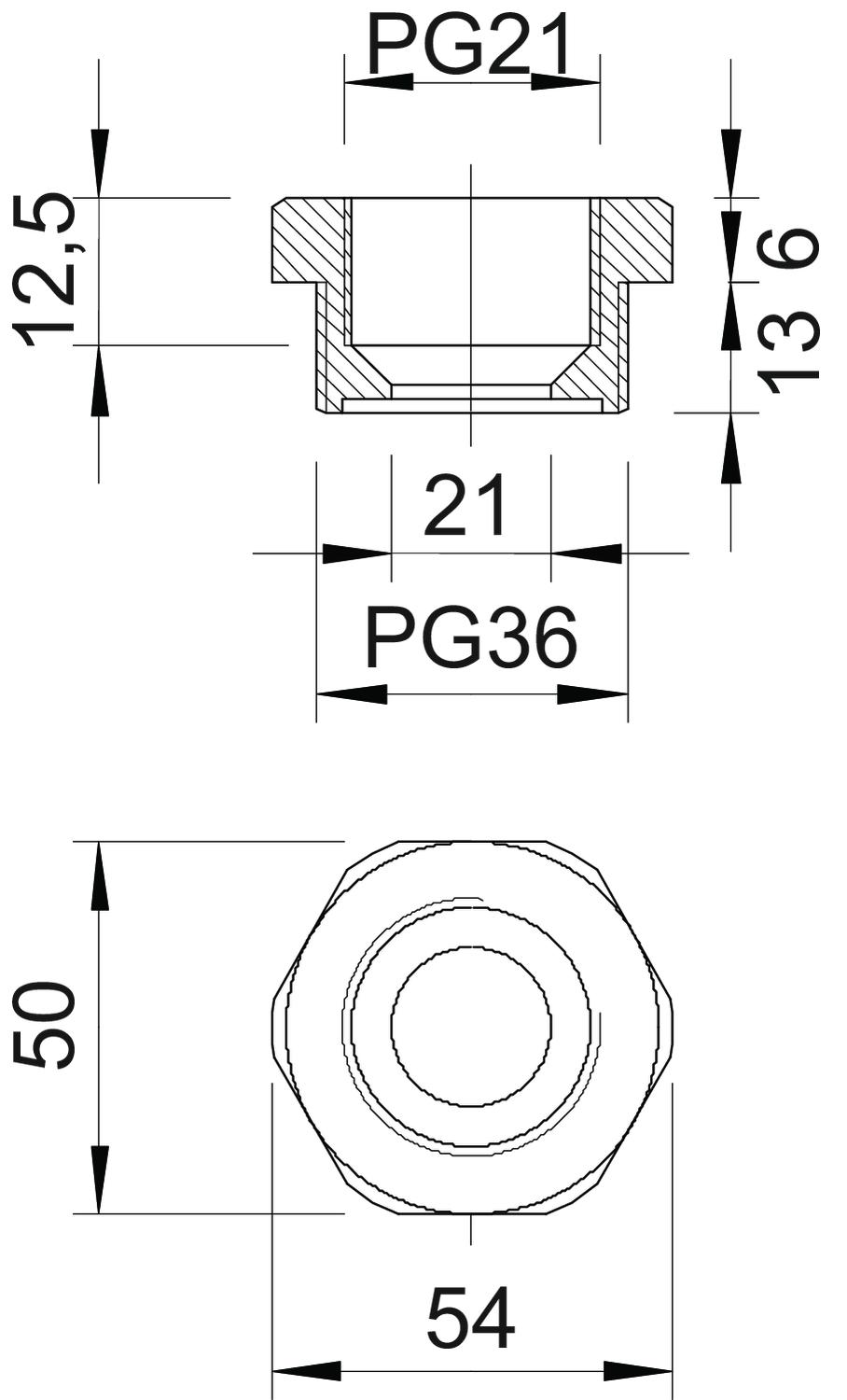

Colour Light grey; RAL 7035 Dimension PG36-PG21 Dimension D 21 mm Dimension E 54 mm Dimension L1 13 mm Dimension L2 6 mm Dimension L3 12,5 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, PG, external 36 Thread dimension, PG, internal 21 Thread length 13 mm Thread type: External thread PG Thread type: Internal thread PG WAF 50 - All types
-
All types
- Downloads
-
Data sheet 107 R PG36-21 PA / 2030829 , 0.19MB , pdf
English
