Product description

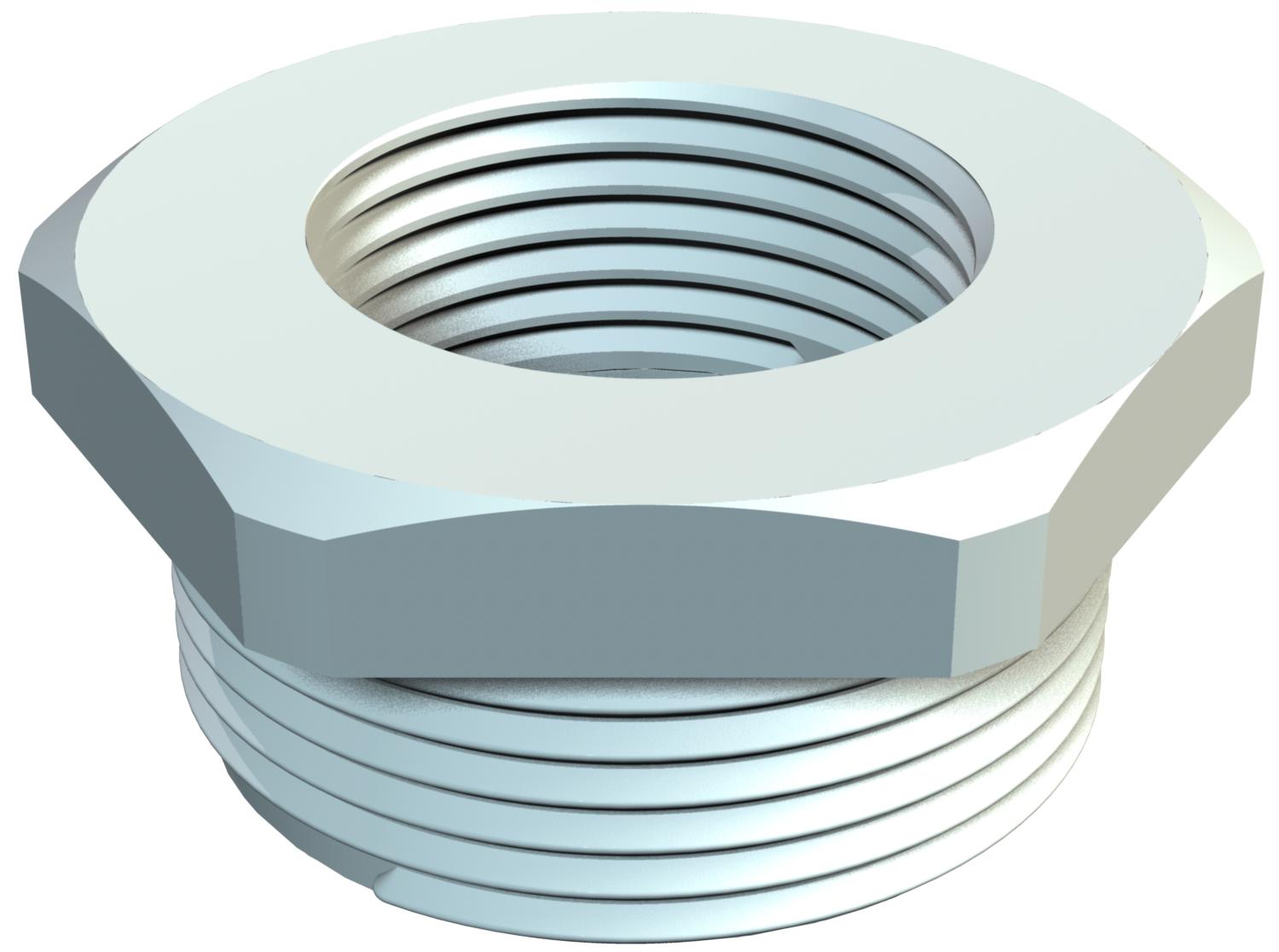

Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension PG36-PG29 Dimension D 28,5 mm Dimension E 54 mm Dimension L1 18 mm Dimension L2 6 mm Dimension L3 19,5 mm explosion-proof no Halogen-free yes Material Polyamide Nickel-plated no Thread dimension, PG, external 36 Thread dimension, PG, internal 29 Thread length 18 mm Thread type: External thread PG Thread type: Internal thread PG WAF 50 - All types
-
All types
- Downloads
-
Data sheet 107 R PG36-29 PA / 2030810 , 0.22MB , pdf
