- Product description
-

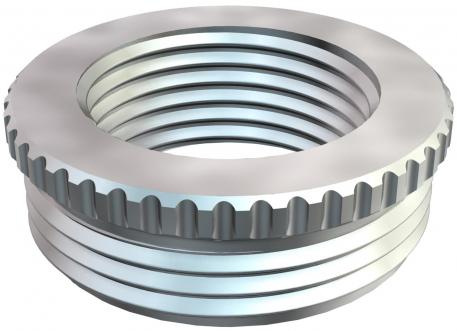

Product descriptionReduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.
* Prices according to DEL notation.
- Technical data
-
Technical data

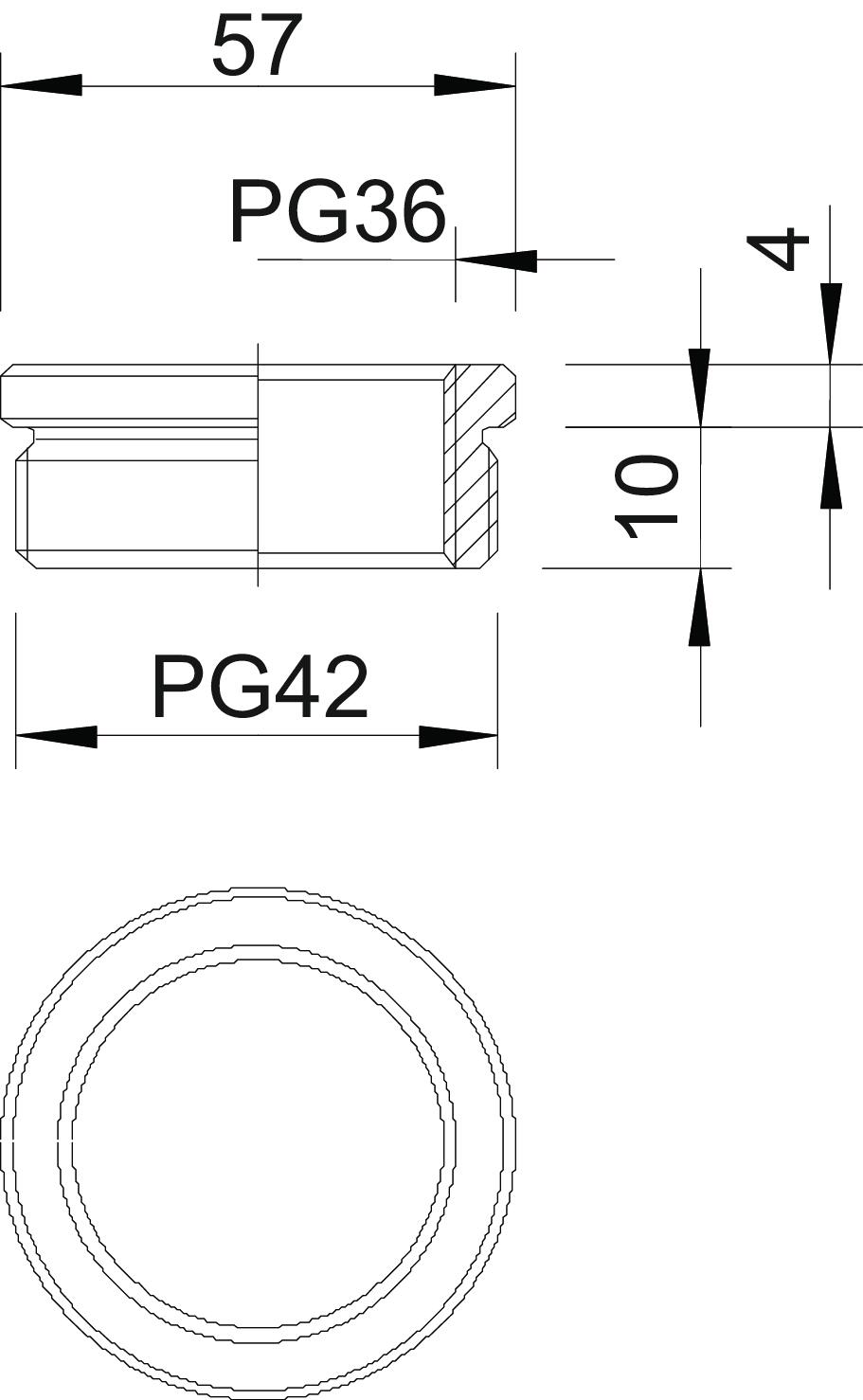

Dimension PG42-PG36 Dimension D 57 mm Dimension L1 10 mm Dimension L2 4 mm explosion-proof no Material Brass Nickel-plated yes Surface Nickel-plated Thread dimension, PG, external 42 Thread dimension, PG, internal 36 Thread length 10 mm Thread type: External thread PG Thread type: Internal thread PG - All types
-
All types
- Downloads
-
Data sheet 167 R MS PG42-36 / 2089408 , 0.20MB , pdfEU declaration of conformity 167 R MS PG42-36 / 2089408 , 0.05MB , pdfREACH Declaration of conformity 167 R MS PG42-36 / 2089408 , 0.12MB , pdfRoHS Declaration of conformity 167 R MS PG42-36 / 2089408 , 0.12MB , pdf
