Reduction, PG thread

Item no. 2089025 | EAN 4012195192732

Product description

Product description

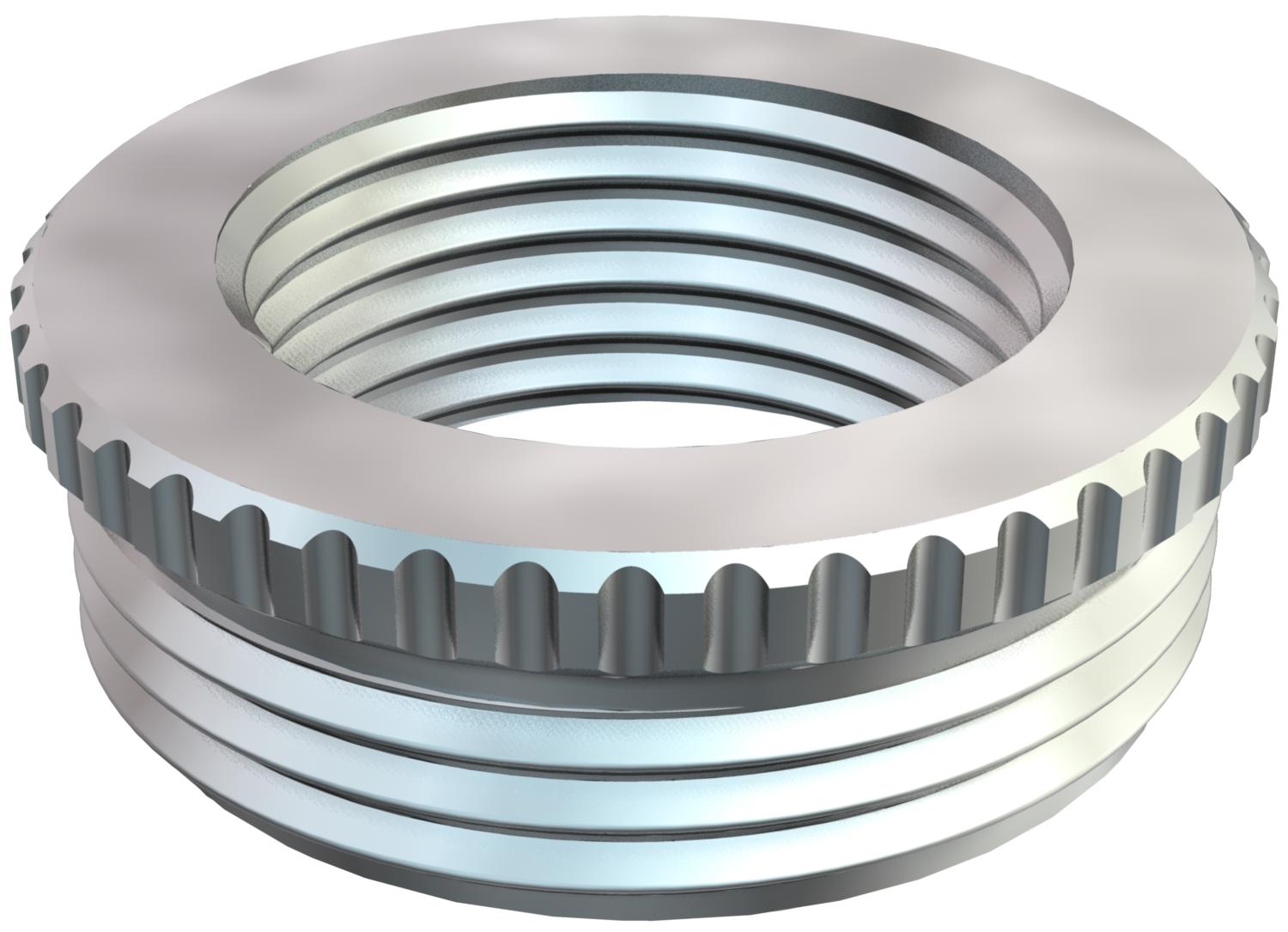

Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.
* Prices according to DEL notation.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

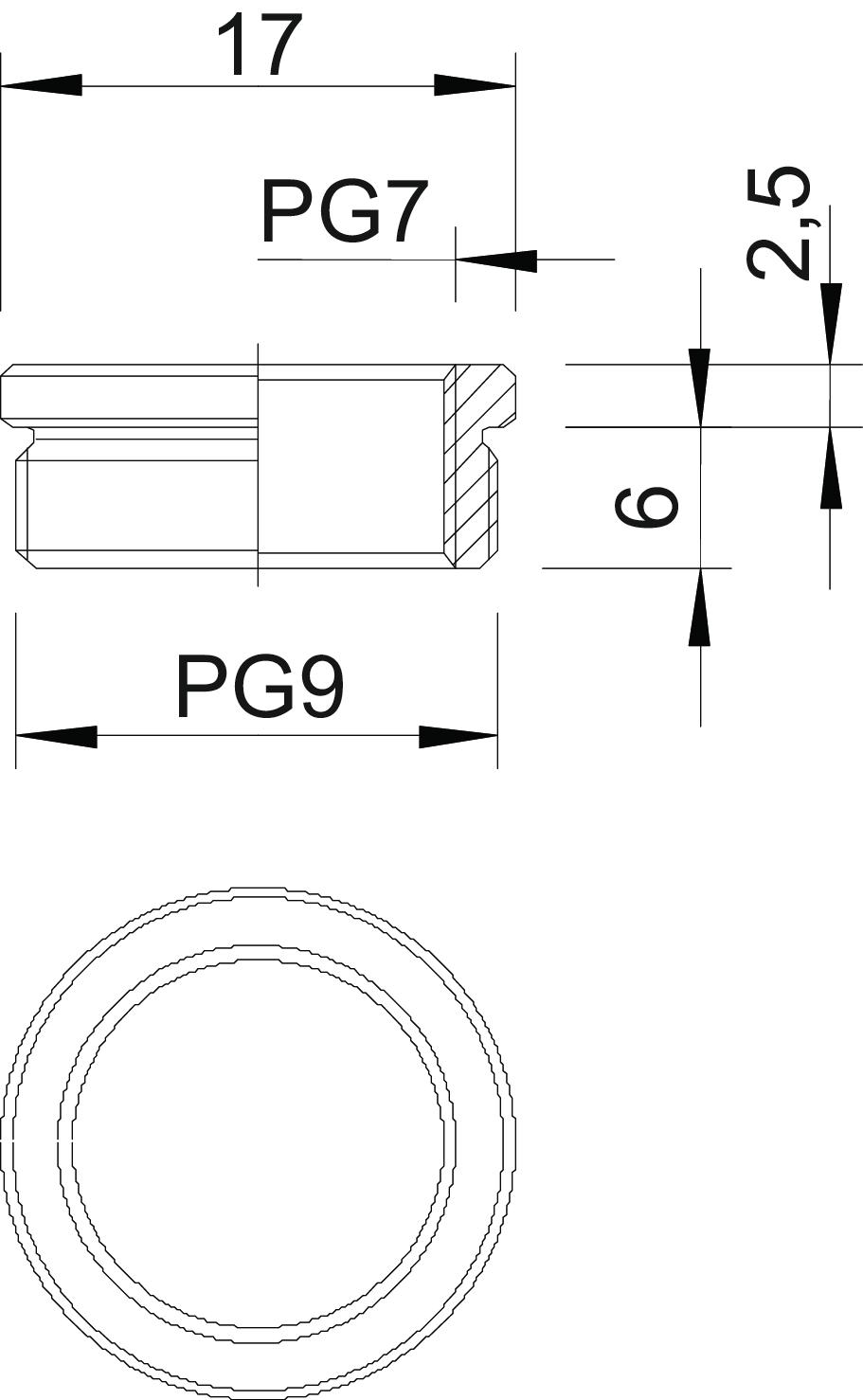

Dimension PG9-PG7
Dimension D 17 mm
Dimension L1 6 mm
Dimension L2 2,5 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, PG, external 9
Thread dimension, PG, internal 7
Thread length 6 mm
Thread type: External thread PG
Thread type: Internal thread PG
All types

All types

Types Thread dimension, PG, external Thread dimension, PG, internal Item no. Quantity SSU
167 R MS PG9-7 9 7 2089025
50 piece
167 R MS PG11-7 11 7 2089041
50 piece
167 R MS PG11-9 11 9 2089076
50 piece
167 R MS PG13-7 13.5 7 2089092
50 piece
167 R MS PG13-9 13.5 7 2089114
50 piece
167 R MS PG13-11 13.5 11 2089130
50 piece
167 R MS PG16-9 16 9 2089157
50 piece
167 R MS PG16-11 16 11 2089173
50 piece
167 R MS PG16-13 16 13.5 2089203
50 piece
167 R MS PG21-11 21 11 2089238
50 piece
167 R MS PG21-13 21 13.5 2089254
50 piece
167 R MS PG21-16 21 16 2089270
50 piece
167 R MS PG29-16 29 16 2089297
50 piece
167 R MS PG29-21 29 21 2089319
50 piece
167 R MS PG36-21 36 21 2089335
25 piece
167 R MS PG36-29 36 29 2089351
25 piece
167 R MS PG42-36 42 36 2089408
25 piece
167 R MS PG48-36 48 36 2089424
25 piece
167 R MS PG48-42 48 42 2089440
25 piece
