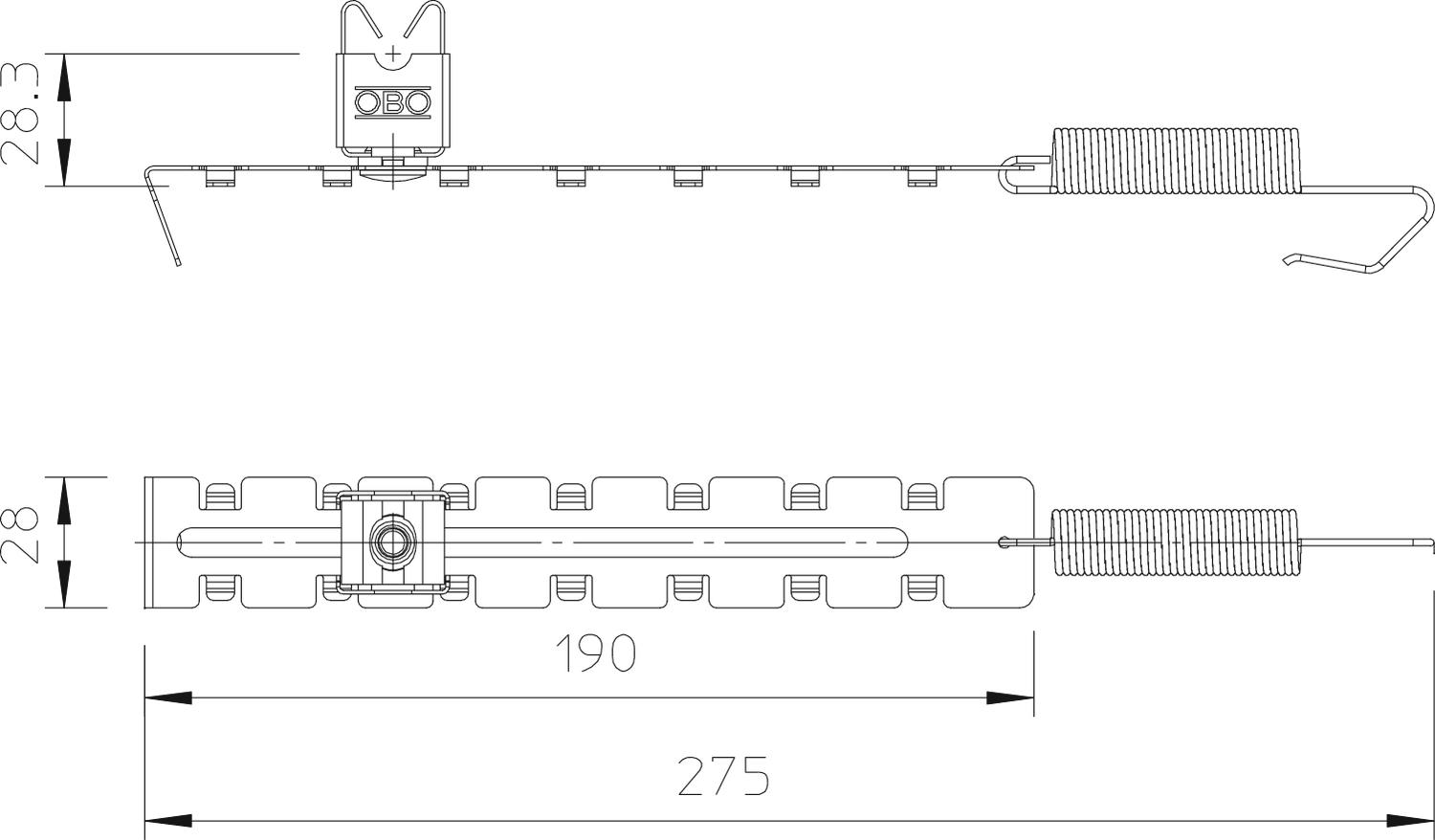

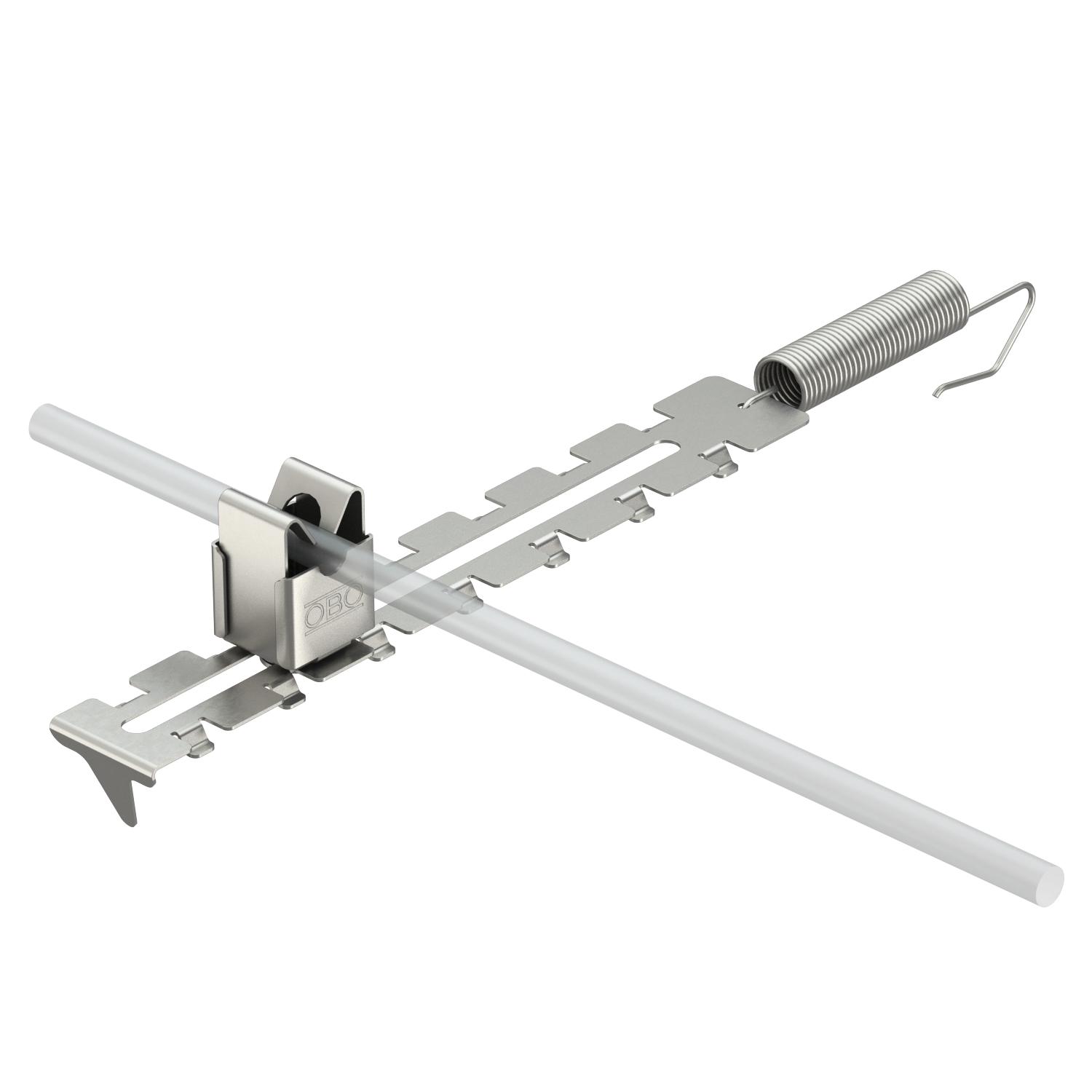

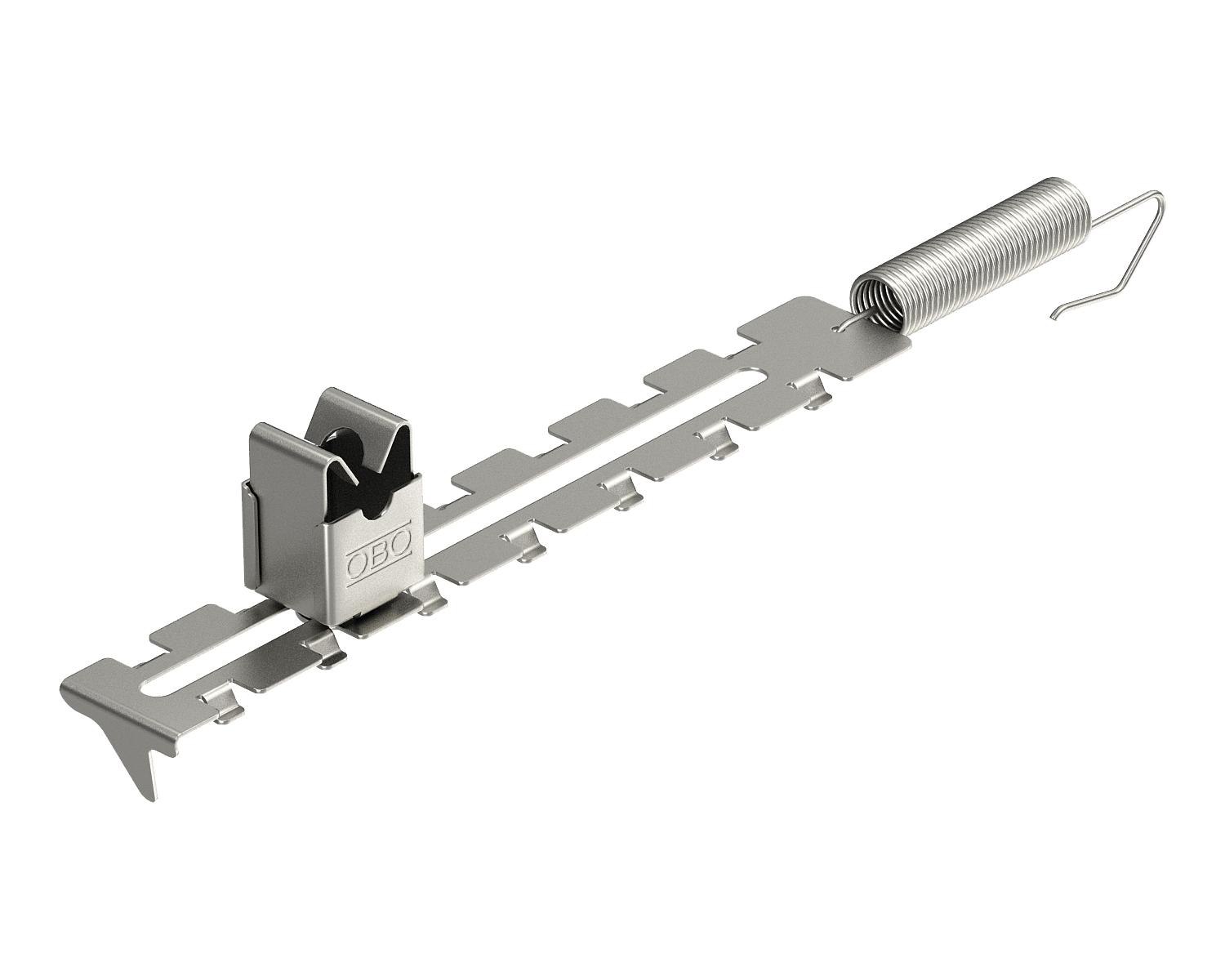

Ridge conductor holder with tensioning spring

Item no. 5203015 | EAN 4012195038269

5203015 / 132 U
20 mm
RD 8 mm
Product description

Product description

• For round conductor Rd 8

• Clamping range 280-380 mm
Technical data

Technical data

Application Ridge
Clamping range D, max. 380 mm
Clamping range D, min. 280 mm
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 8mm
Fit RD 8 mm
Material Stainless steel
Mounting height 20 mm
Mounting type Tensionable
All types

All types

Types Mounting height Fit Item no. Quantity SSU
132 U 20 mm RD 8 mm 5203015
20 piece
