Ridge conductor holder with tensioning spring 35 | RD 8

morepic-1

morepic-2

Ridge conductor holder with tensioning spring

Item no. 5203018 | EAN 4012195784968

Item no. / Types	5203018 / 132 U 35

Mounting height	35 mm

Fit	RD 8 mm

Product description

Product description

• For round conductor Rd 8

• Clamping range 280-380 mm

Technical data

Technical data

Application	Ridge
Clamping range D, max.	380 mm
Clamping range D, min.	280 mm
Conductor diameter, min.	8
Conductor fastening type	With clip

Dimension	35 mm
Fit	RD 8 mm
Material	Stainless steel
Mounting height	35 mm
Mounting type	Tensionable

All types

All types

Types	Mounting height	Fit	Item no.	Quantity	SSU
132 U 35	35 mm	RD 8 mm	5203018	piece	20 piece

Downloads

Data sheet 132 U 35 / 5203018 , 0.17MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 132 U 35 / 5203018 , 0.06MB , pdf

Download

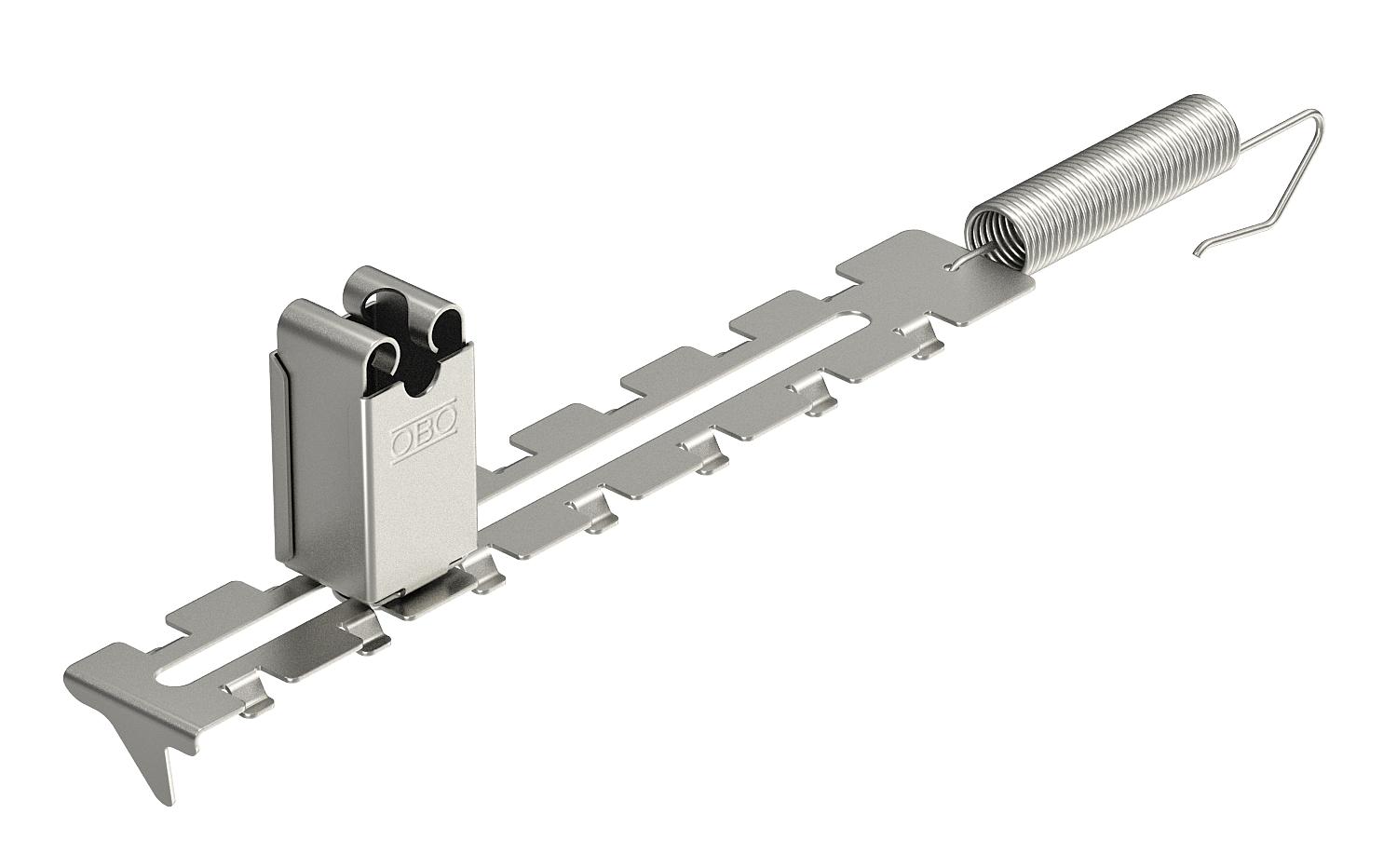

Product graphic 132 U 35 / 5203018, 61.55 kB, jpg

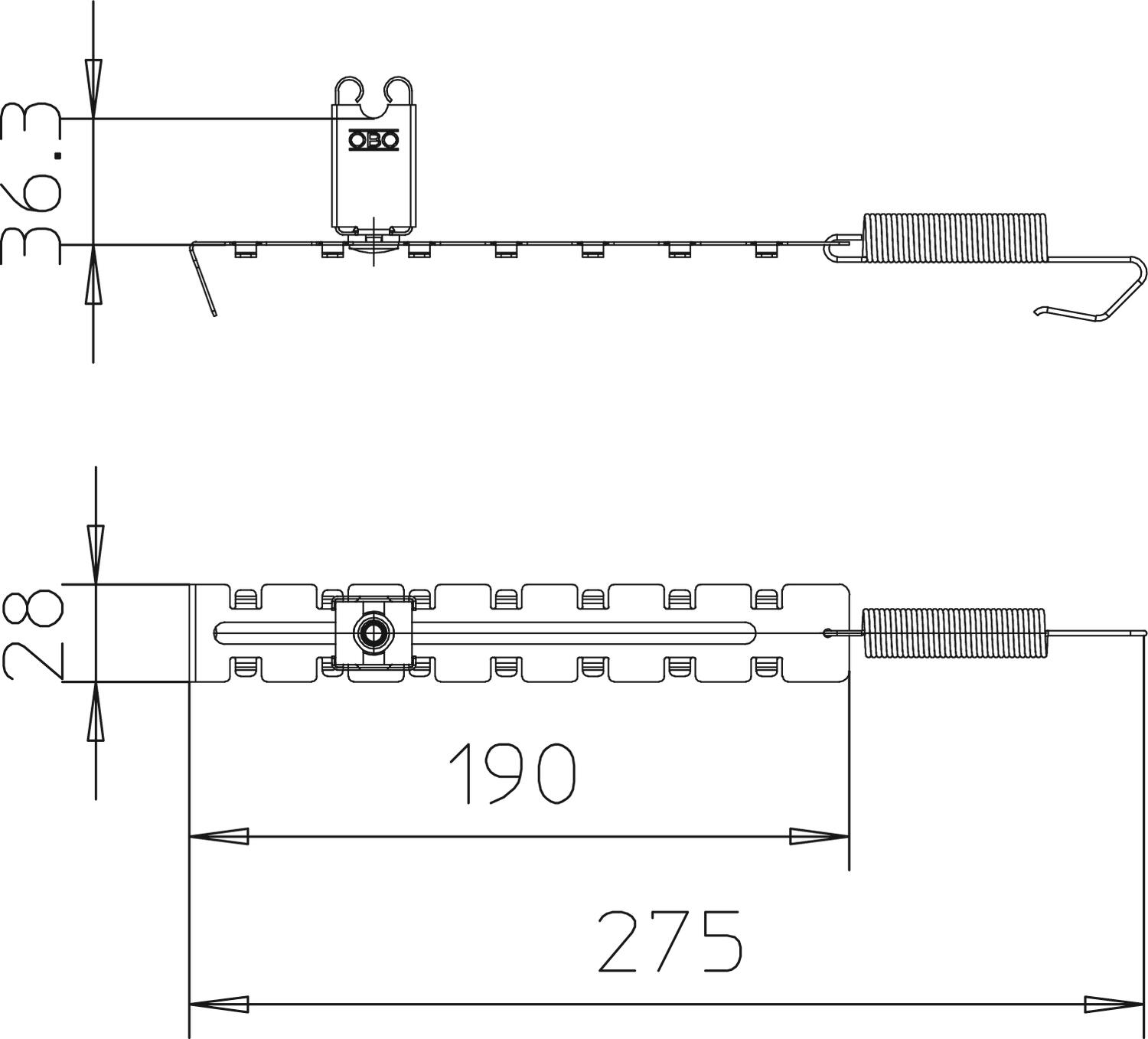

Scale drawing 132 U 35 / 5203018, 82.27 kB, jpg

132 U 35 / 5203018
