Ring eyelet
Item no. 3463060 | EAN 4012195307150
- Product description
-
Product description

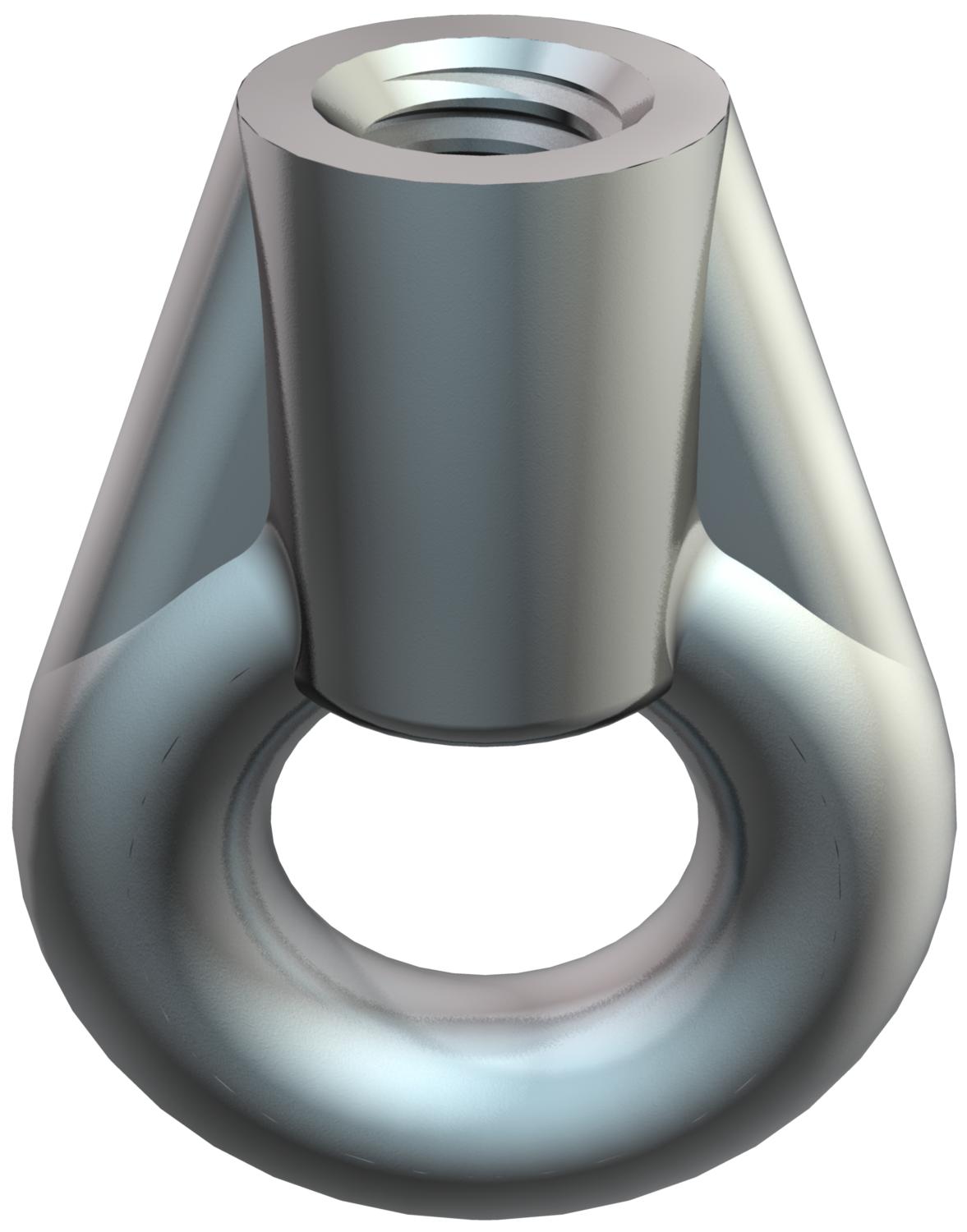

Ring eyelet with metric internal thread.
-
- Technical data
-
Technical data
Breaking load 1,15 kN Dimension M6 Material Die-cast zinc Surface Electrogalvanized Thread length 13 mm Thread metric 6 Dimensions

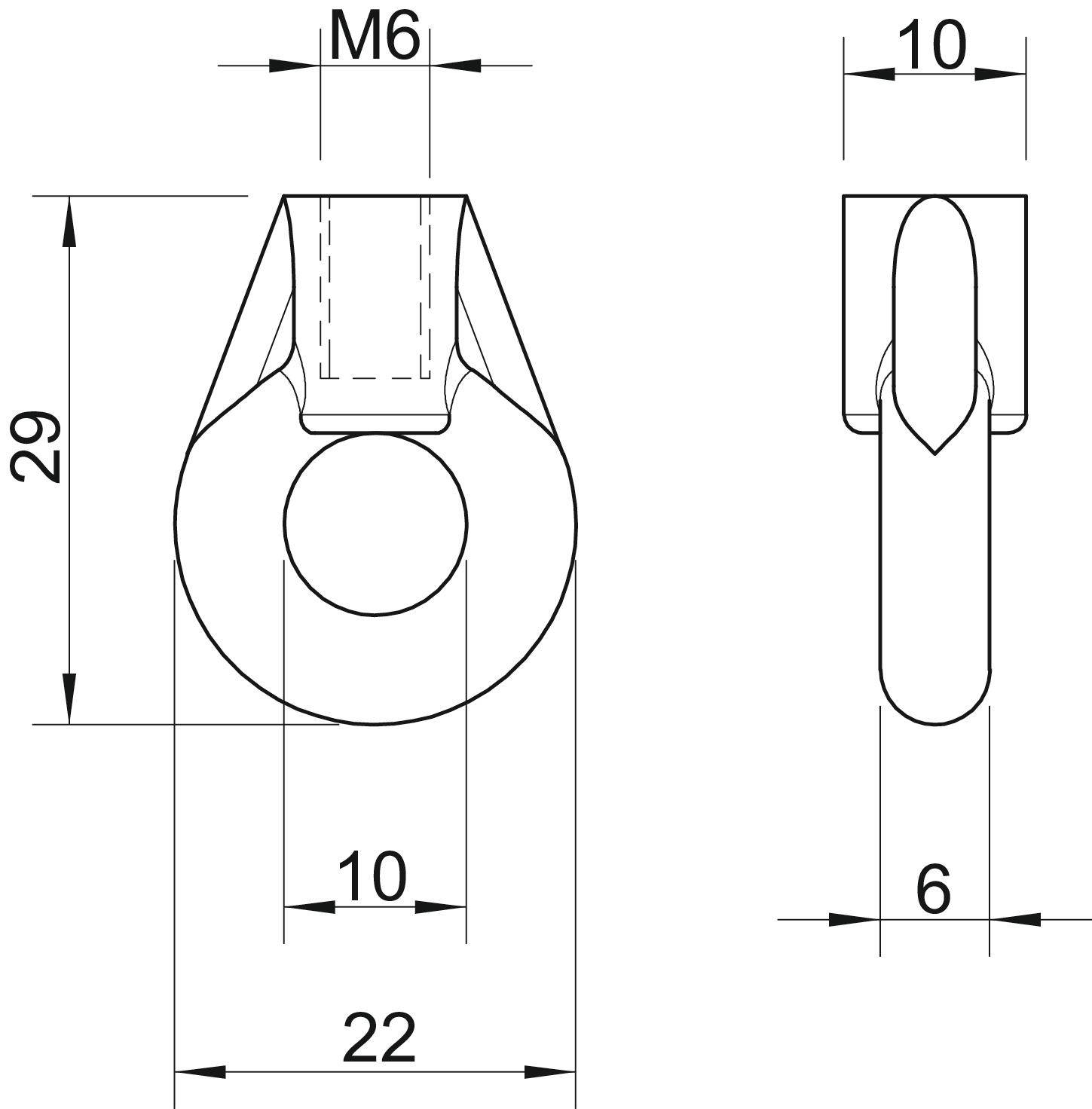

Dimension b 6 mm Dimension BØ 10 mm Dimension D 22 mm Dimension d Ø 10 mm Dimension L 29 mm - All types
- Downloads
-
Data sheet 2084 K M6 / 3463060 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2084 K M6 / 3463060 , 0.05MB , pdfREACH Declaration of conformity 2084 K M6 / 3463060 , 0.12MB , pdfRoHS Declaration of conformity 2084 K M6 / 3463060 , 0.13MB , pdf
