Ring eyelet

Item no. 3463583 | EAN 4012195307273

1.15 kN
Product description

Product description

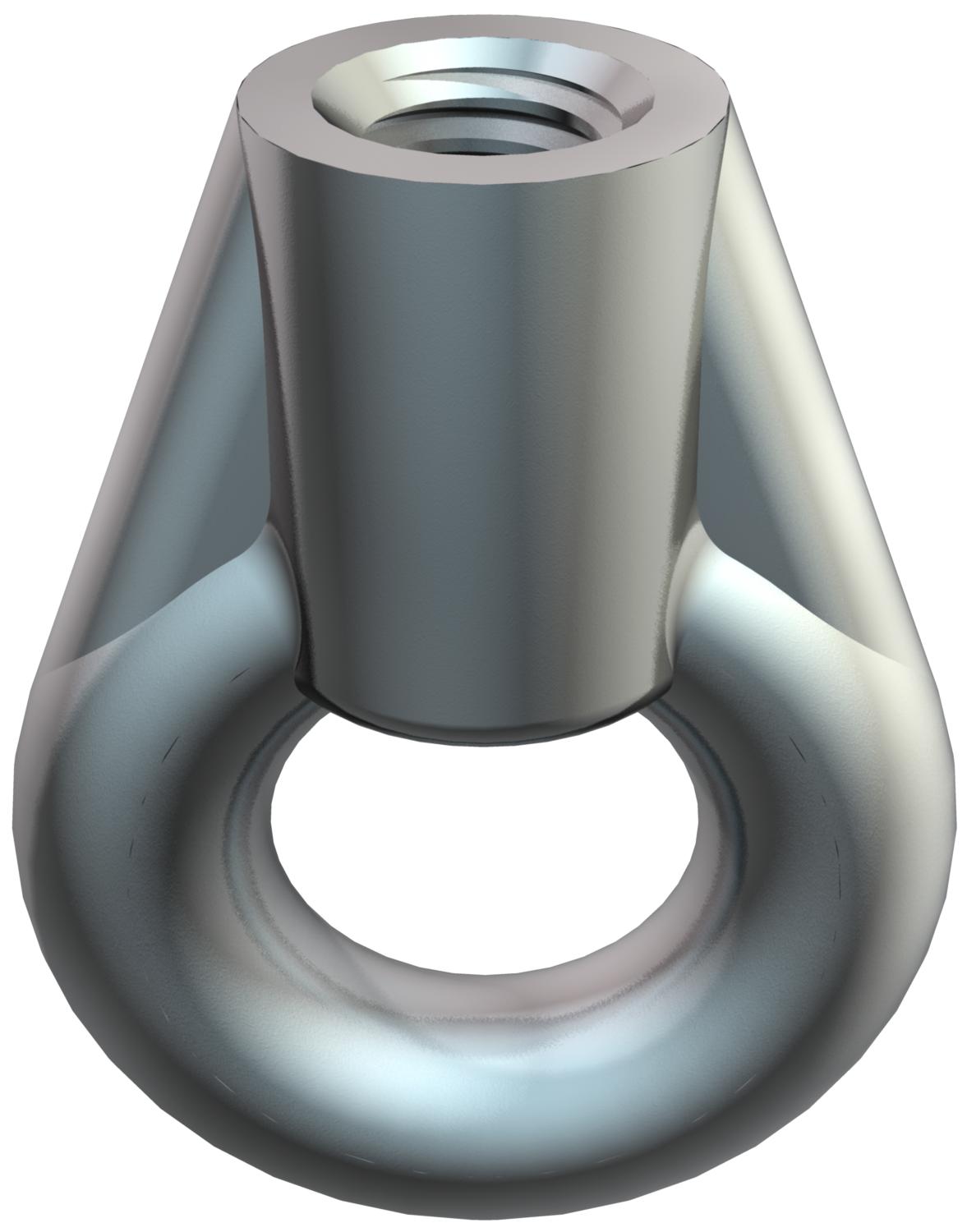

Ring eyelet with metric internal thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 1,15 kN

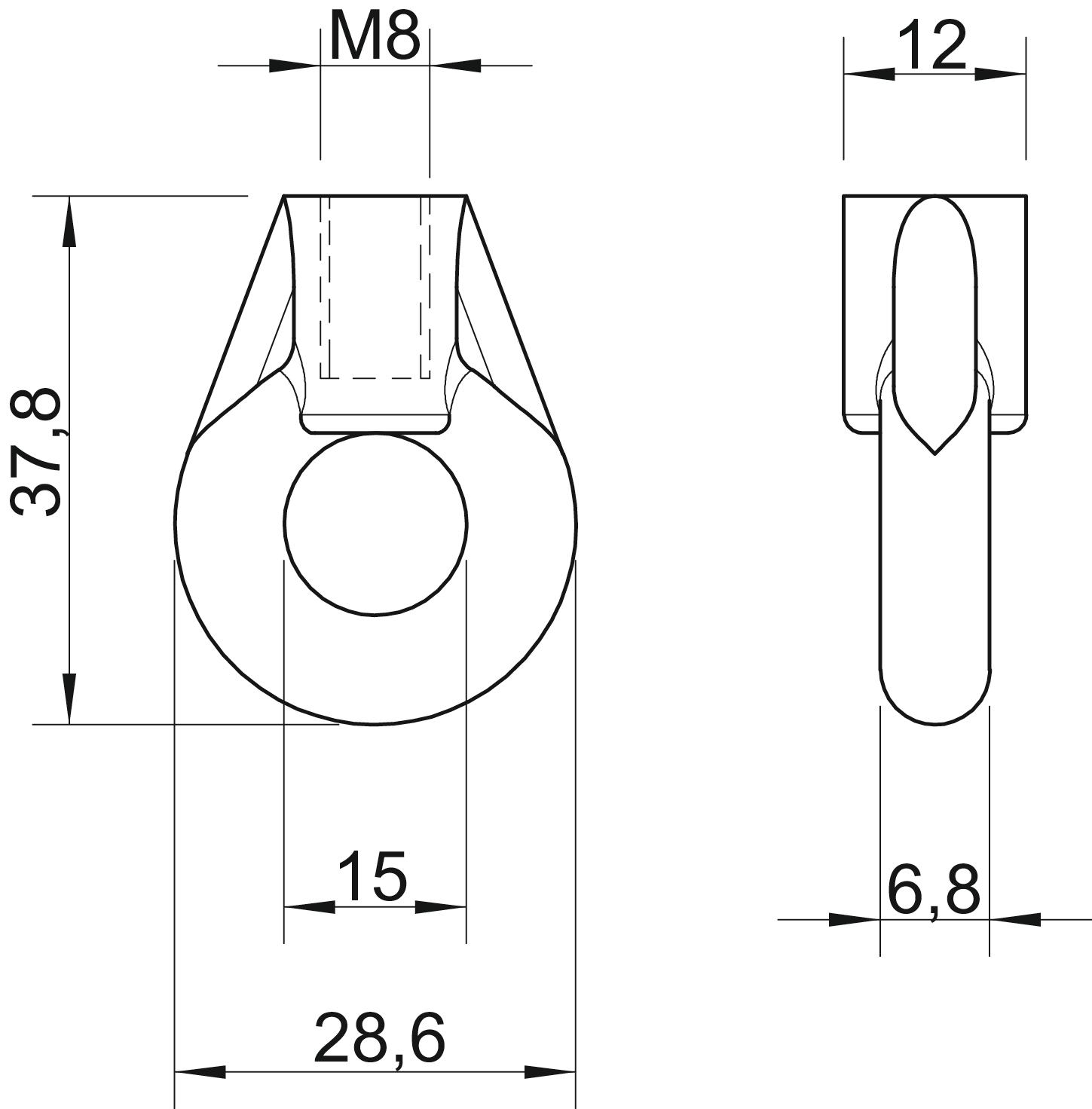

Dimension M8
Dimension b 6,8 mm
Dimension BØ 12 mm
Dimension D 28,6 mm
Dimension d Ø 15 mm
Dimension L 37,8 mm
Material Die-cast zinc
Surface Electrogalvanized
Thread metric 8
All types

All types

Types Breaking load Thread metric Item no. Quantity SSU
2084 M6 G 1.15 kN 6 3463567
100 piece
2084 M8 G 1.15 kN 8 3463583
100 piece
