- Product description
-

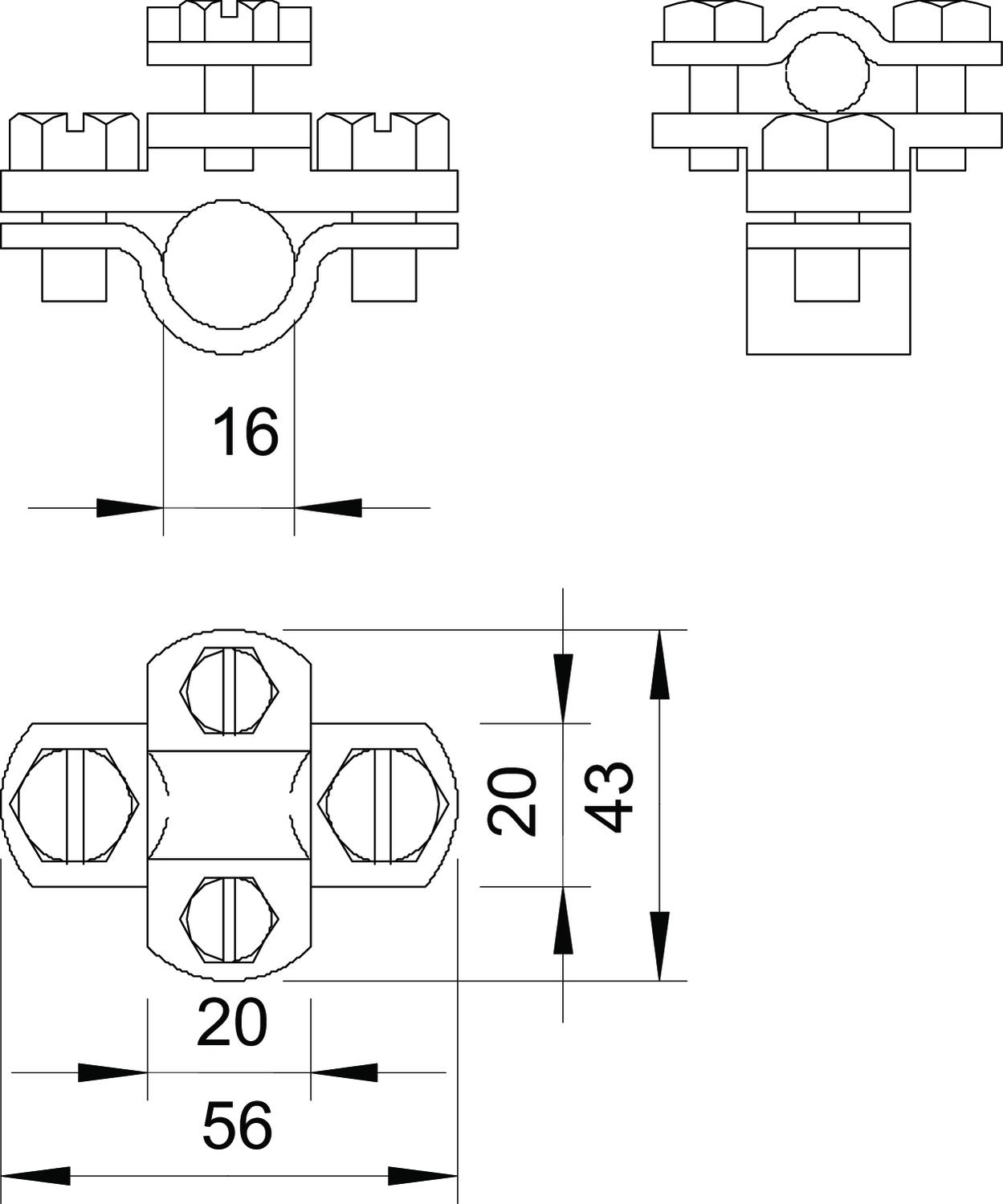

Product description• Rod clamp for connecting round conductors Rd 8−10 to connector rods Rd 16
• Mounted with 2 hexagonal bolts M8 x 16 and M6 x 12
• Adapter from malleable iron
• Crossbar and bolts from hot dip galvanized steel
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10/16 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material cast steel Suitable for connection Round conductor Rd 8-10 / Rd 16 Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 108 B DIN / 5416566 , 0.18MB , pdfEU declaration of conformity 108 B DIN / 5416566 , 0.06MB , pdfREACH Declaration of conformity 108 B DIN / 5416566 , 0.27MB , pdfRoHS Declaration of conformity 108 B DIN / 5416566 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
