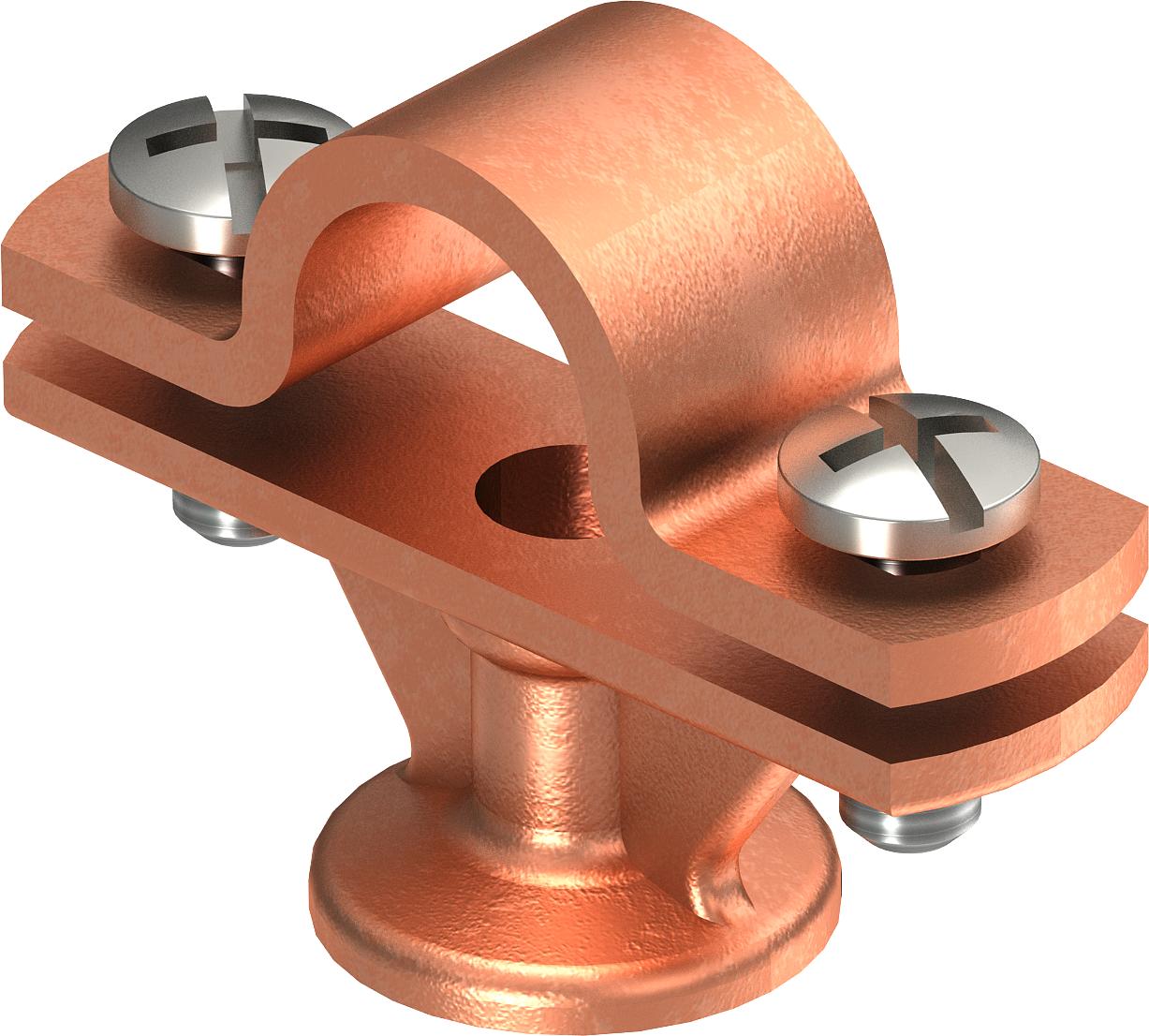

Rod holder, 16 mm
Item no. 5412633 | EAN 4012195446415
- Product description
-
Product description
• For air-termination and earth entry rods Rd 16
• Installed with crossbar and hexagonal bolts M6 x 16
• With female thread M8 or through hole Ø 7 mm
- Technical data
-
Technical data
Dimension 16mm Fit Rd 16 mm Holder fastening type Drill hole with M thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Rod fastening type With screw clip Surface Copper-plated Thread metric 8 - All types
- Downloads
-
Data sheet 113 ZN-16 / 5412633 , 0.12MB , pdfREACH Declaration of conformity 113 ZN-16 / 5412633 , 0.12MB , pdfRoHS Declaration of conformity 113 ZN-16 / 5412633 , 0.12MB , pdf
