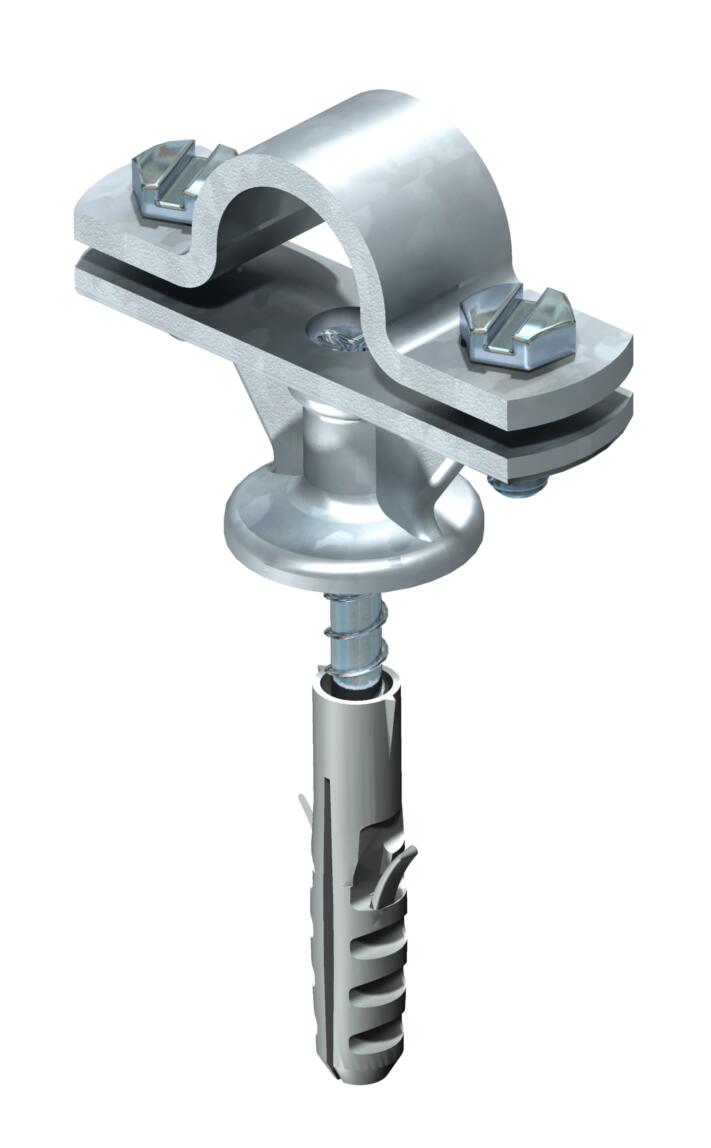

Rod holder, 16 mm, with screw and anchor

Item no. 5412803 | EAN 4012195752356

5412803 / 113 B-Z-HD
Rd 16 mm
Product description

Product description

• For air-termination and earth entry rods Rd 16
• Installed with crossbar and hexagonal bolts M6 x 16 (VA)
• With female thread M8 for screwing on and through hole for wood screws
• Pre-mounted with wood screw 5 x 60 and plastic anchor 8 x 40
Technical data

Technical data

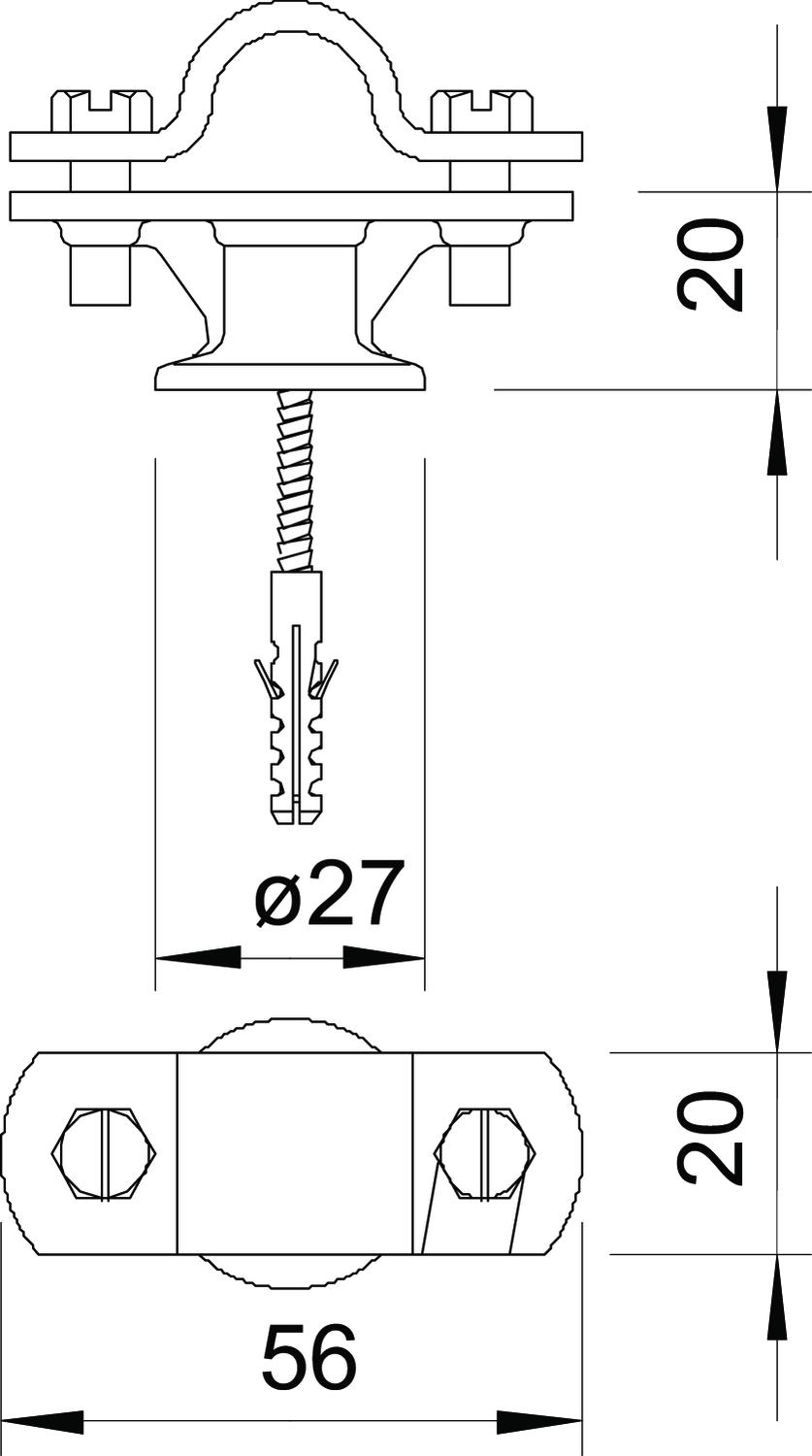

Dimension 16mm
Fit Rd 16 mm
Holder fastening type With anchor
Material Die-cast zinc
Material of the base Die-cast zinc
Material of the crossbar Die-cast zinc
Rod fastening type With screw clip
Surface galvanised
Thread metric 8
All types

All types

Types Fit Item no. Quantity SSU
113 B-Z-HD Rd 16 mm 5412803
100 piece
Downloads

Download

Download

113 B-Z-HD / 5412803
Download
