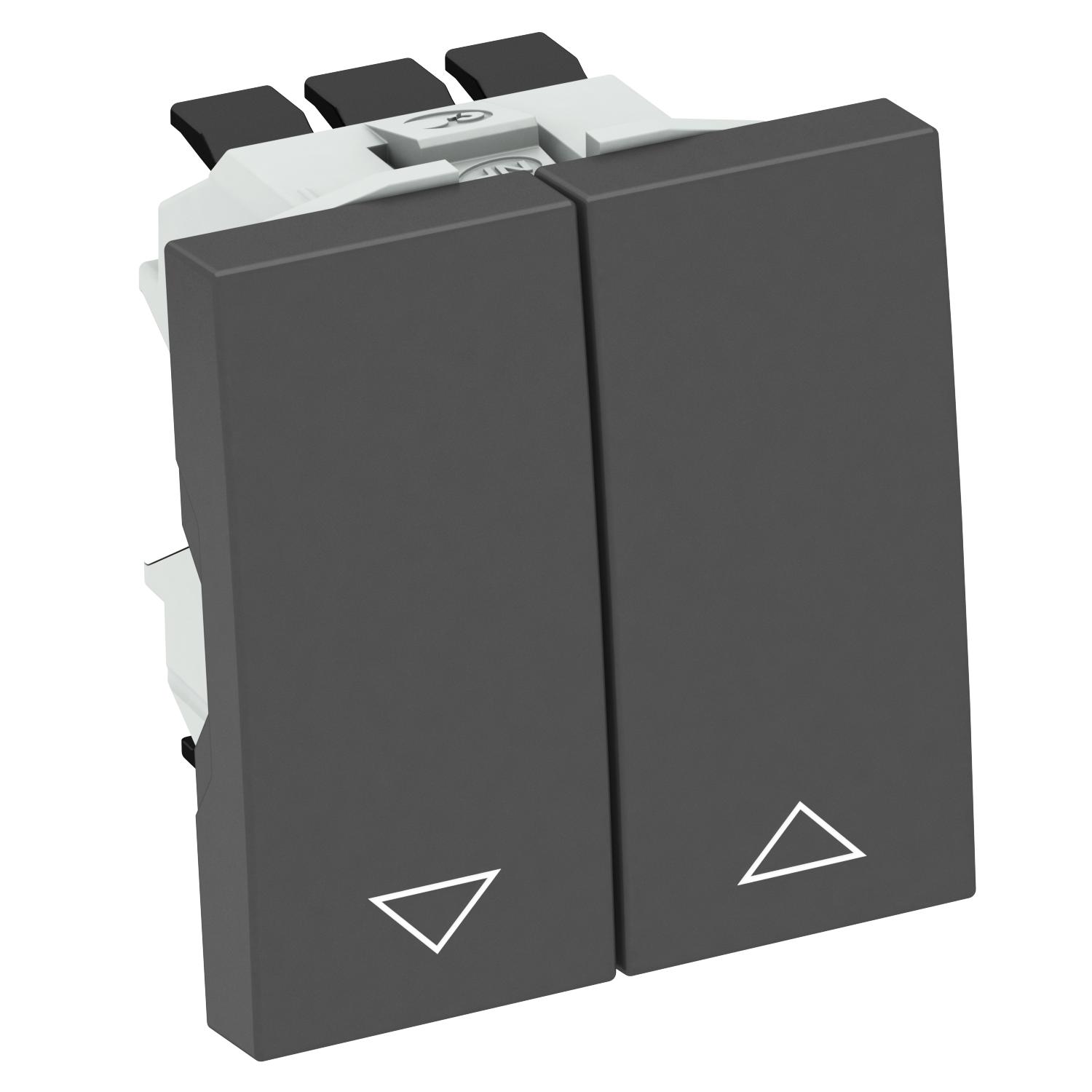

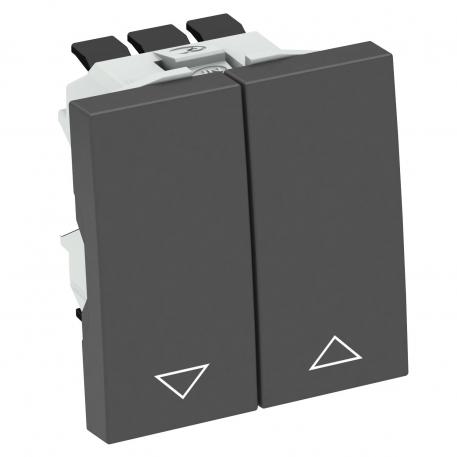

Roller blind button, 1 module
Item no. 6120982 | EAN 4012196571062
- Product description
-
Product description
Roller blind button with electrical locking, 1-pin, 10 A, 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
-
- Technical data
-
Technical data

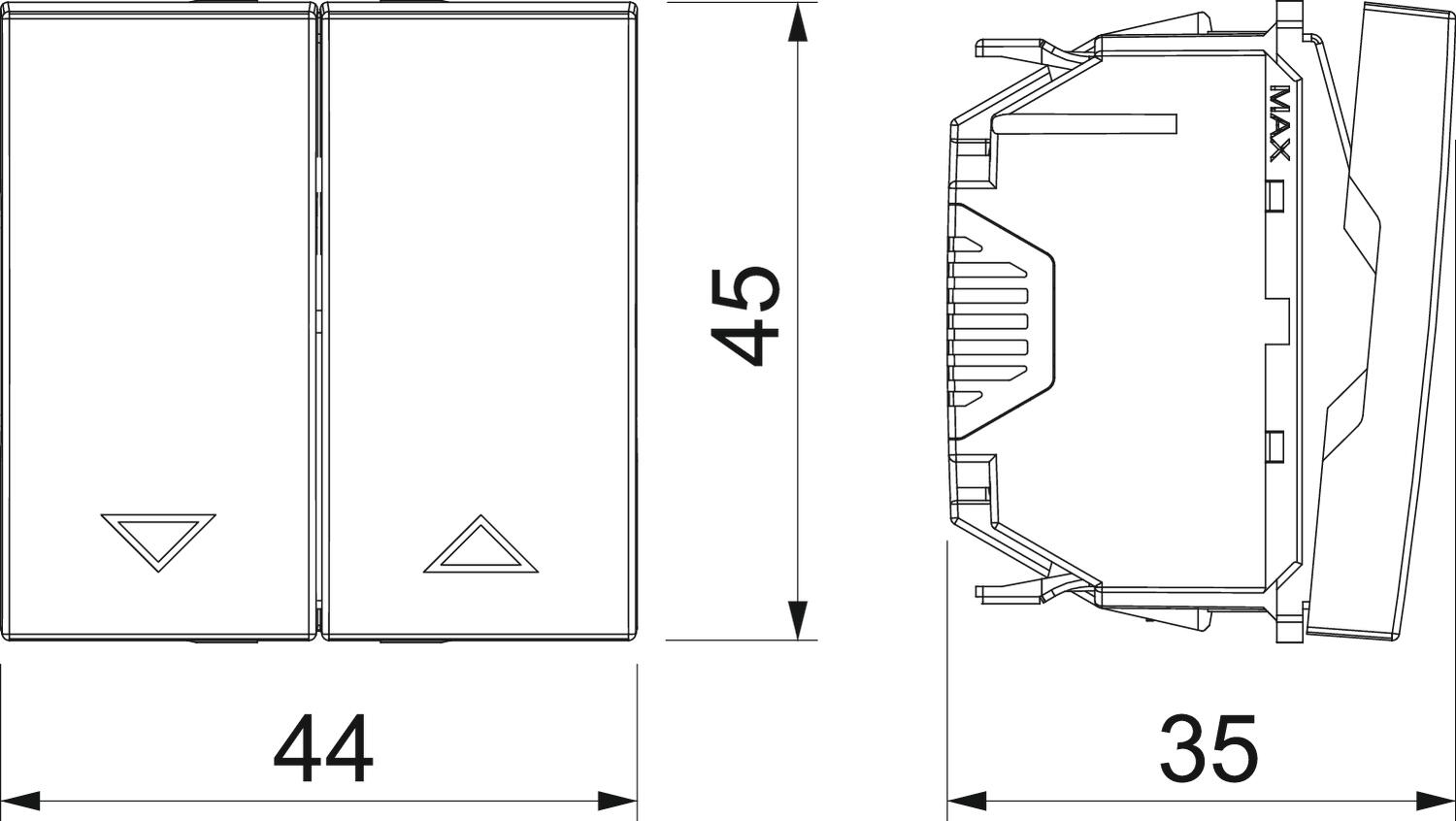

Colour Black-grey; RAL 7021 Combination Miscellaneous Dimension 45 x 45 Dimension 10 A, 250 V Fastening type Lock Halogen-free yes Labelling panel no Material Polycarbonate Mounting type Device installation duct Nominal current 10 A Nominal voltage 250 V Number of modules (for modular construction) 1 Operation type Rocker Protection rating IP20 Surface version Matt Transparent no Version for Switch, 1 pin - All types
- Downloads
-
Data sheet RT-BS SWGR1 / 6120982 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfNo invitation to tender text is available for this product.
