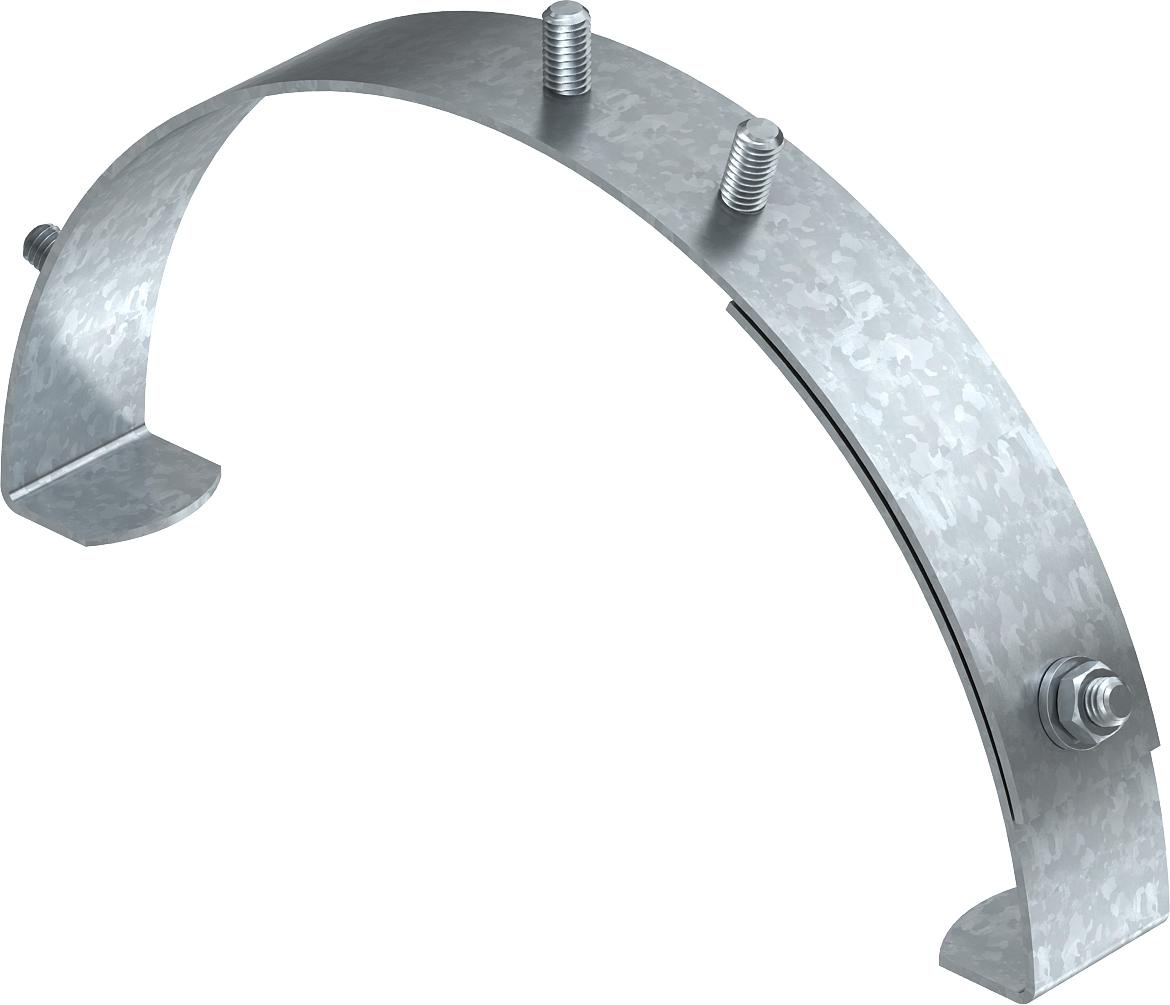

Roof cable holder for ridge tiles with M8 threaded bolts

Item no. 5202568 | EAN 4012195894124

5202568 / 132 GB-M8
20 mm
Product description

Product description

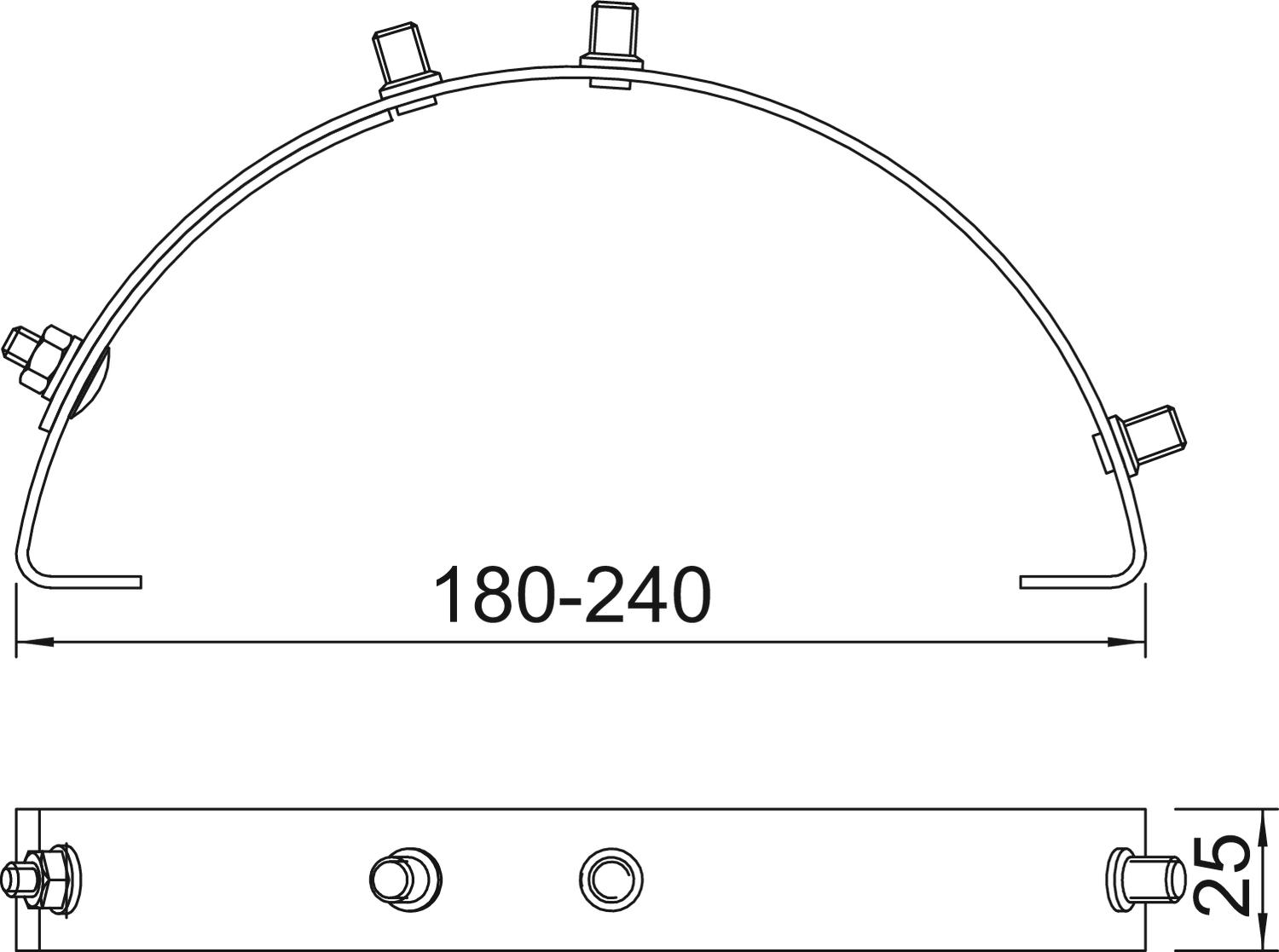

• Adjustable from 180–240 mm

• With conductor 177/20, polyamide, grey

• With 3 M8 threaded nipples for positioning the holder
Technical data

Technical data

Application Ridge
Dimension M8
Material Steel
Mounting height 20 mm
Mounting type Tensionable
Surface Hot-dip galvanised
All types

All types

Types Mounting height Item no. Quantity SSU
132 GB-M8 20 mm 5202568
20 piece
Downloads

Download

Download
Download

Declaration of conformity 132 GB-M8 / 5202568 , 0.06MB , pdf
