Roof cable holder for slated roofs, crimped, Rd 8−10, CU 265 | 42 | Rd 8-10
morepic-1 morepic-2 video-1

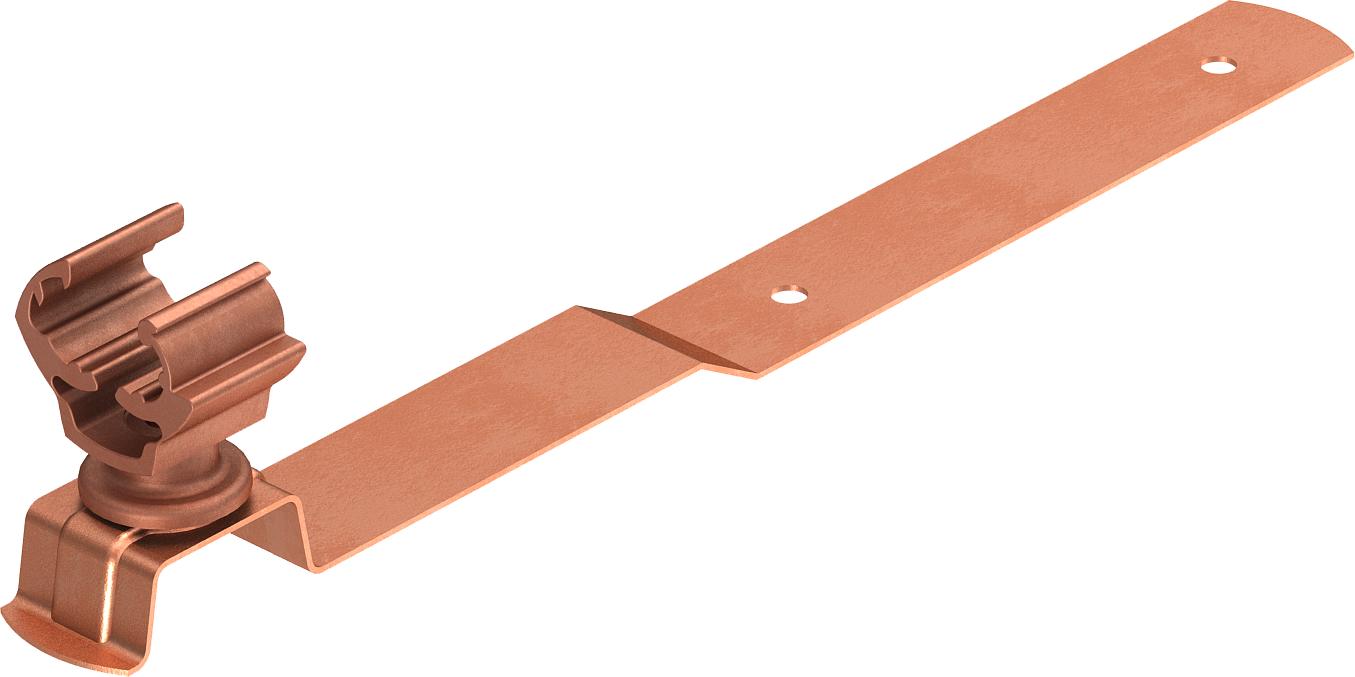

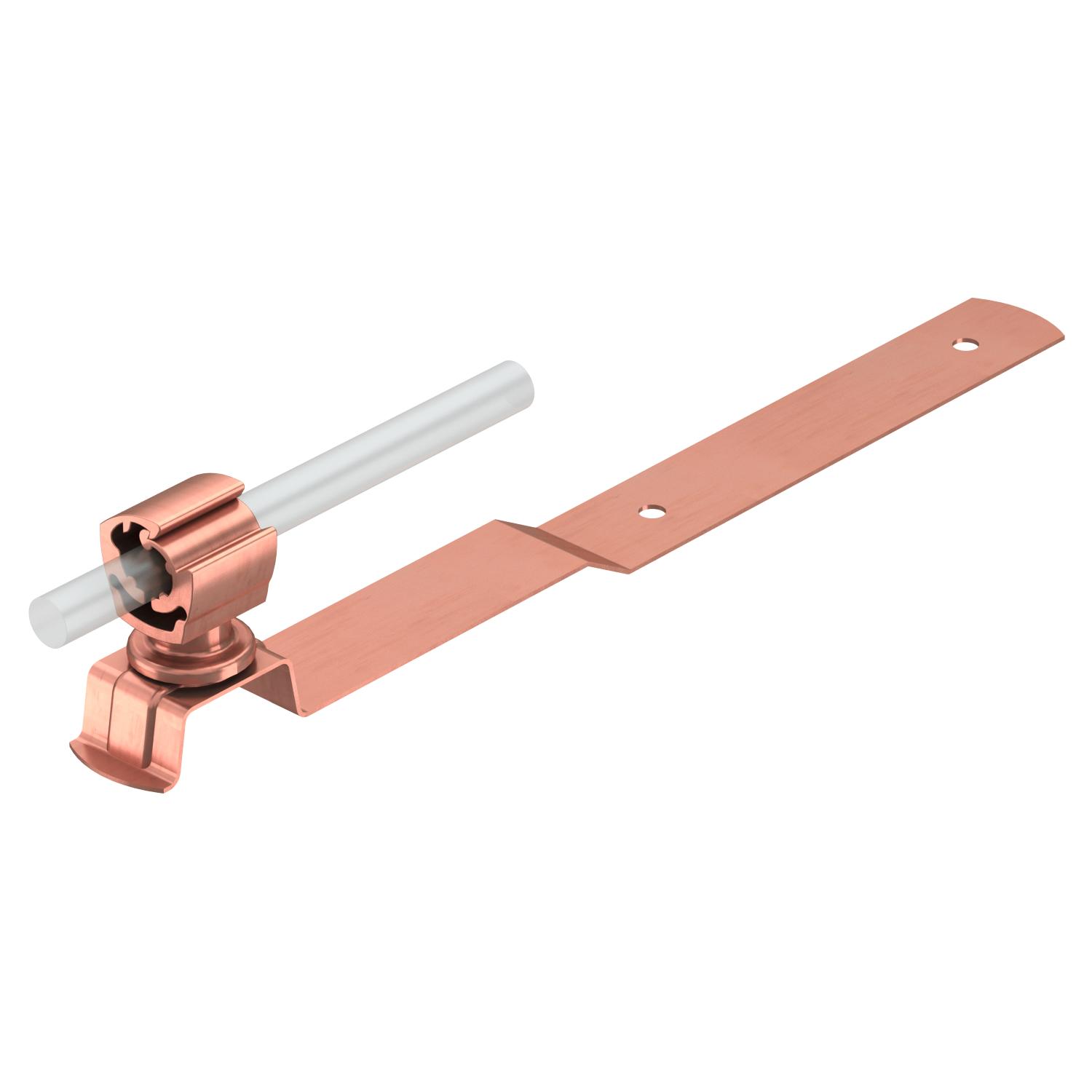

Roof cable holder for slated roofs, crimped, Rd 8−10, CU

Item no. 5215854 | EAN 4012195902478

5215854 / 157 EK-CU
265 mm
42 mm
Rd 8-10 mm
Product description

Product description

• Conductor holder of polyamide
• With Ø 5.5 mm drill hole
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Fit Rd 8-10 mm
Material Copper
Mounting height 42 mm
Mounting type Screw-on

Dimensions

Length 265 mm
All types

All types

Types Length Mounting height Fit Item no. Quantity SSU
157 EK-CU 265 mm 42 mm Rd 8-10 mm 5215854
10 piece
