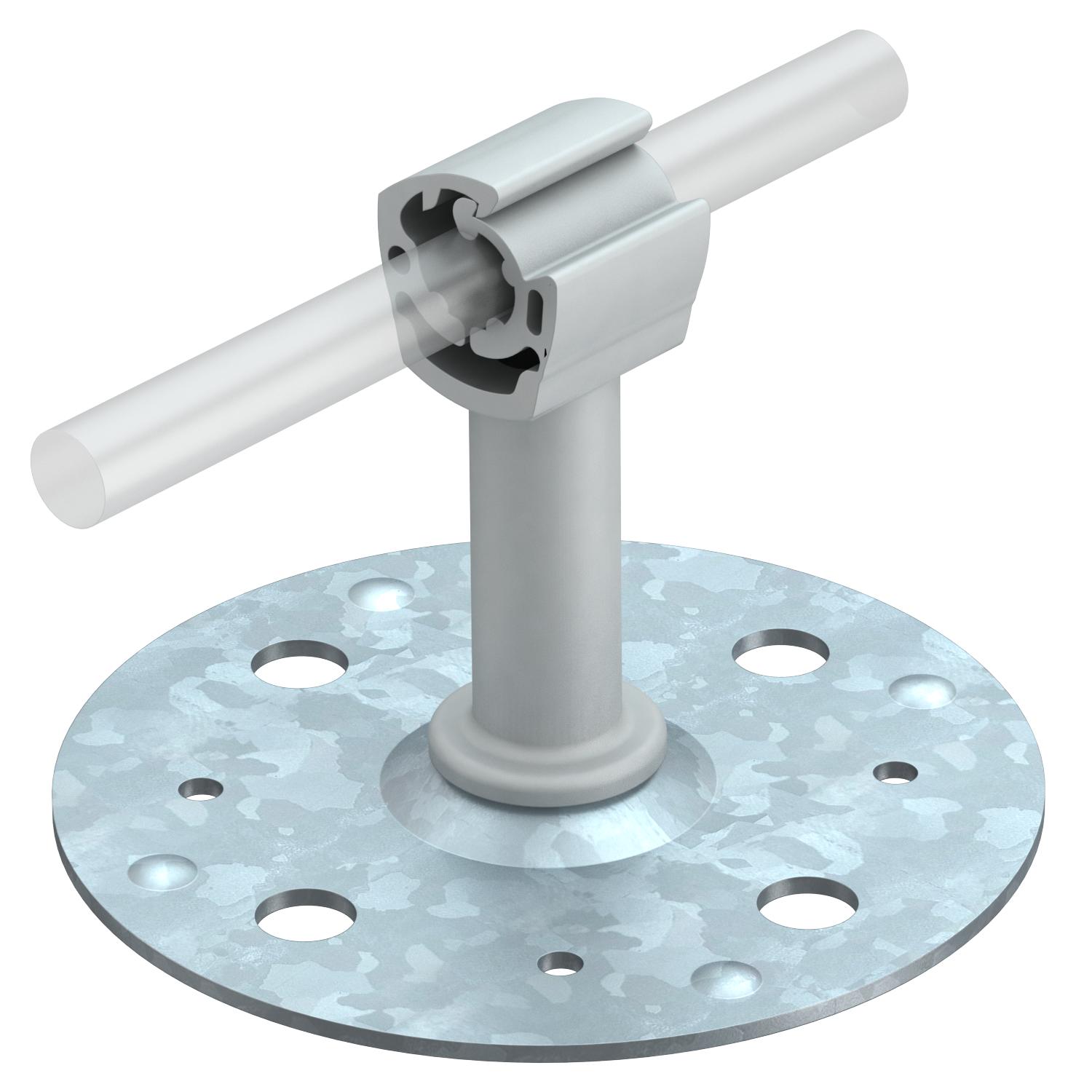

Roof conductor holder 55 mm

Item no. 5218314 | EAN 4012195904274

5218314 / 165 NBK 55

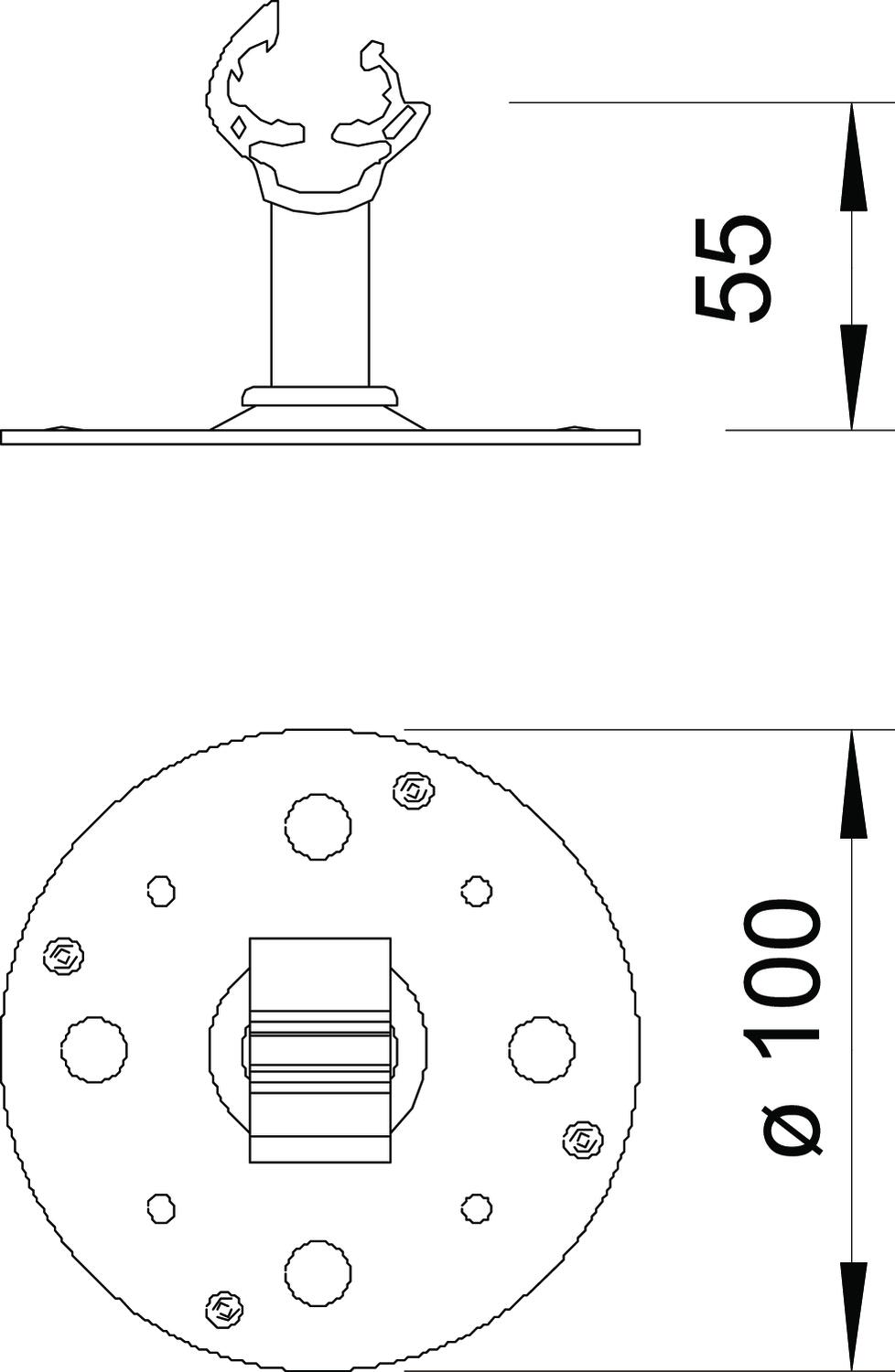

100 mm
55 mm
Rd 8-10 mm
Product description

Product description

• Suitable for bonding straight to flat roofs
• Conductor holder of polyamide
• Bottom section, hot-dip galvanised steel
• Bottom section Ø 100 mm
Technical data

Technical data

Application Flat roof
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 55mm
Dimension H 55 mm
Fit Rd 8-10 mm
Length 100 mm
Material Polyamide
Mounting height 55 mm
Mounting type Adhesive
All types

All types

Types Length Mounting height Fit Item no. Quantity SSU
165 NBK 55 100 mm 55 mm Rd 8-10 mm 5218314
75 piece
