Roof conductor holder for flat roofs, with raised cable bracket 140 | | Rd 8-10
morepic-1 morepic-2 video-1

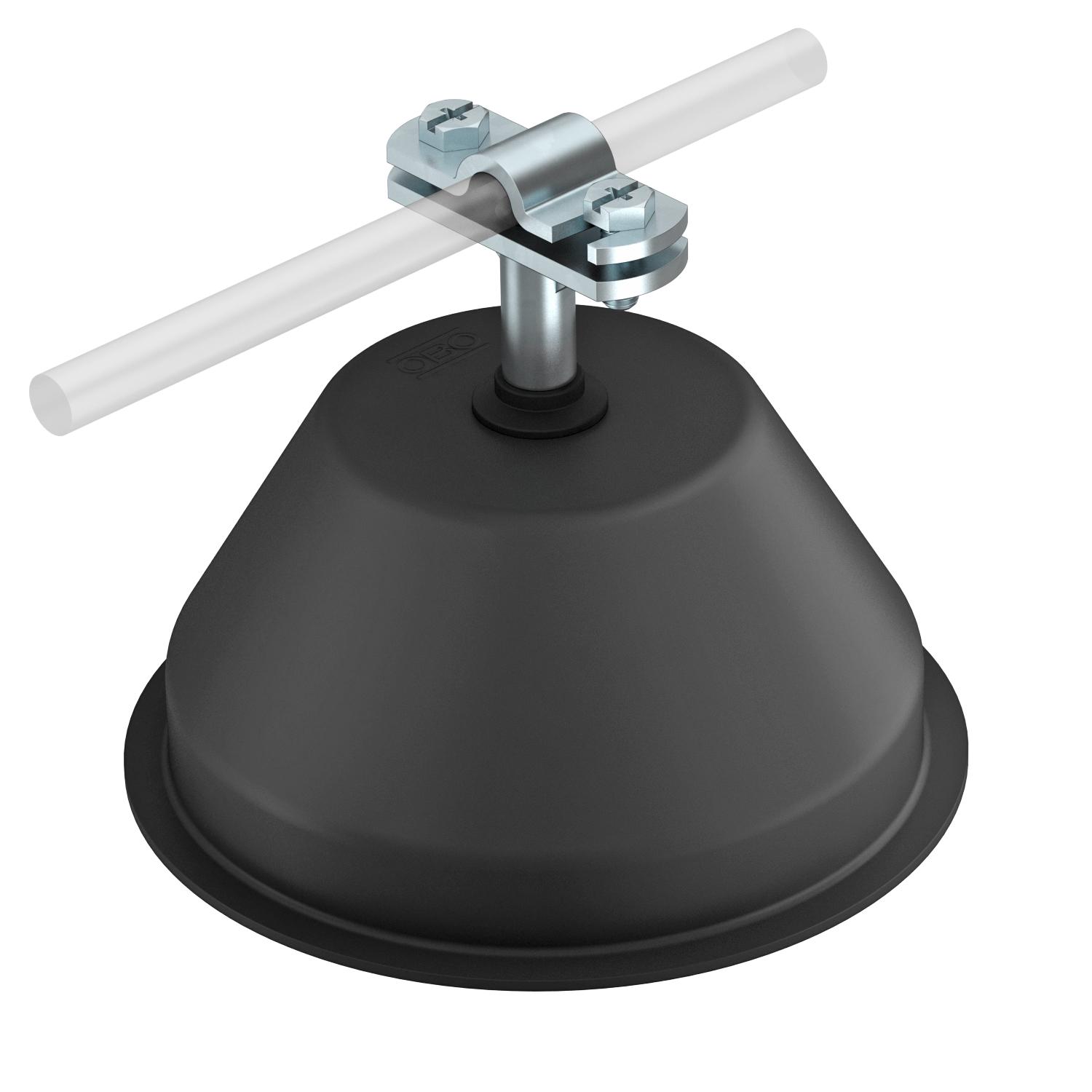

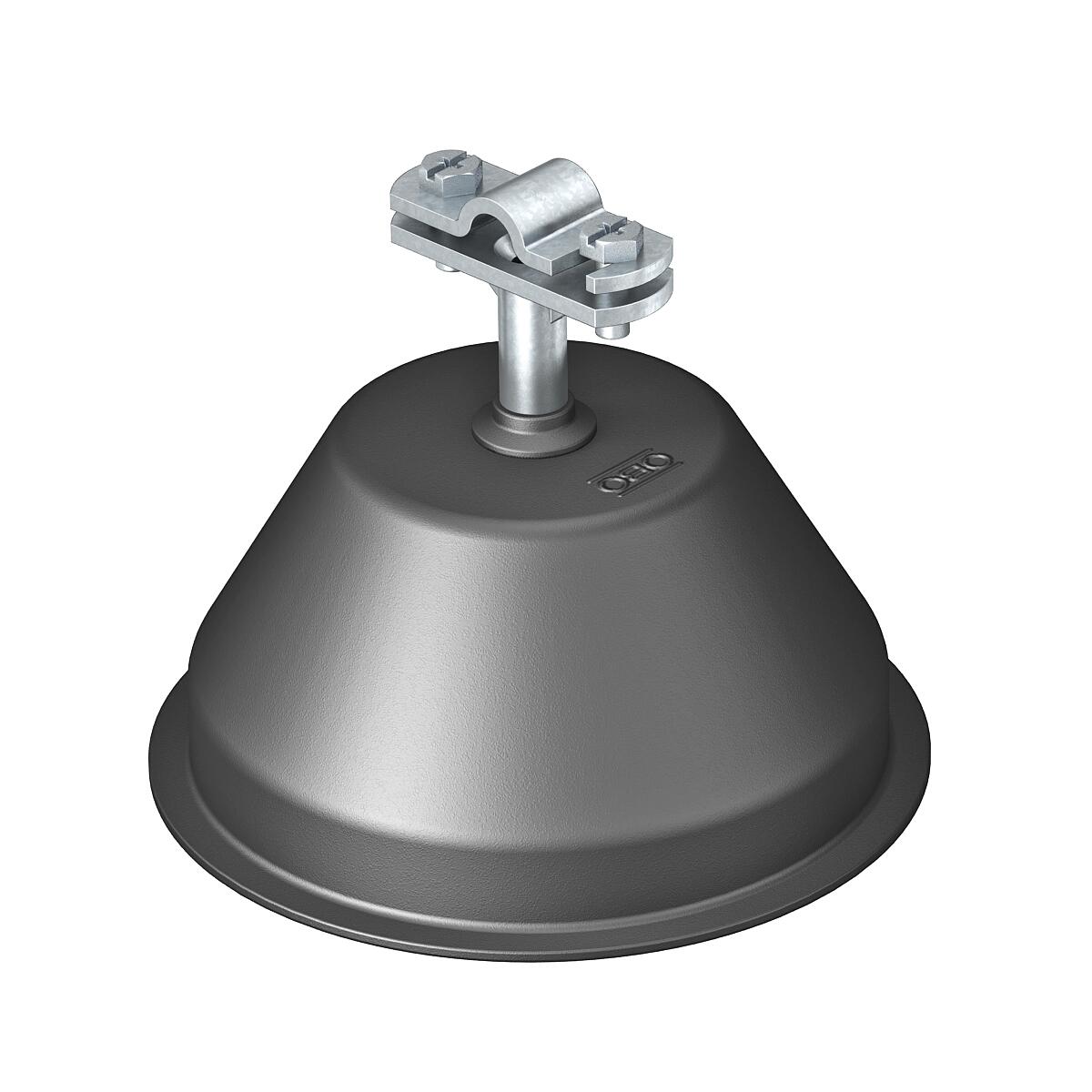

Roof conductor holder for flat roofs, with raised cable bracket

Item no. 5218977 | EAN 4012195952213

5218977 / 165 KRB SO
140 mm
Rd 8-10 mm
Product description
Product description
• Filling weight 1 kg (frost-resistant concrete)
• With conductor holder, type 168 DIN-K
• Die-cast zinc conductor holder, electrogalvanised
• Polyethylene sleeve, black
Technical data

Technical data

Conductor diameter, max. 10
Conductor diameter, min. 8
Dimension 8mm
Fit Rd 8-10 mm

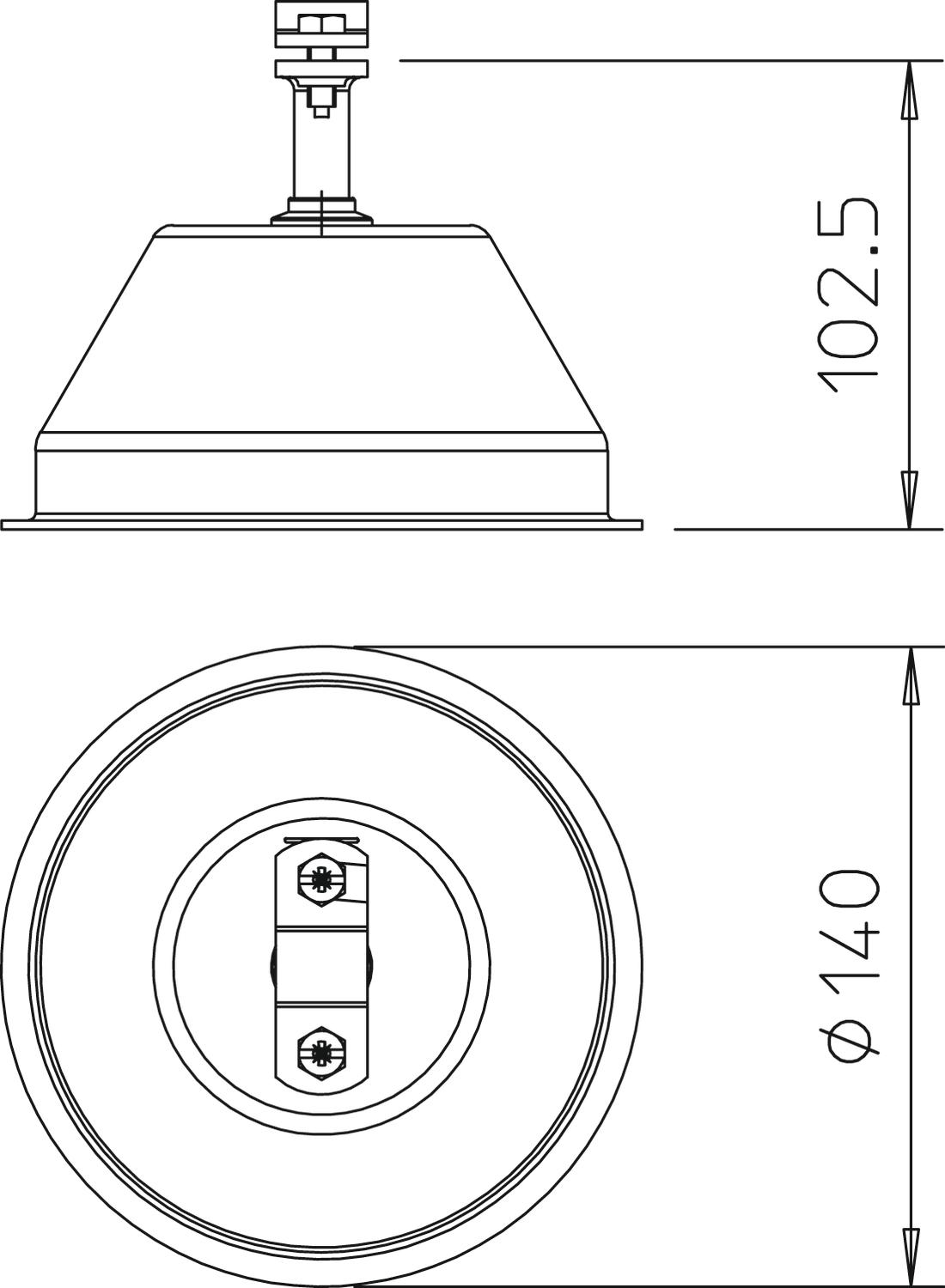

Length 140 mm
All types

All types

Types Length Fit Item no. Quantity SSU
165 KRB SO 140 mm Rd 8-10 mm 5218977
9 piece
