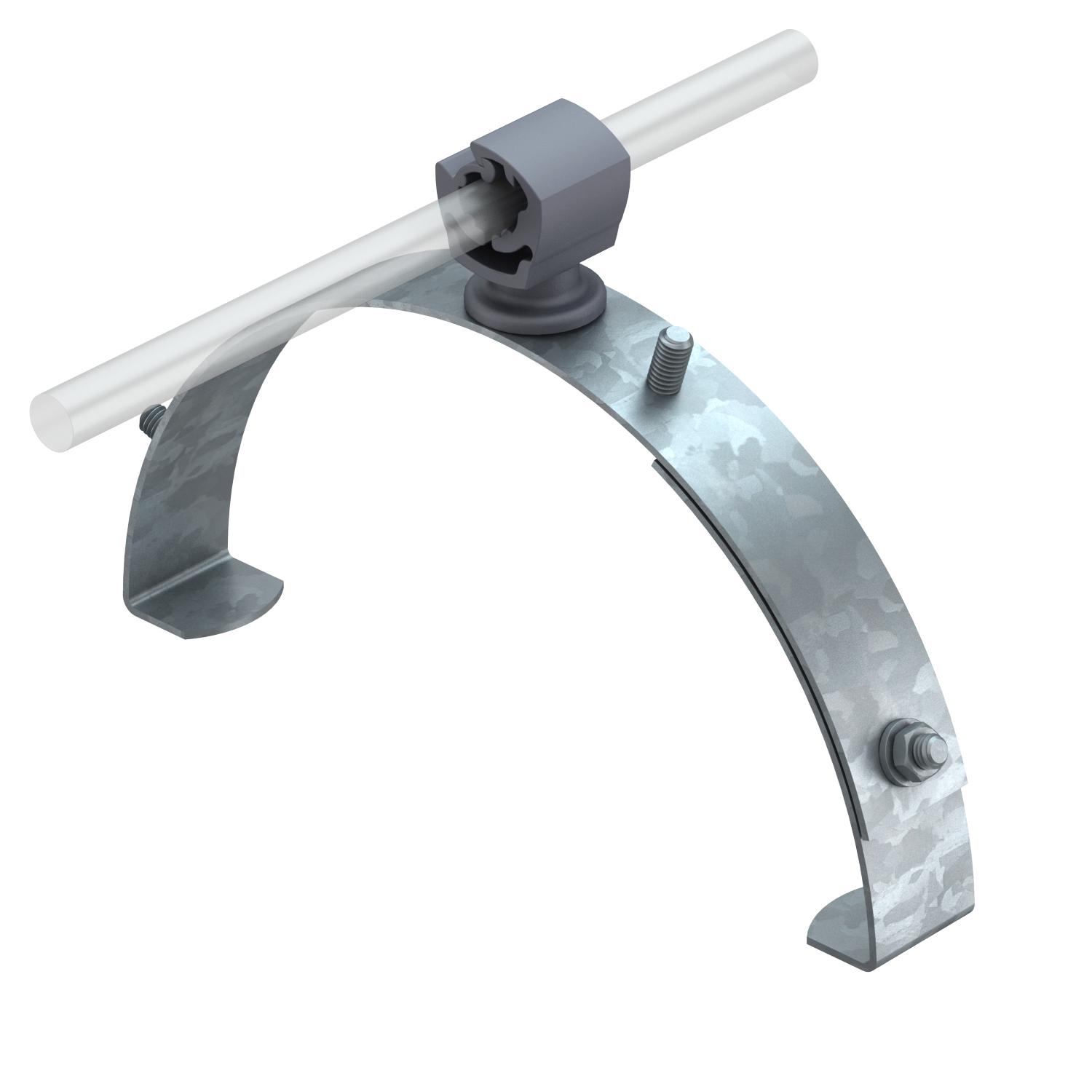

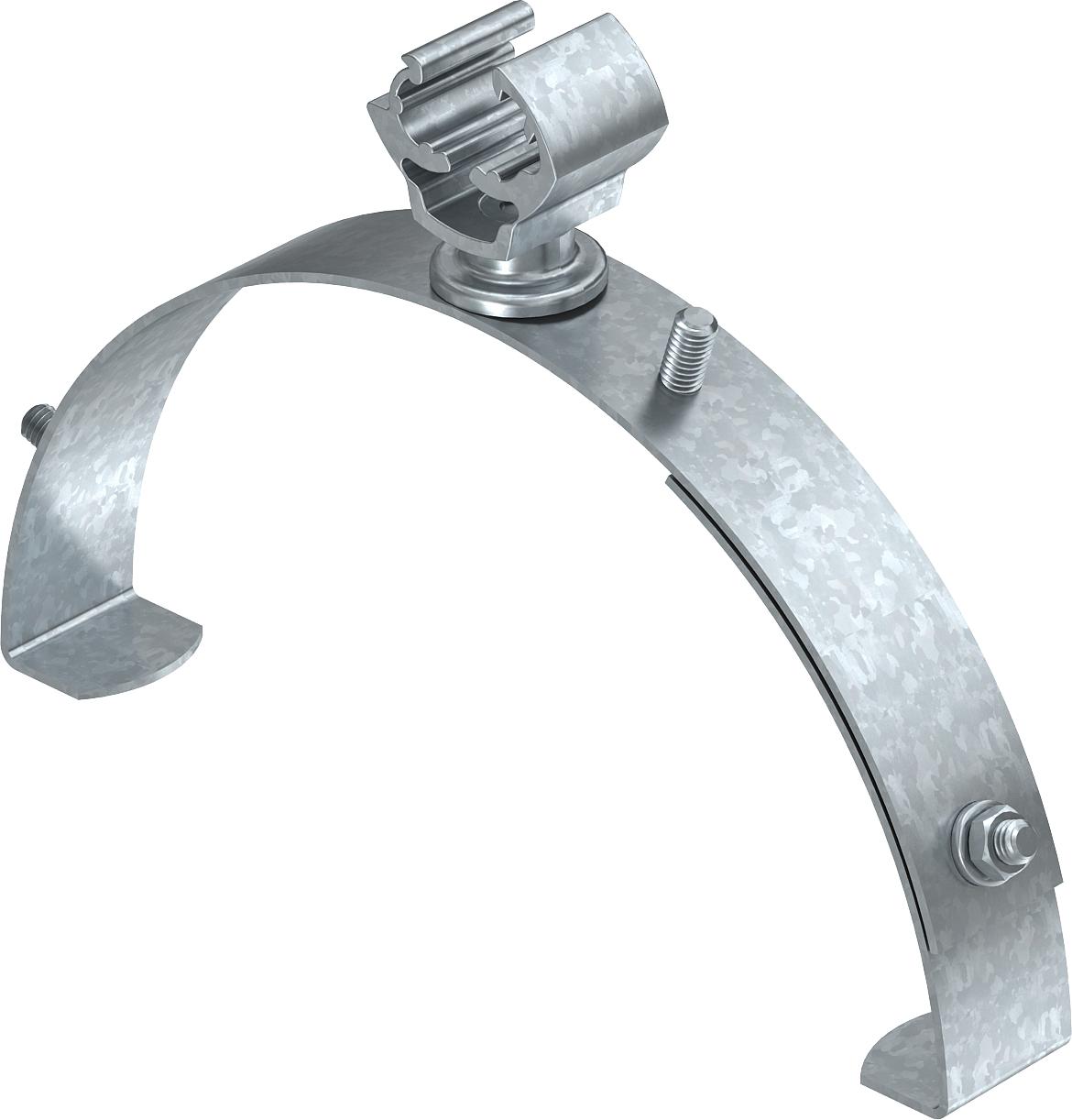

Roof conductor holder for ridge tiles, 180–240 mm, Rd 8–10, FT

Item no. 5202566 | EAN 4012195902294

5202566 / 132 N-DK
20 mm
Rd 8-10 mm
Product description

Product description

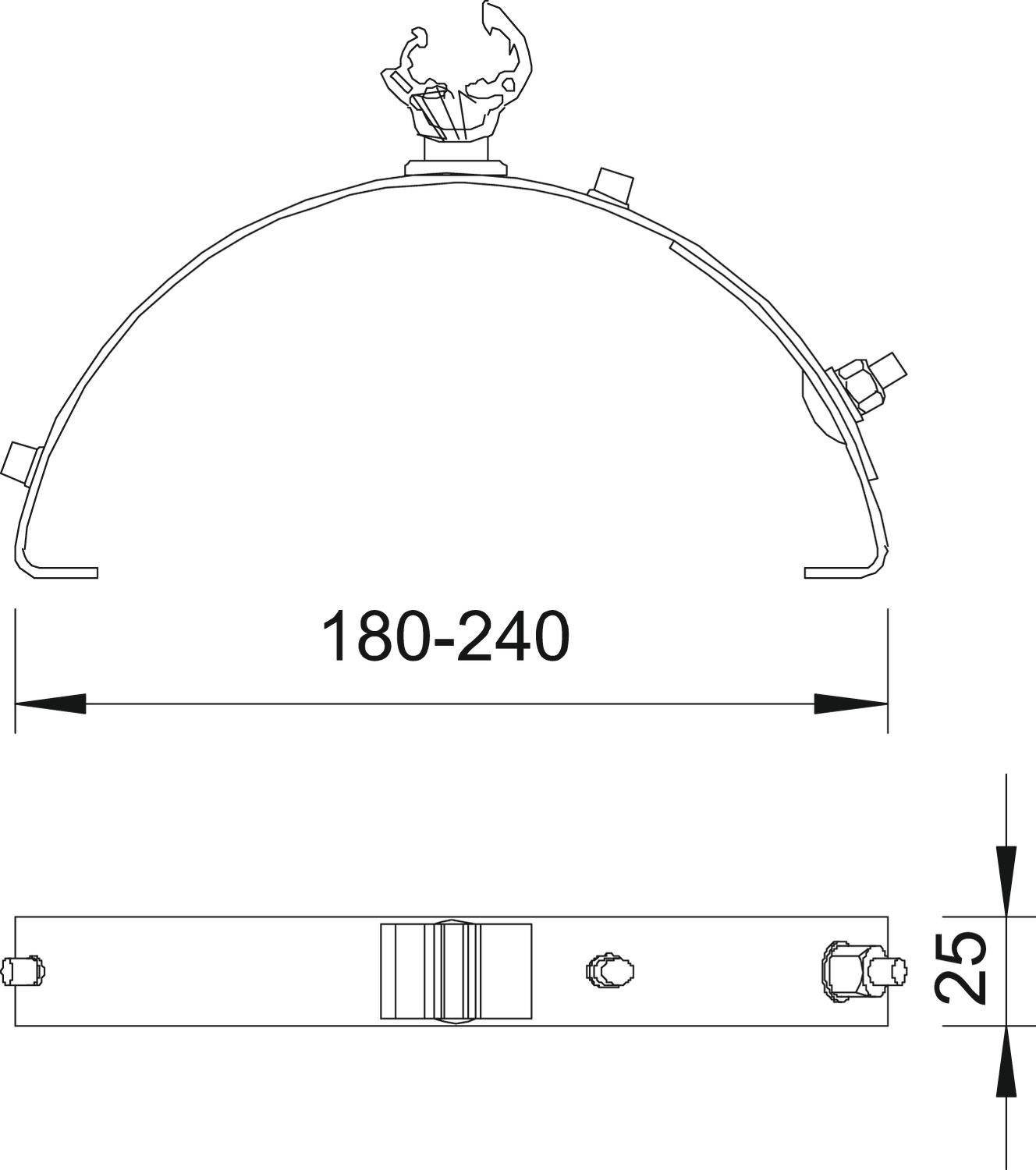

• Adjustable from 180–240 mm

• With conductor 177/20, polyamide, grey

• With 3 M8 threaded nipples for positioning the holder
Technical data

Technical data

Application Ridge
Clamping range D, max. 240 mm
Clamping range D, min. 180 mm
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Fit Rd 8-10 mm
Material Steel
Mounting height 20 mm
Mounting type Tensionable
Surface Hot-dip galvanised
All types

All types

Types Mounting height Fit Item no. Quantity SSU
132 N-DK 20 mm Rd 8-10 mm 5202566
20 piece
