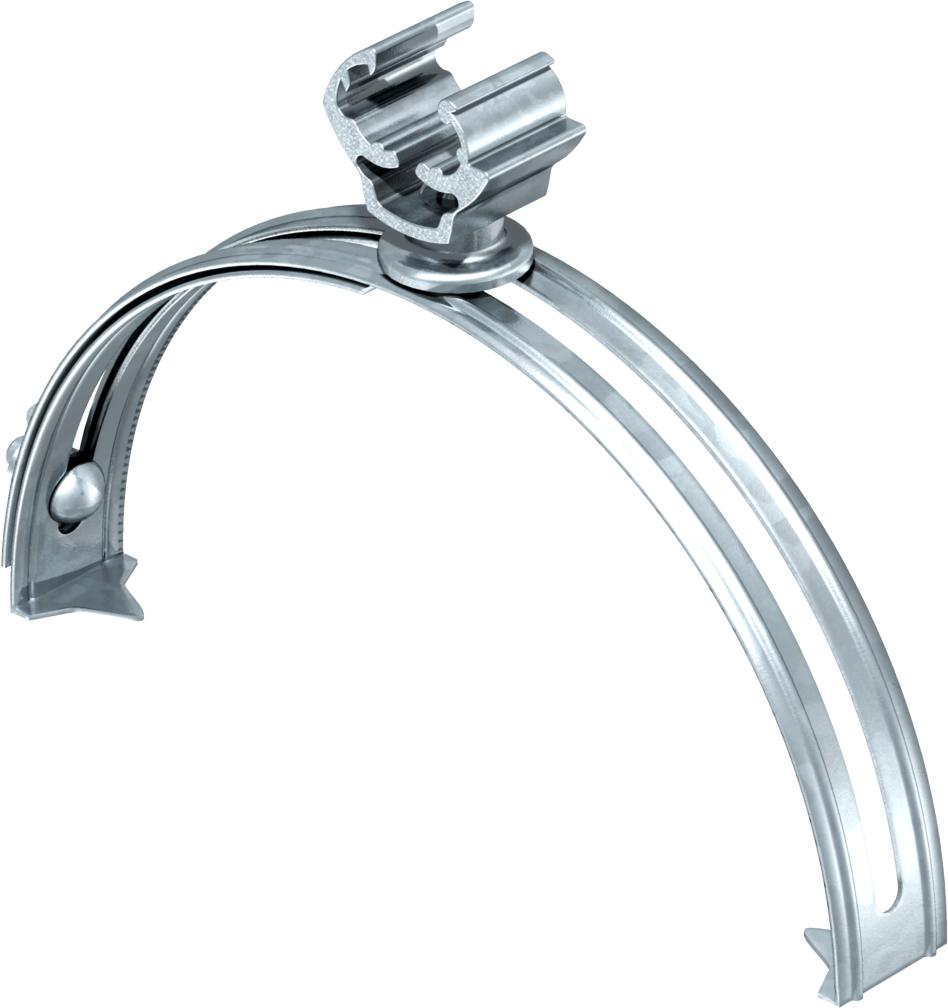

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8–10, A2

Item no. 5202515 | EAN 4012195403036

5202515 / 132 K-VA
20 mm
Rd 8-10 mm
Product description

Product description

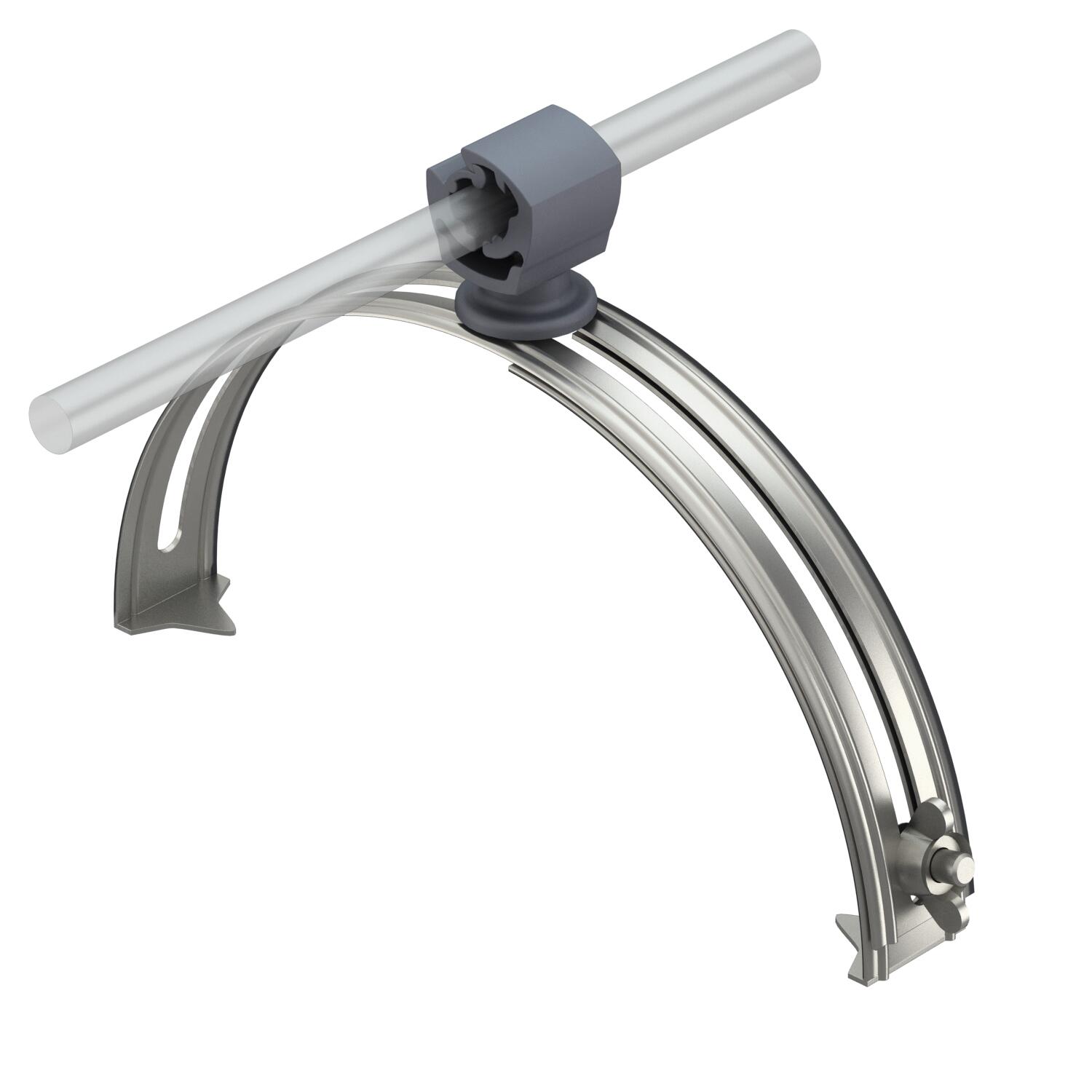

132/..: Roof conductor holder for ridge tiles

• Adjustable width from 185-260 mm
• Bottom part made of non-rusting stainless steel (V2A)
or of copper
• Infinitely adjustable conductor holder
• Conductor holder of polyamide
• For round conductor Rd 8-10
• Fast installation using wing screw


Technical data

Technical data

Application Ridge
Clamping range D, max. 260 mm
Clamping range D, min. 185 mm
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Fit Rd 8-10 mm
Material Stainless steel
Mounting height 20 mm
Mounting type Tensionable
All types

All types

Types Mounting height Fit Item no. Quantity SSU
132 K-VA 20 mm Rd 8-10 mm 5202515
20 piece
