Roof conductor holder for ridge tiles, 185−260 mm, Rd 8, A2 20 | Rd 8

morepic-1

morepic-2

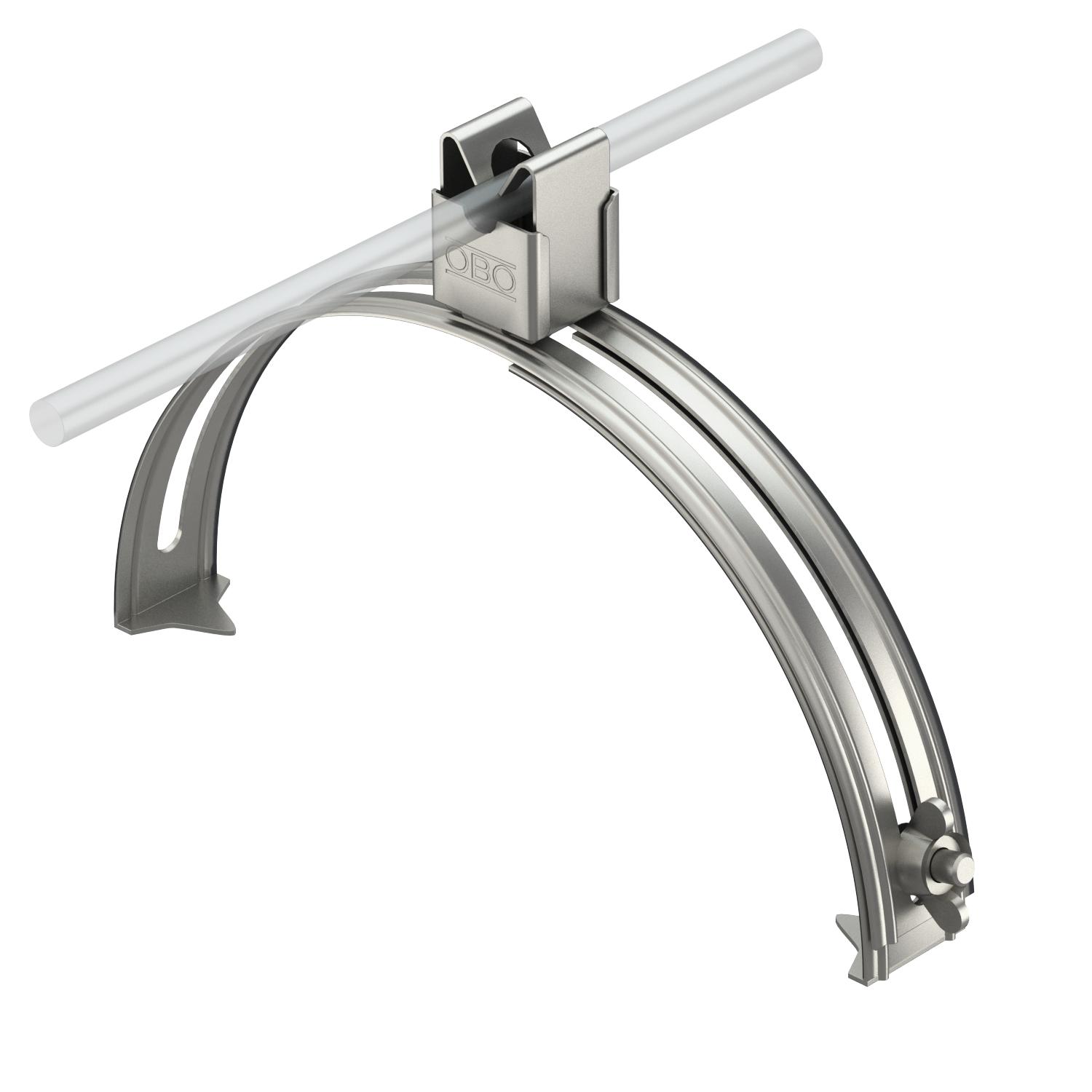

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8, A2

Item no. 5202833 | EAN 4012195403814

Item no. / Types	5202833 / 132 VA

Mounting height	20 mm

Fit	Rd 8 mm

Product description

Product description

• Adjustable width from 185-260 mm
• Fast installation using wing screw

Technical data

Technical data

Application	Ridge
Clamping range D, max.	260 mm
Clamping range D, min.	185 mm
Conductor diameter, max.	8
Conductor diameter, min.	8
Conductor fastening type	With clip

Dimension	8mm
Fit	Rd 8 mm
Material	Stainless steel
Mounting height	20 mm
Mounting type	Tensionable

All types

All types

Types	Mounting height	Fit	Item no.	Quantity	SSU
132 VA	20 mm	Rd 8 mm	5202833	piece	20 piece

Downloads

Data sheet 132 VA / 5202833 , 0.19MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 132 VA / 5202833 , 0.06MB , pdf

Download

REACH Declaration of conformity 132 VA / 5202833 , 0.12MB , pdf

Download

RoHS Declaration of conformity 132 VA / 5202833 , 0.12MB , pdf

Download

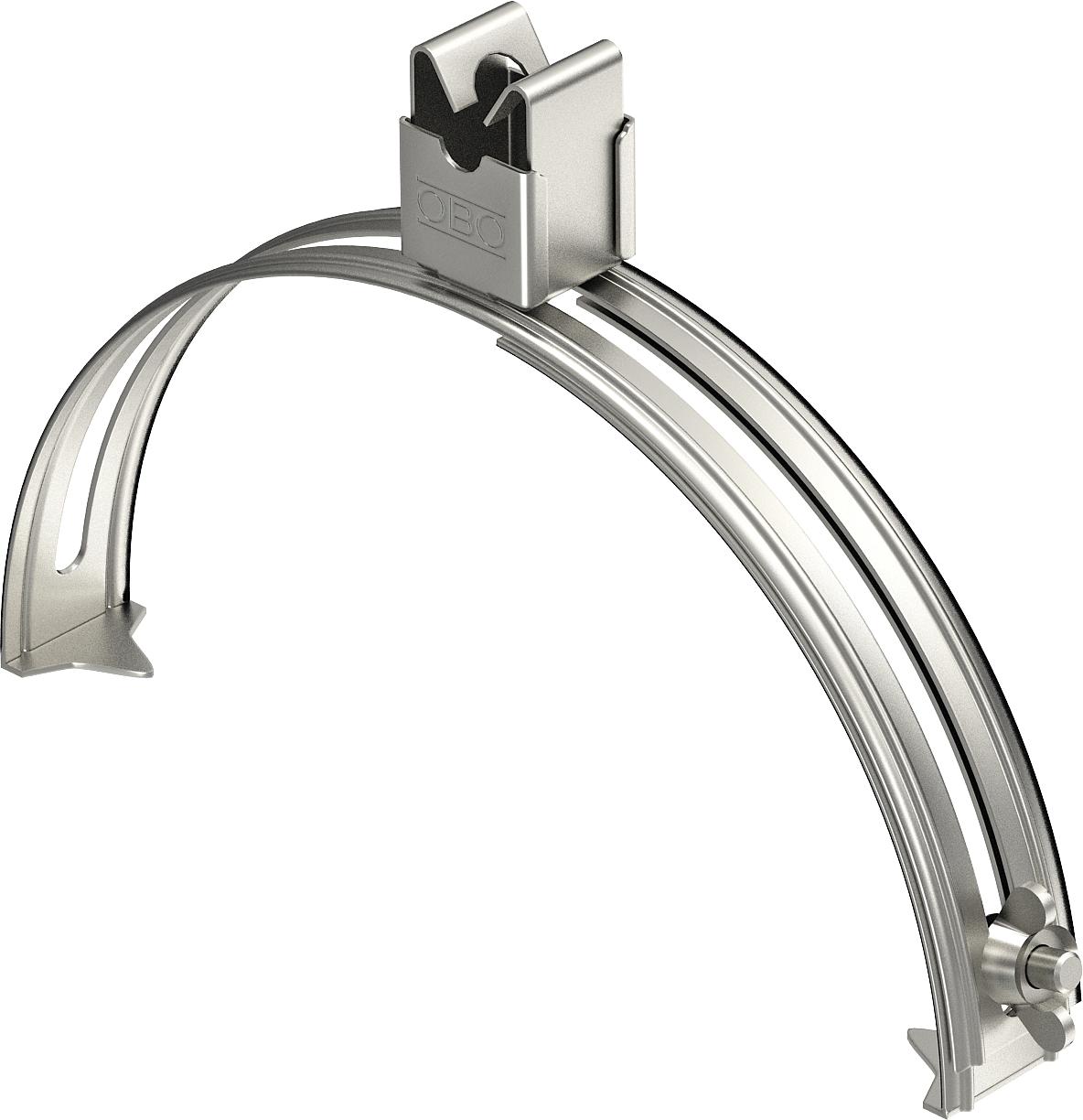

Product graphic 132 VA / 5202833, 80.43 kB, jpg

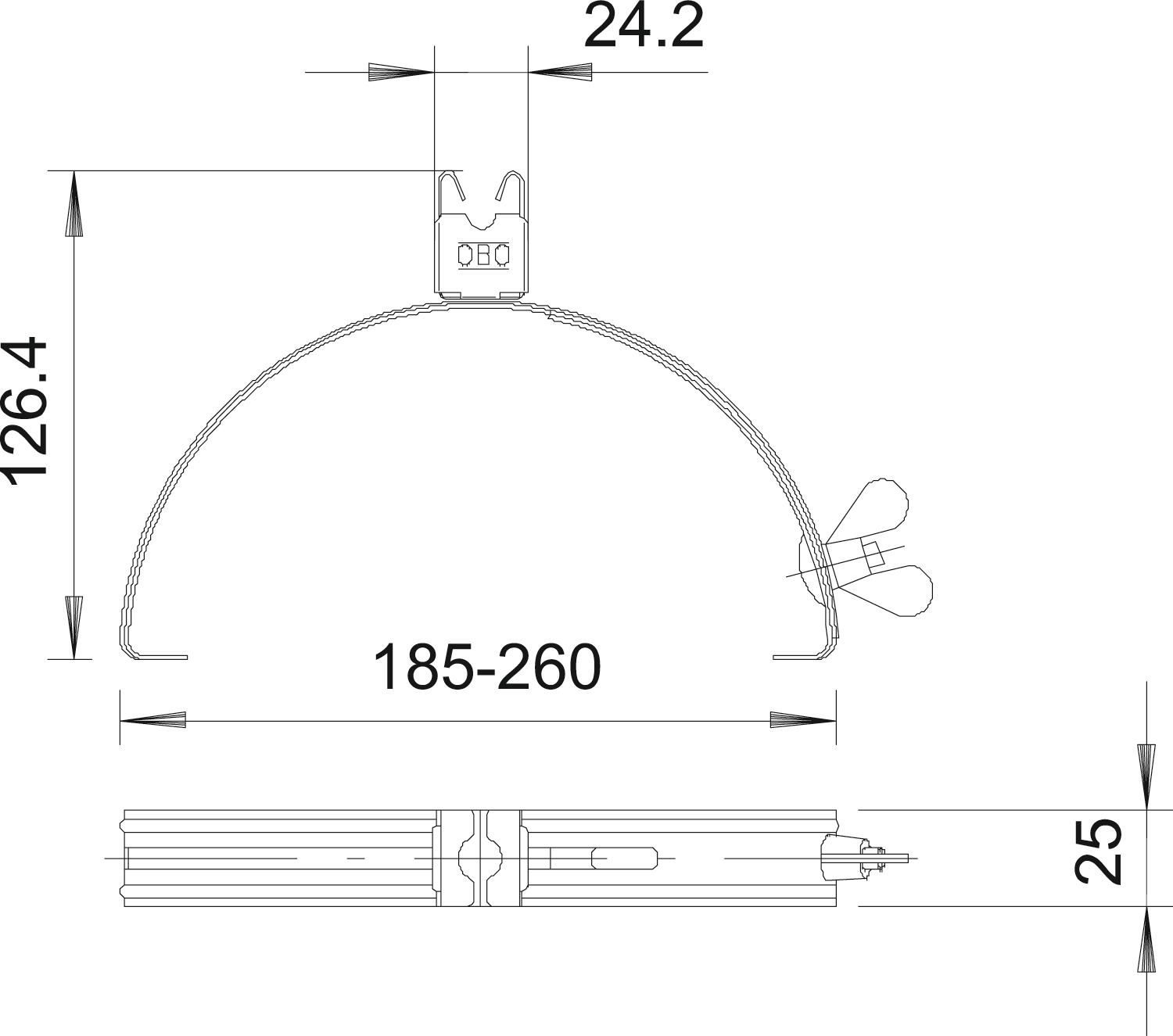

Scale drawing 132 VA / 5202833, 78.41 kB, jpg
