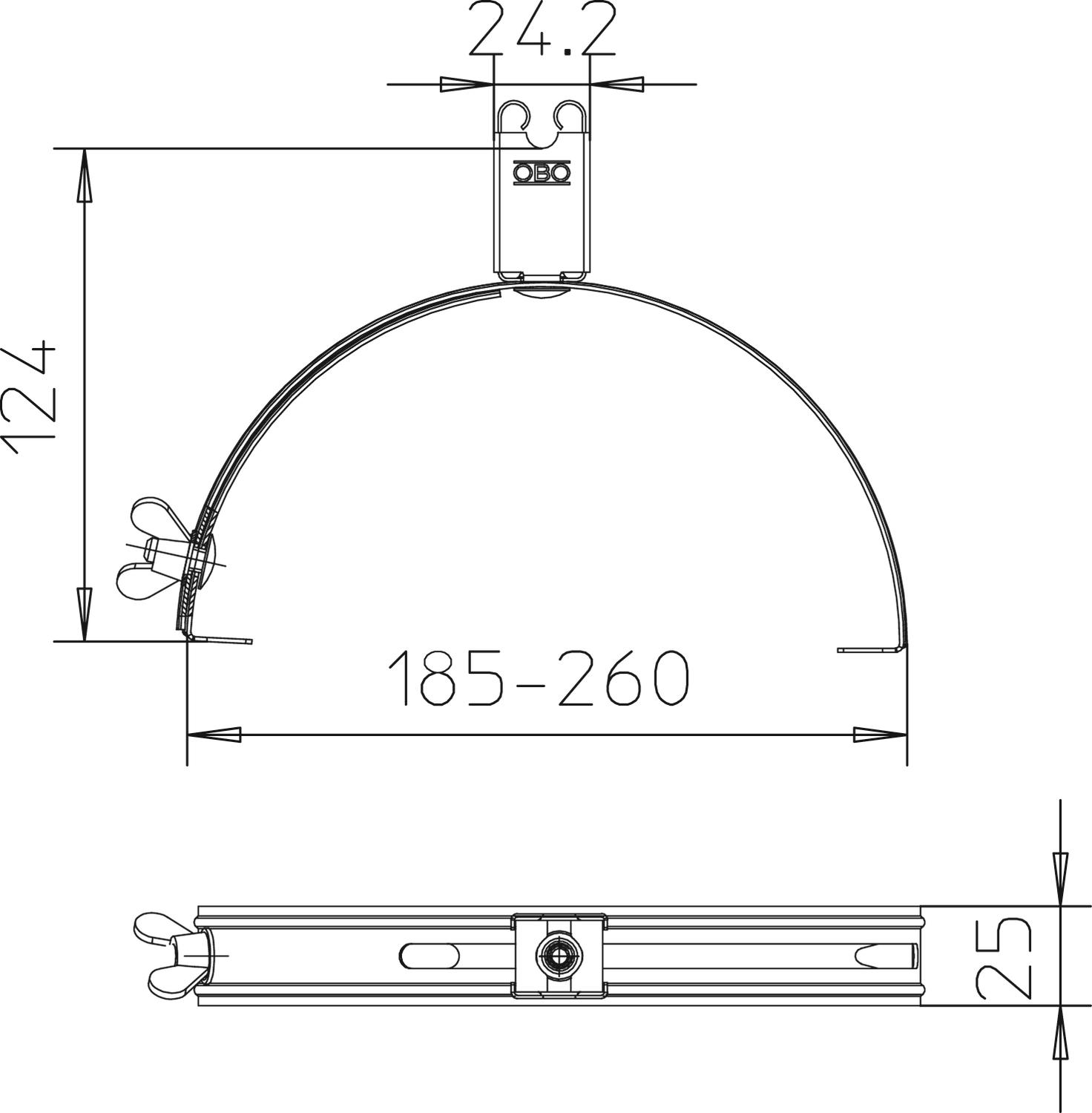

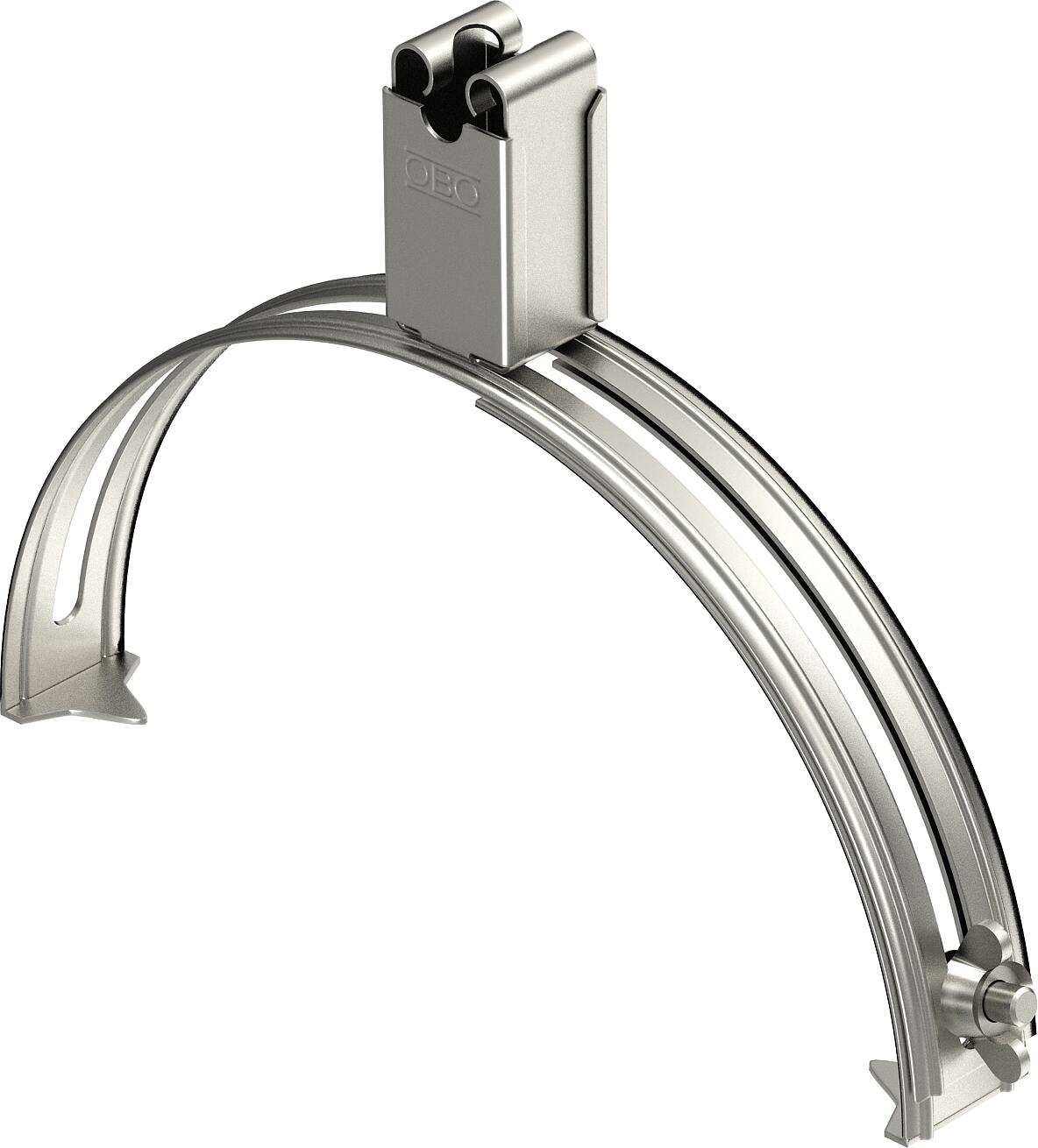

Roof conductor holder for ridge tiles, 185−260 mm, Rd 8, A2

Item no. 5202836 | EAN 4012195784920

5202836 / 132 VA 35
35 mm
Rd 8 mm
Product description

Product description

• Adjustable width from 185-260 mm
• Fast installation using wing screw
Technical data

Technical data

Application Ridge
Clamping range D, max. 260 mm
Clamping range D, min. 185 mm
Conductor diameter, max. 8
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 35 mm
Fit Rd 8 mm
Material Stainless steel
Mounting height 35 mm
Mounting type Tensionable
All types

All types

Types Mounting height Fit Item no. Quantity SSU
132 VA 35 35 mm Rd 8 mm 5202836
20 piece
