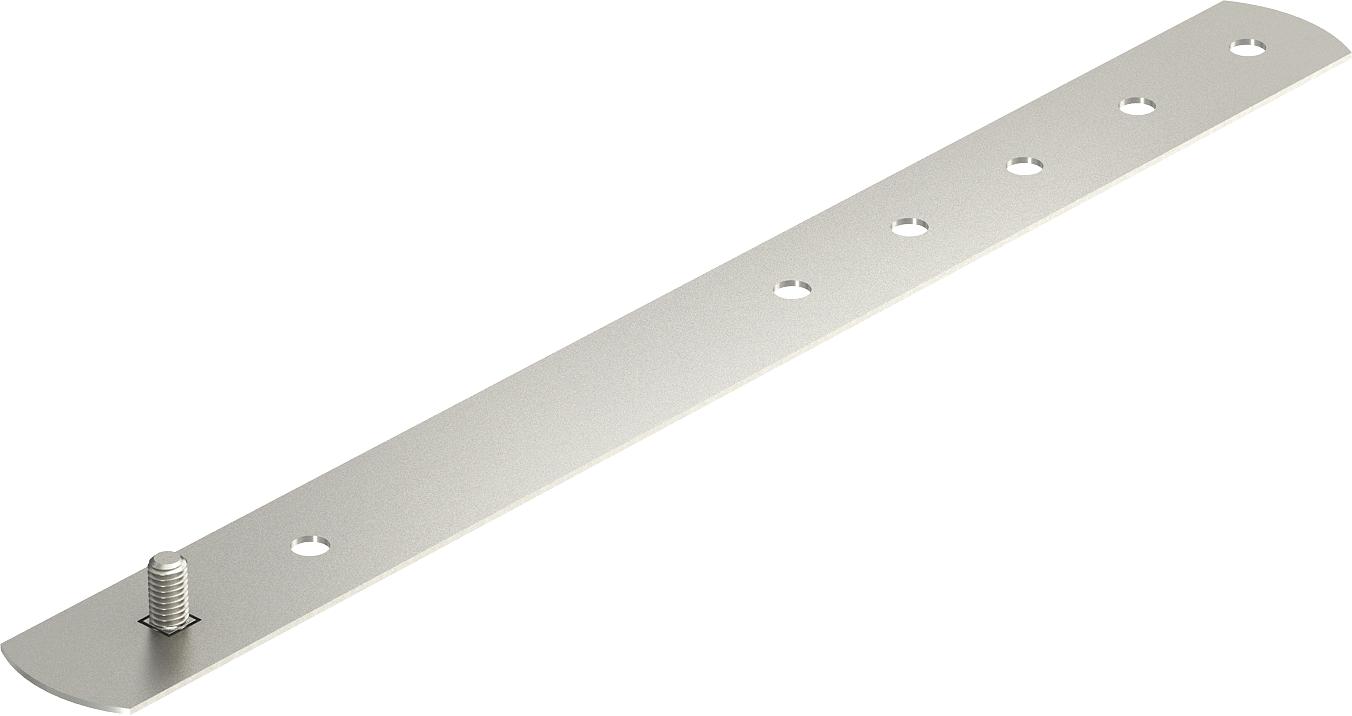

Roof conductor holder for slated roofs

Item no. 5202569 | EAN 4012195894223

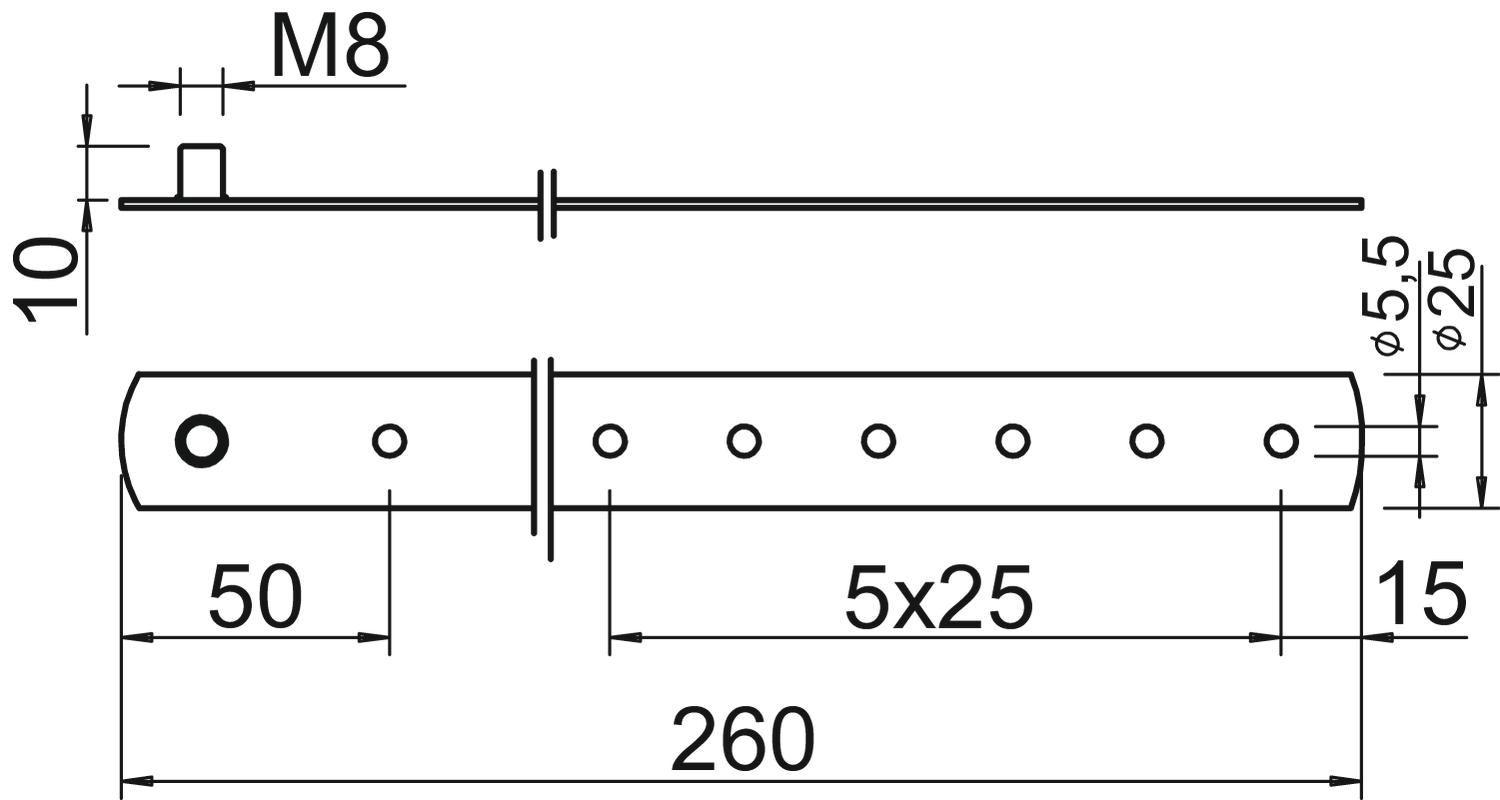

5202569 / 157 GB-M8
260 mm
27 mm
Rd 8-10 mm
Product description

Product description

• With Ø 5.5 mm drill hole

• With 3 M8 threaded nipples for positioning the holder
Technical data

Technical data

Application Slate roof
Conductor fastening type Miscellaneous
Dimension 260mm
Fit Rd 8-10 mm
Length 260 mm
Material Stainless steel
Mounting height 27 mm
Mounting type Screw-on
All types

All types

Types Length Mounting height Fit Item no. Quantity SSU
157 GB-M8 260 mm 27 mm Rd 8-10 mm 5202569
100 piece
