- Product description
-
Product description

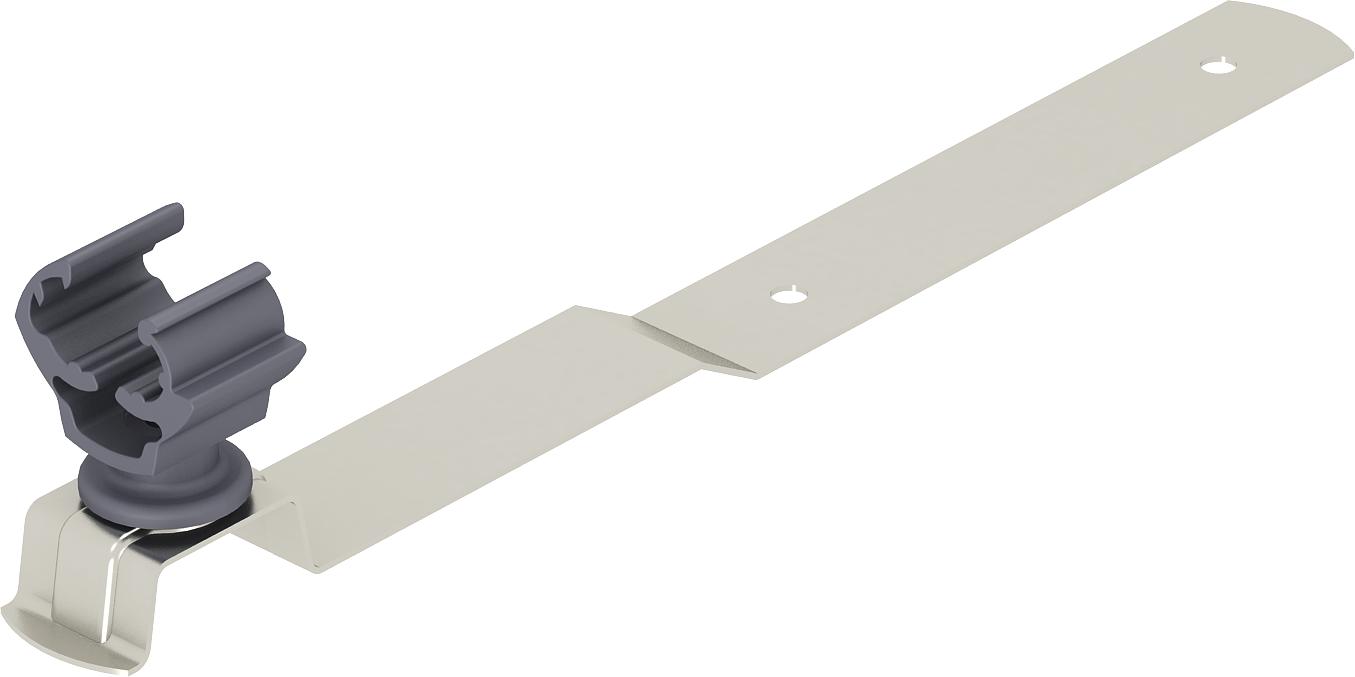

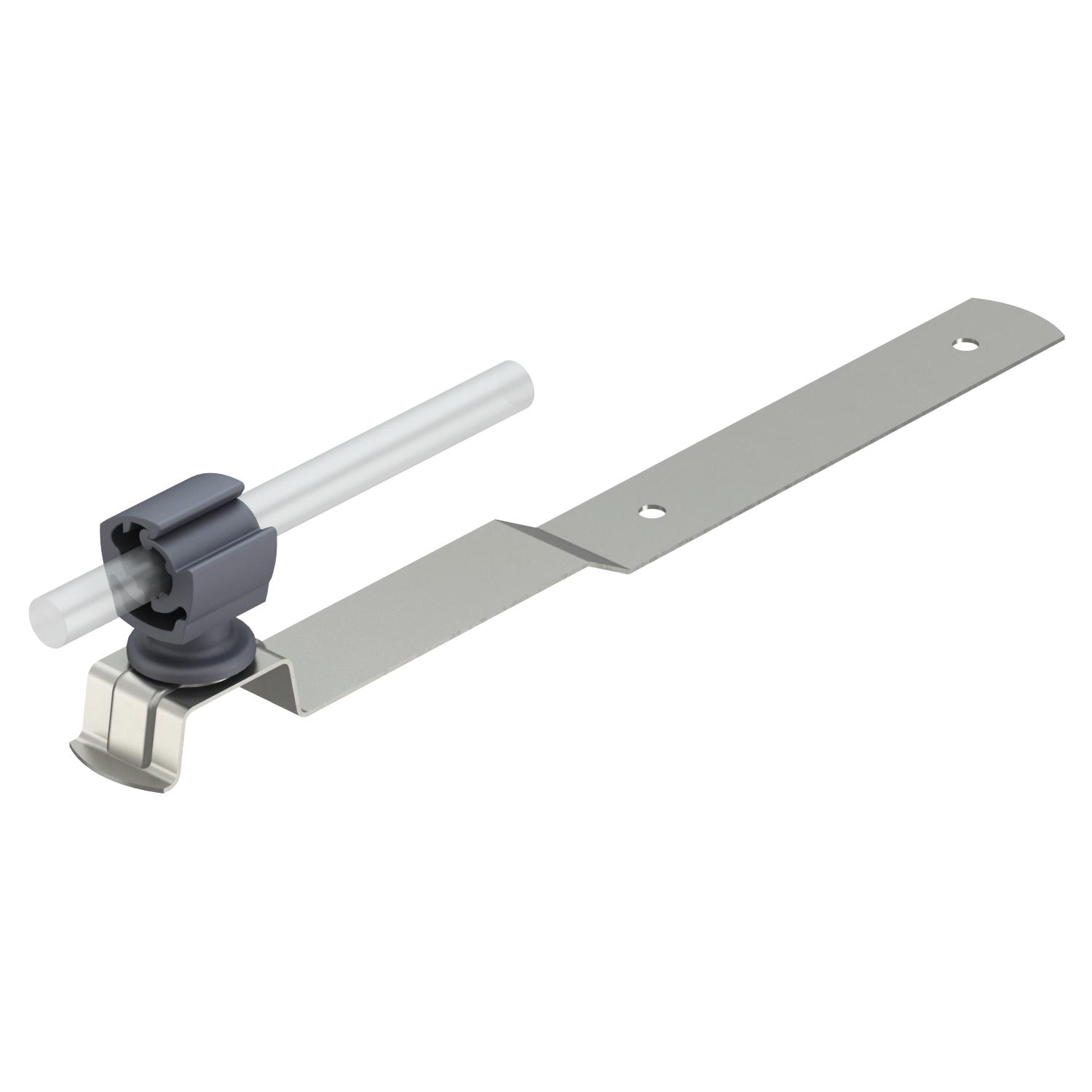

• Conductor holder of polyamide
• With Ø 5.5 mm drill hole
- Technical data
-
Technical data

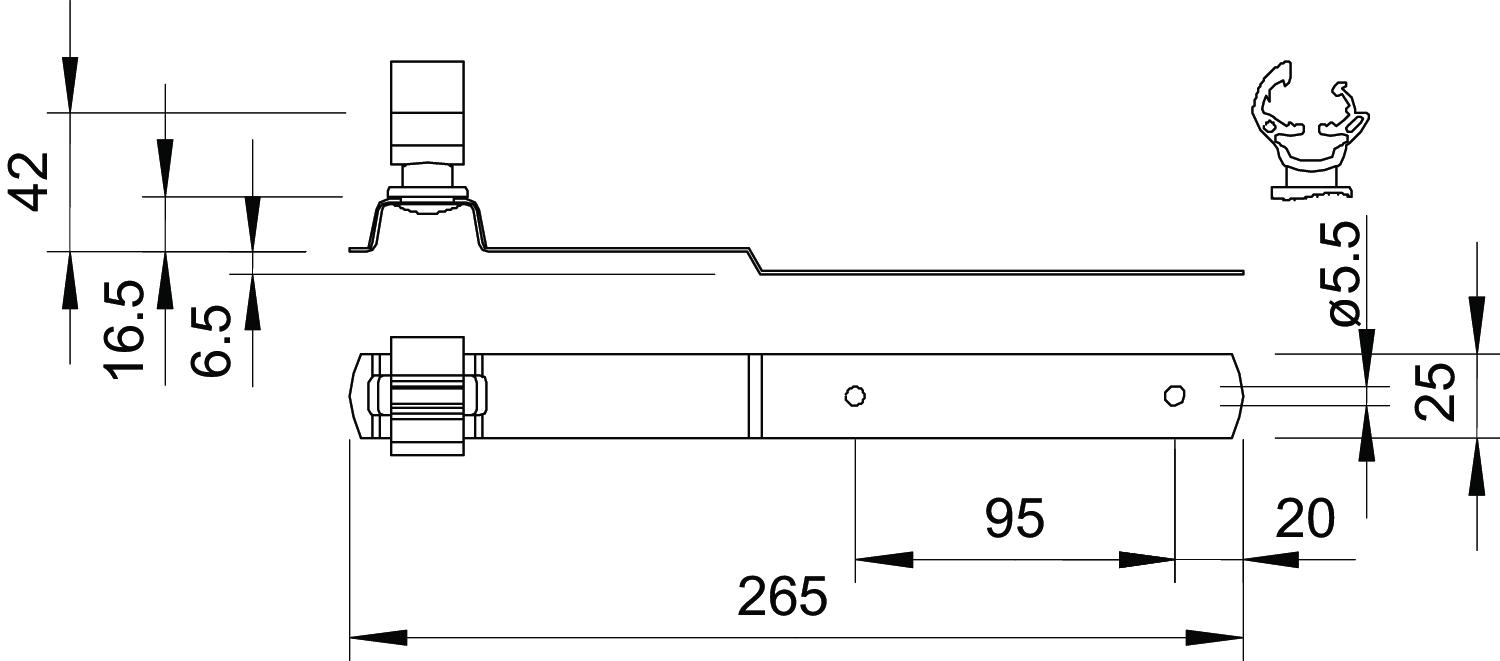

Application Roof surface Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Fit Rd 8-10 mm Length 265 mm Material Stainless steel Mounting height 42 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 EK-VA / 5215838 , 0.15MB , pdfDeclaration of conformity 157 EK-VA / 5215838 , 0.06MB , pdfREACH Declaration of conformity 157 EK-VA / 5215838 , 0.12MB , pdfRoHS Declaration of conformity 157 EK-VA / 5215838 , 0.12MB , pdf
