Roof conductor holder for slated roofs, Rd 8−10, A2 212 | 38 | Rd 8-10
morepic-1 morepic-2 video-1

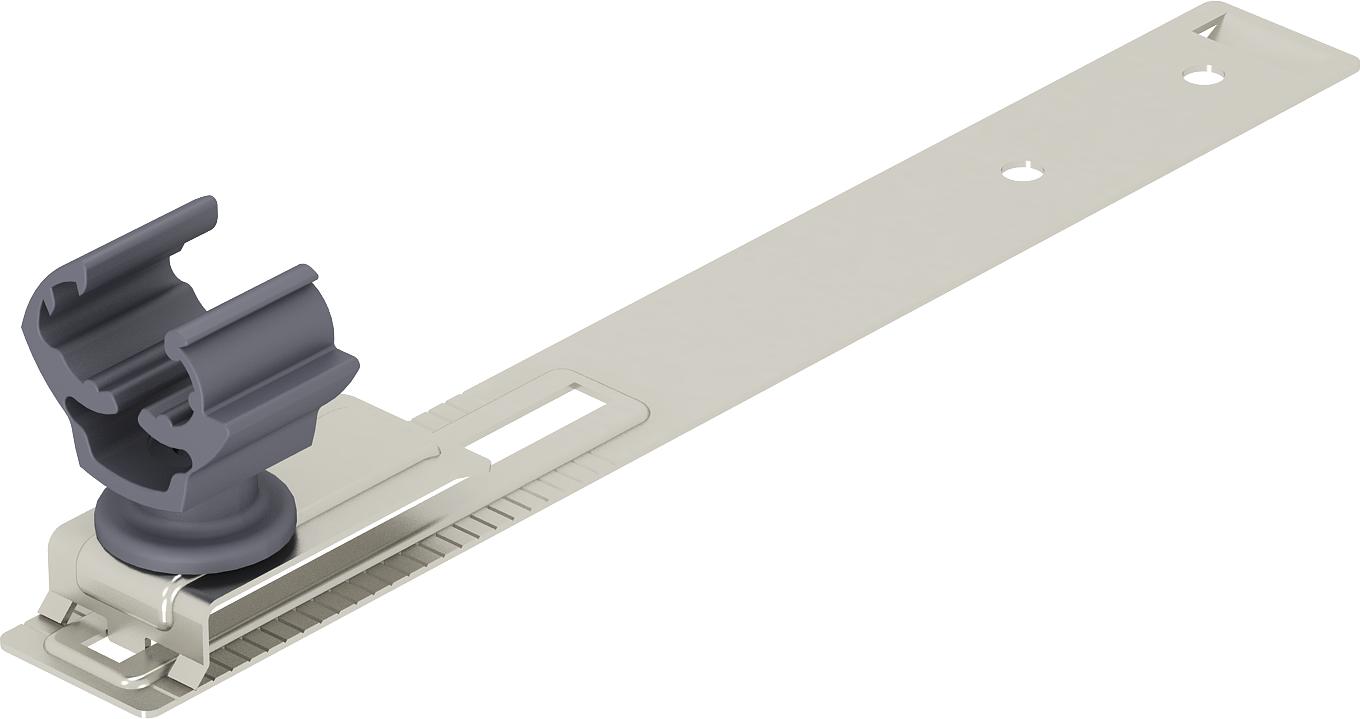

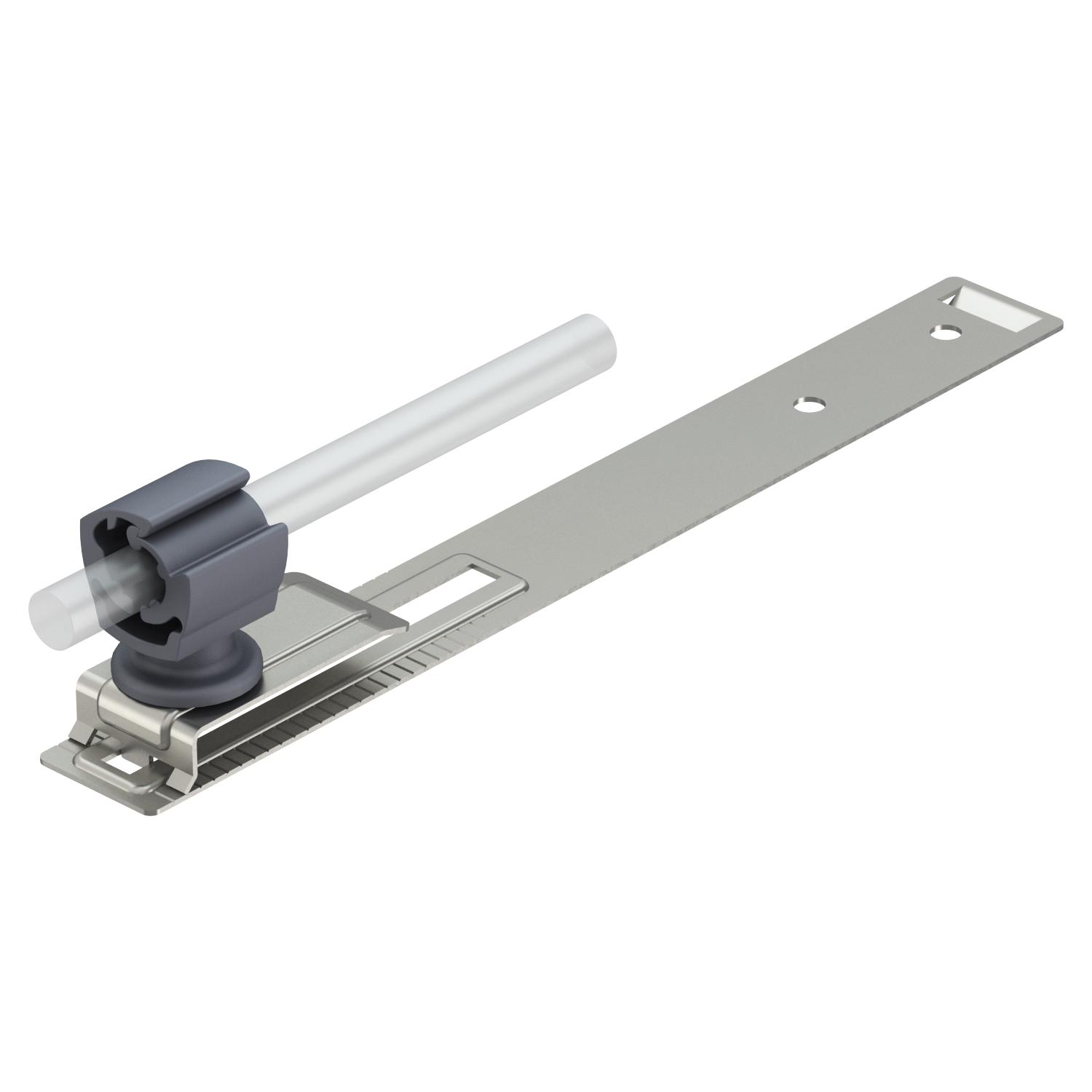

Roof conductor holder for slated roofs, Rd 8−10, A2

Item no. 5215374 | EAN 4012195811879

5215374 / 157 LK-VA
212 mm
38 mm
Rd 8-10 mm
Product description

Product description

• With Ø 5.5 mm drill hole and beading
• Conductor holder of polyamide
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 210mm
Fit Rd 8-10 mm
Material Stainless steel
Mounting height 38 mm
Mounting type Screw-on

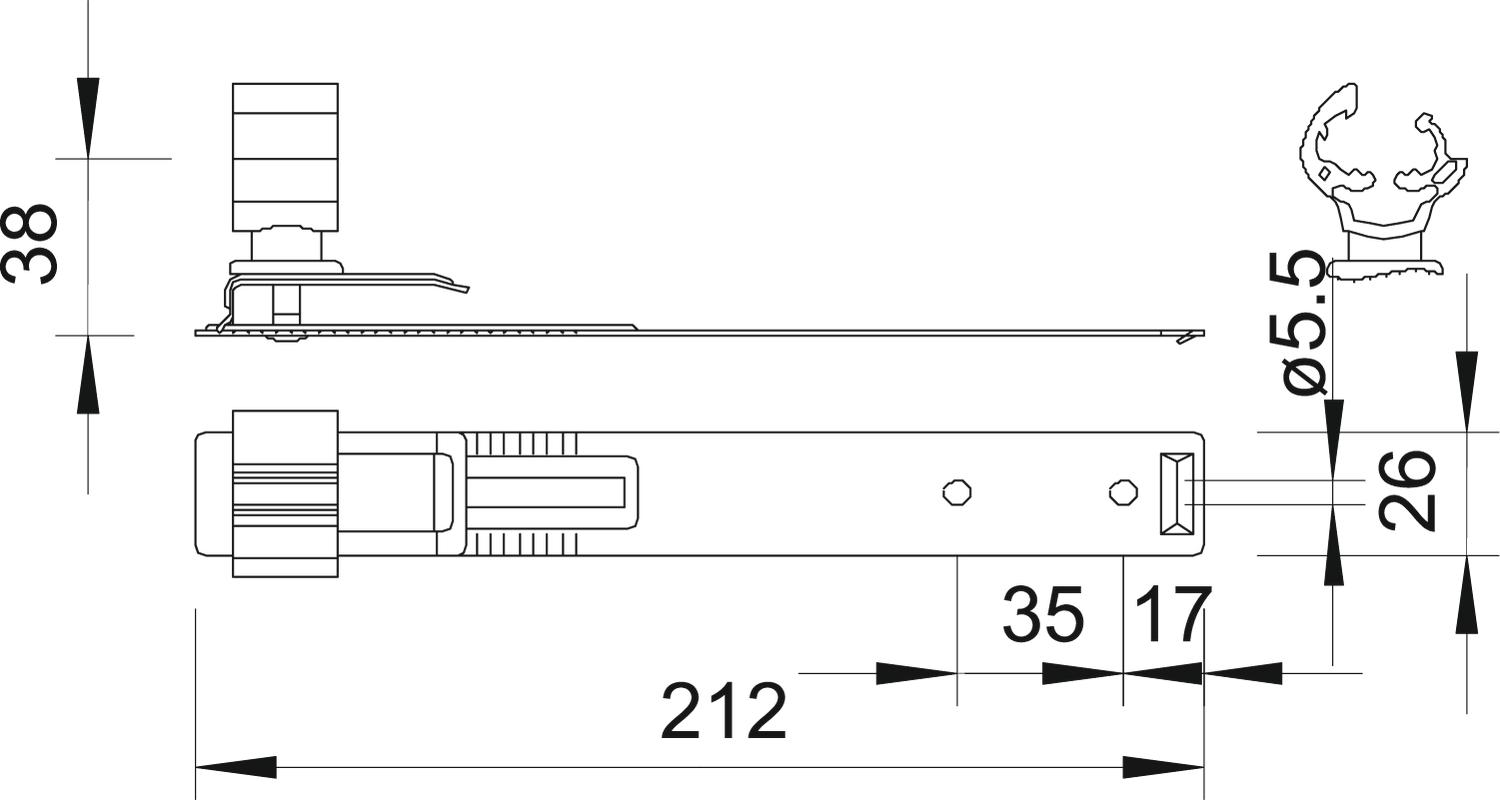

Dimensions

Length 212 mm
All types

All types

Types Length Mounting height Fit Item no. Quantity SSU
157 LK-VA 212 mm 38 mm Rd 8-10 mm 5215374
20 piece
Downloads

Download

Download
Download

Declaration of conformity 157 LK-VA / 5215374 , 0.06MB , pdf
Download
REACH Declaration of conformity 157 LK-VA / 5215374 , 0.12MB , pdf
Download
RoHS Declaration of conformity 157 LK-VA / 5215374 , 0.12MB , pdf
Download

157 LK-VA / 5215374
