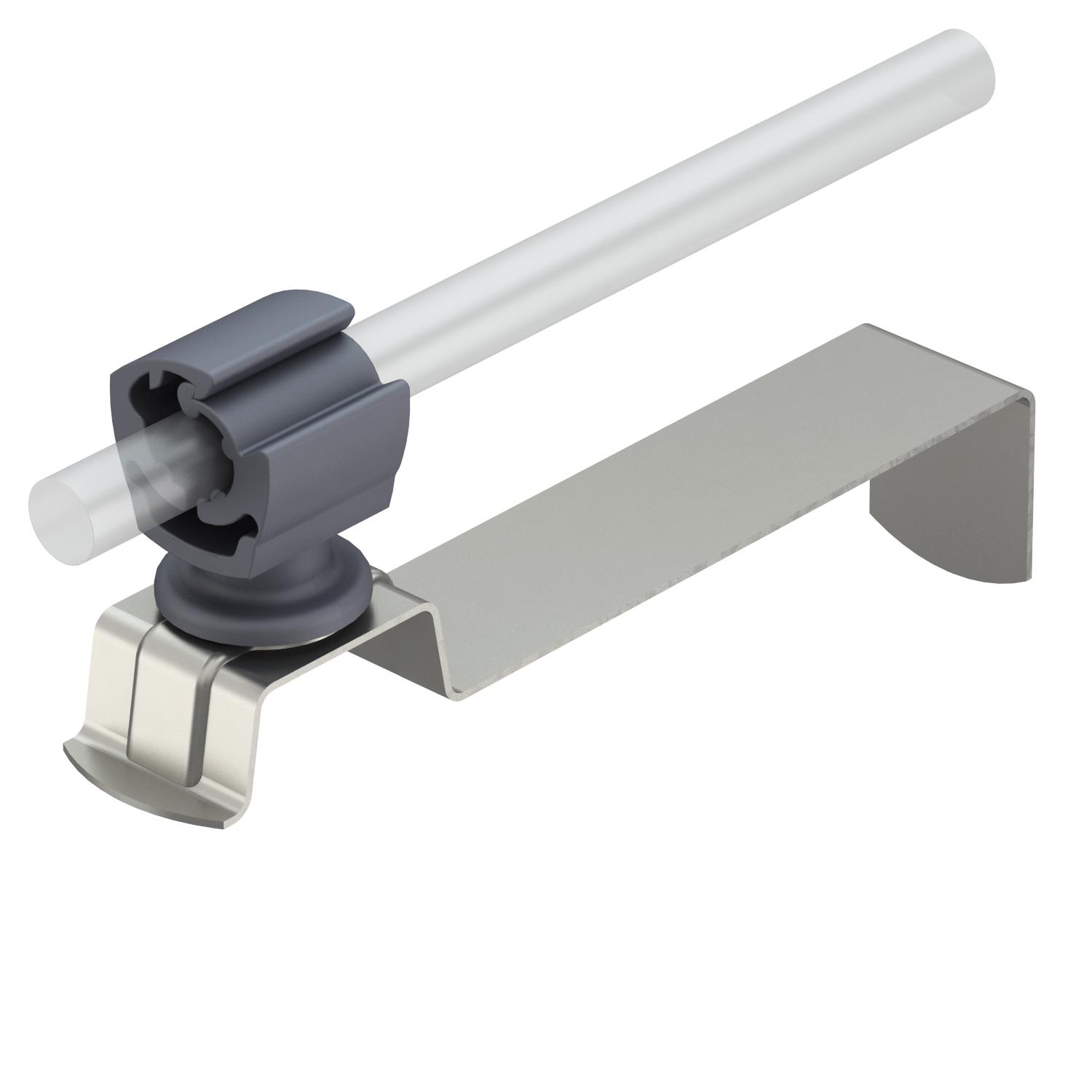

Roof conductor holder for tiled roofs, angled, Rd 8−10

Item no. 5215668 | EAN 4012195812531

5215668 / 157 IK-VA
140 mm
Rd 8-10 mm
Product description

Product description

• Conductor holder of polyamide
• Curved bottom strip for quick installation
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Fit Rd 8-10 mm
Length 140 mm
Material Stainless steel
Mounting height 40 mm
Mounting type For suspension
All types

All types

Types Length Fit Item no. Quantity SSU
157 IK-VA 140 mm Rd 8-10 mm 5215668
20 piece
