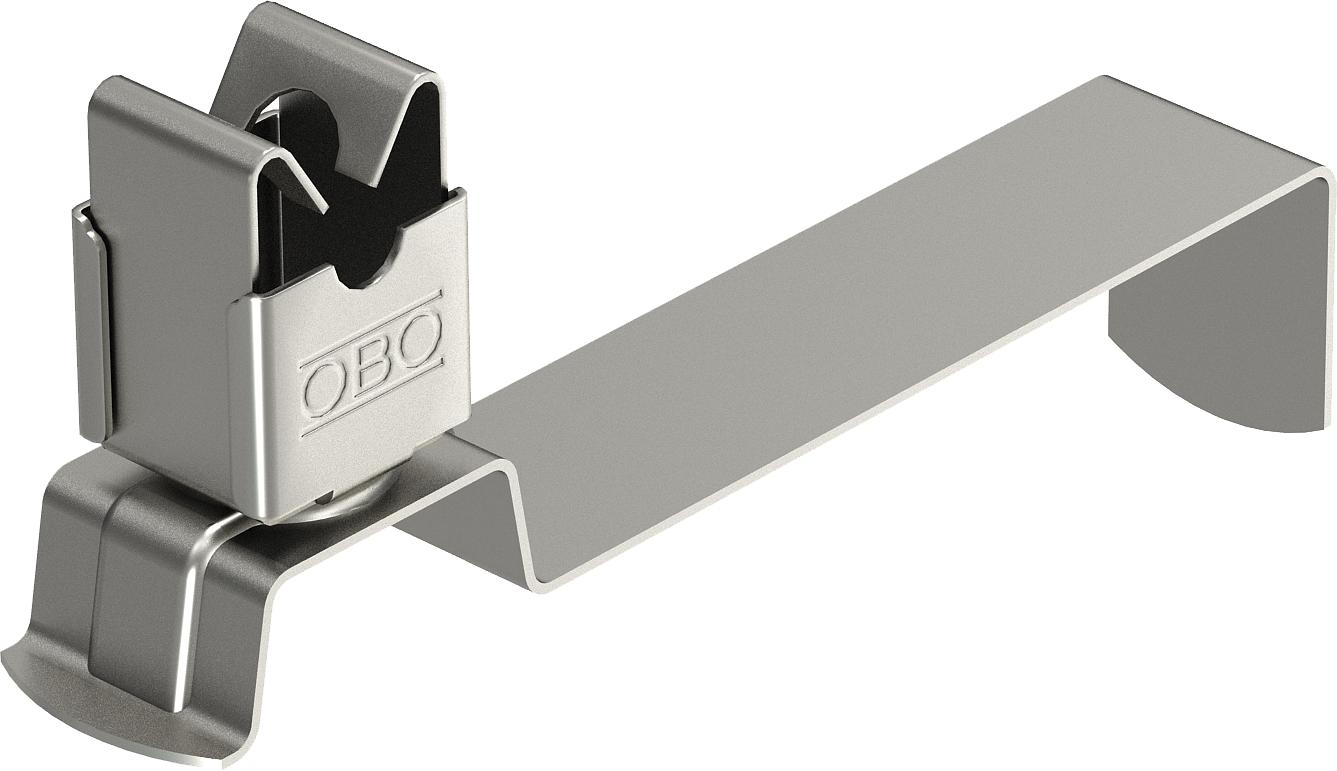

Roof conductor holder for tiled roofs, angled, Rd 8

Item no. 5215625 | EAN 4012195407355

5215625 / 157 I-VA
140 mm
Rd 8 mm
Product description

Product description

• Conductor holder high-grade stainless steel (V2A)

• Curved bottom strip for quick installation
Technical data

Technical data

Application Roof surface
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 8mm
Fit Rd 8 mm
Length 140 mm
Material Stainless steel
Mounting height 26,5 mm
Mounting type For suspension
All types

All types

Types Length Fit Item no. Quantity SSU
157 I-VA 140 mm Rd 8 mm 5215625
20 piece
