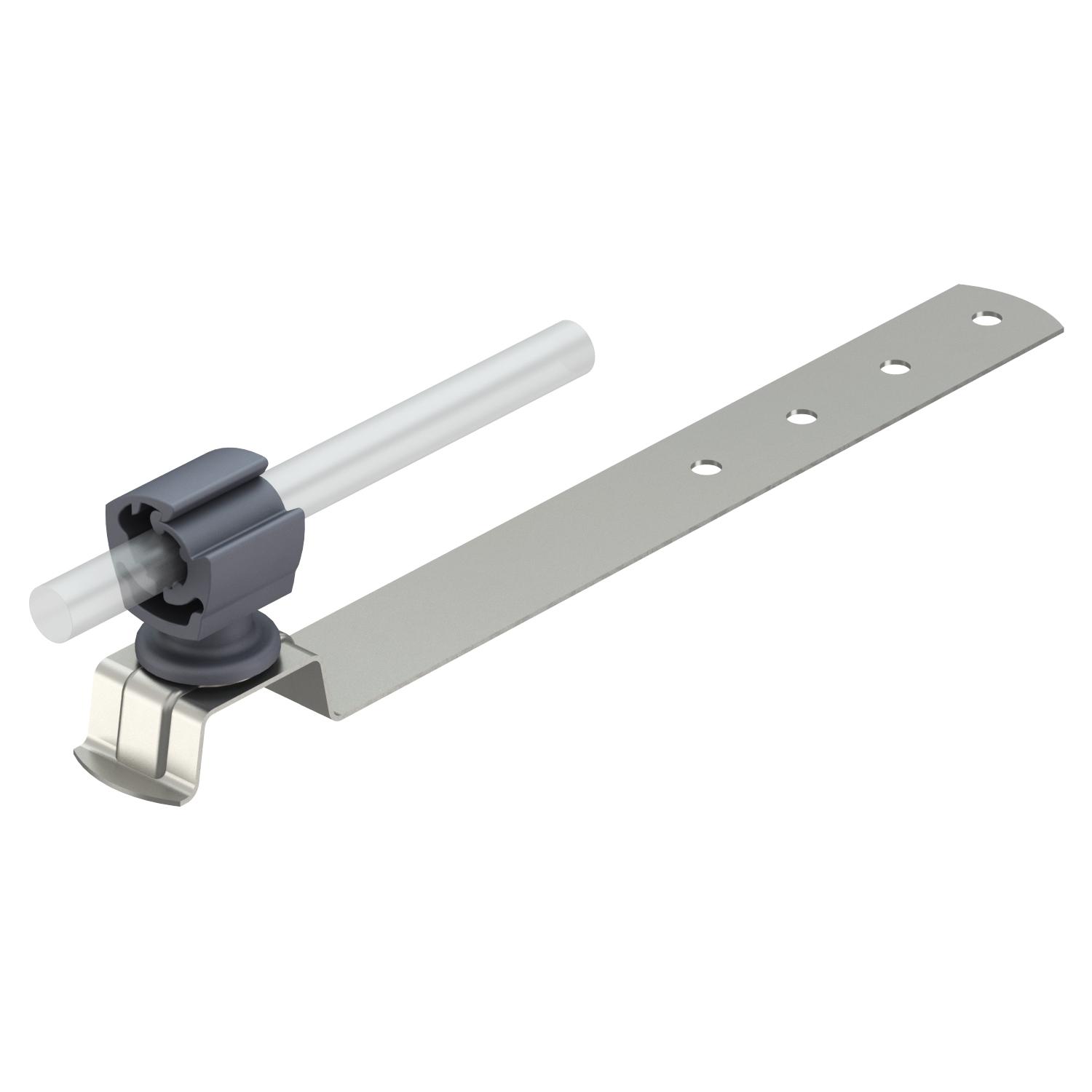

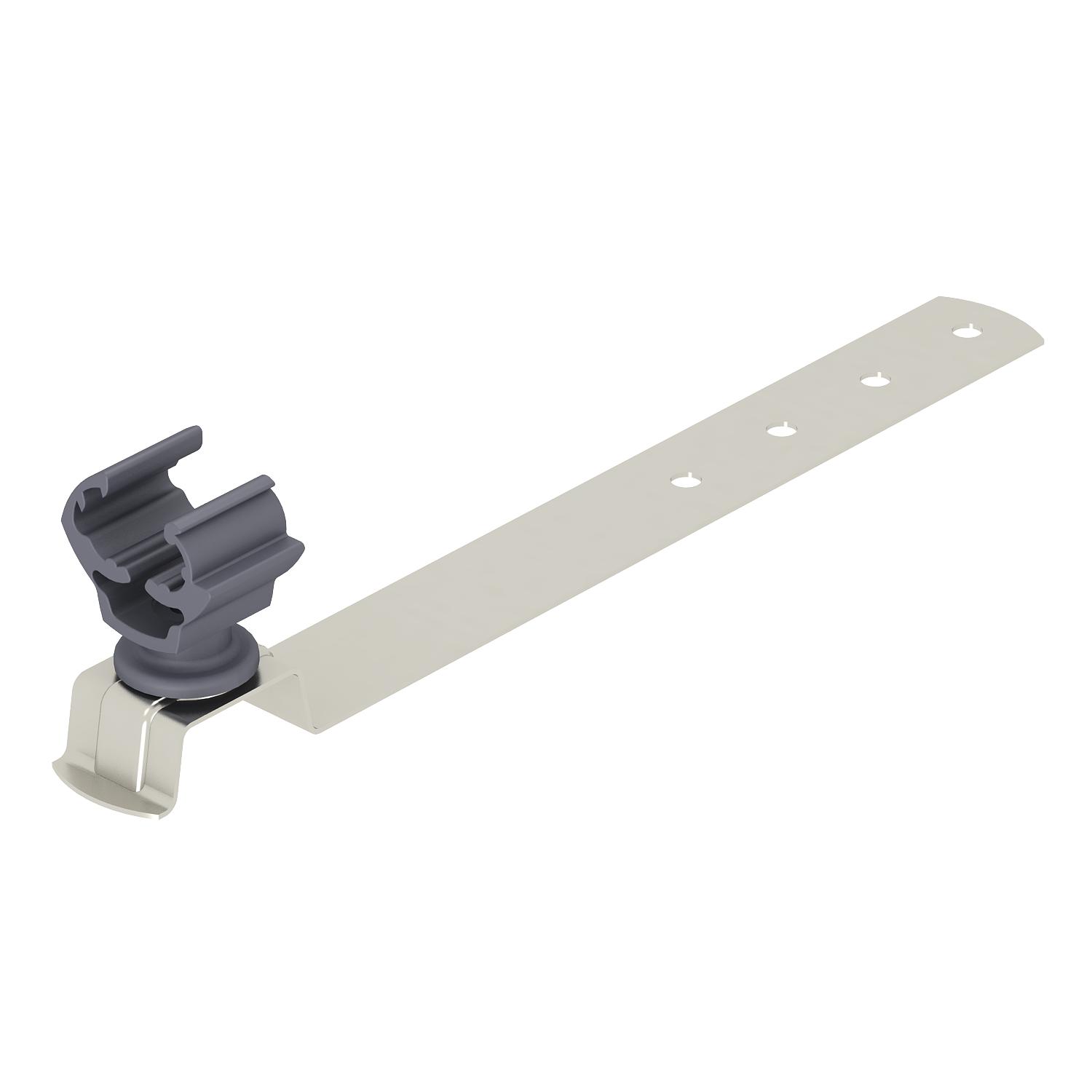

Roof conductor holder for tiled roofs, Rd 8−10

Item no. 5215544 | EAN 4012195902591

Rd 8-10 mm
Product description

Product description

• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation

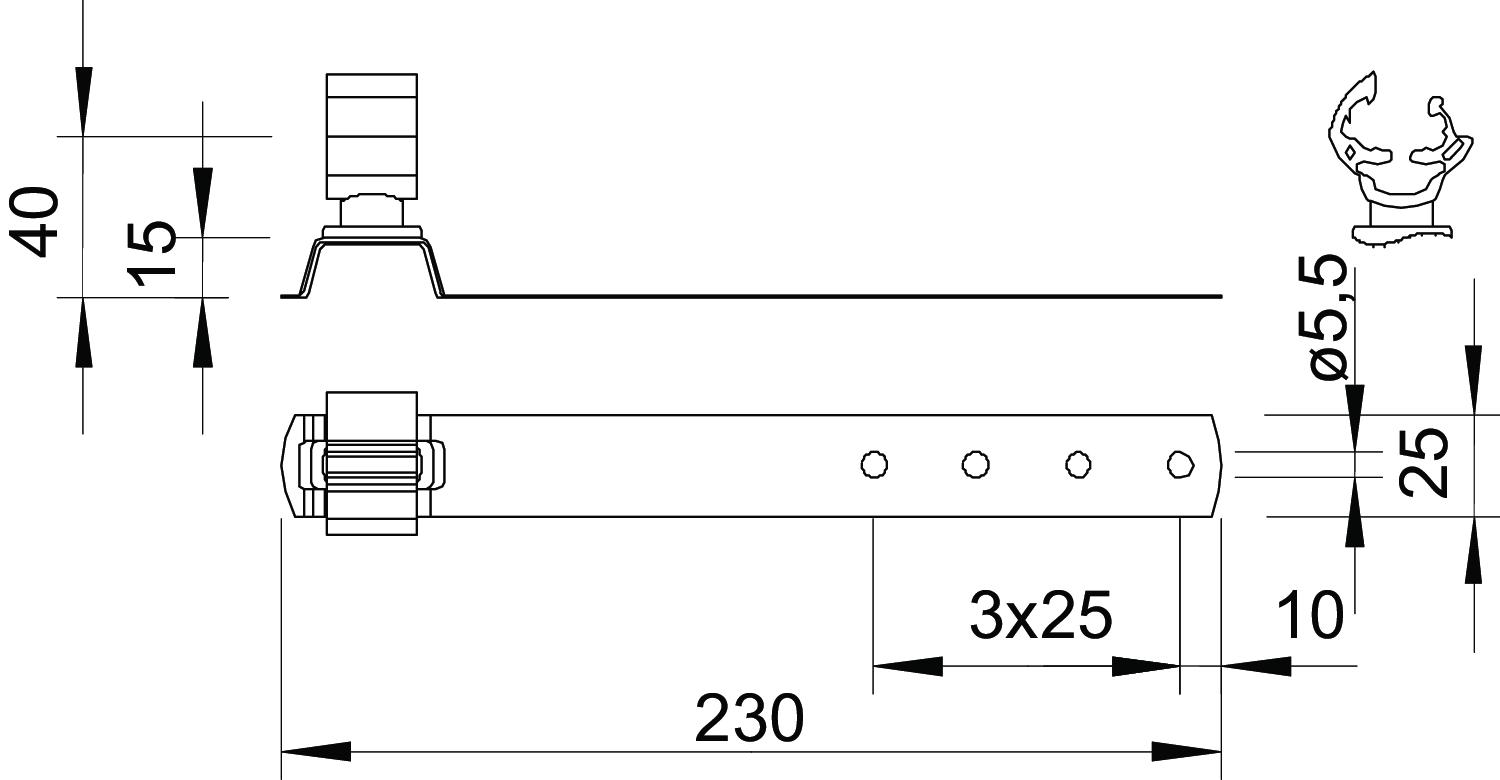

Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Dimension L 230 mm
Fit Rd 8-10 mm
Length 230 mm
Material Stainless steel
Mounting height 40 mm
Mounting type Screw-on
All types

All types

Types Length Fit Item no. Quantity SSU
157 FK-VA 230 230 mm Rd 8-10 mm 5215544
20 piece
157 FK-VA 280 280 mm Rd 8-10 mm 5215587
20 piece
157 FK-VA 410 410 mm Rd 8-10 mm 5215609
20 piece
