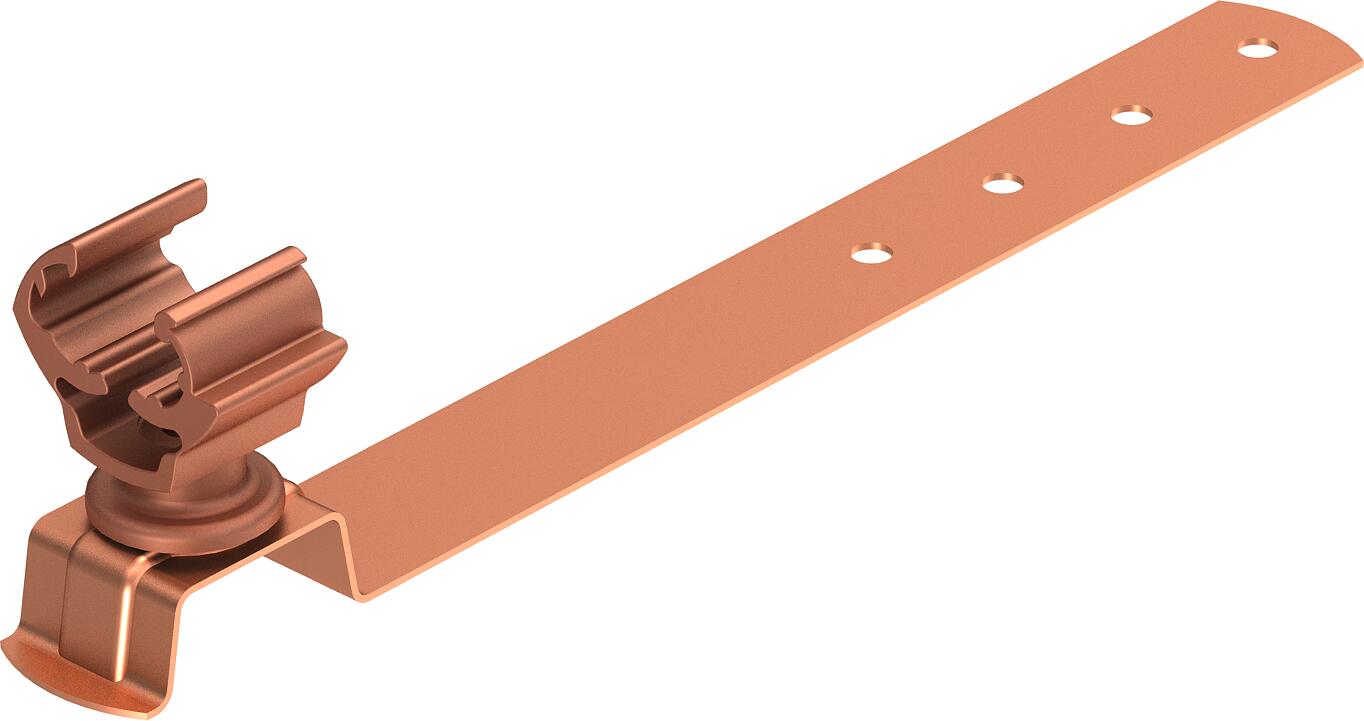

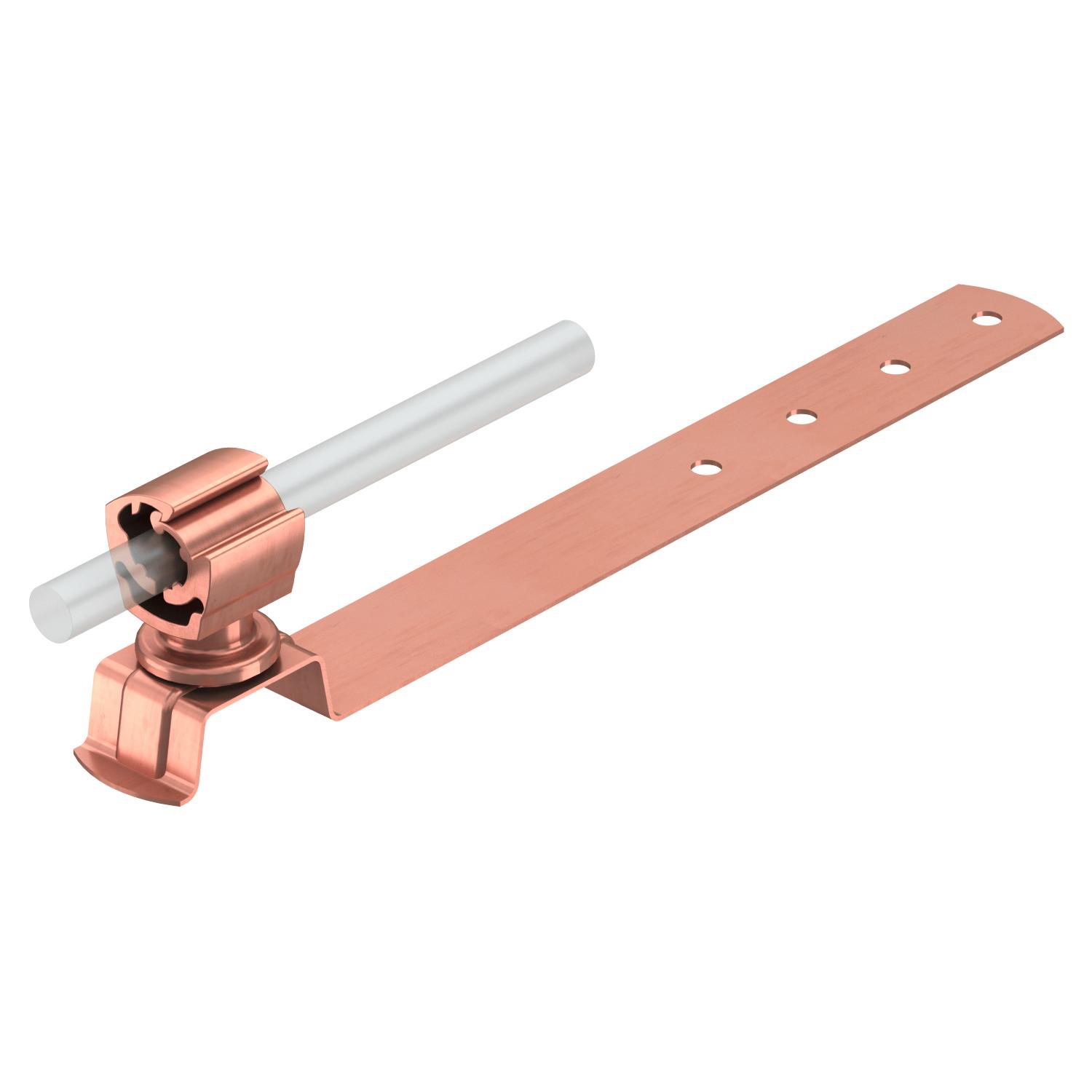

Roof conductor holder for tiled roofs, Rd 8−10

Item no. 5216184 | EAN 4012195902652

Rd 8-10 mm
Product description

Product description

• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip

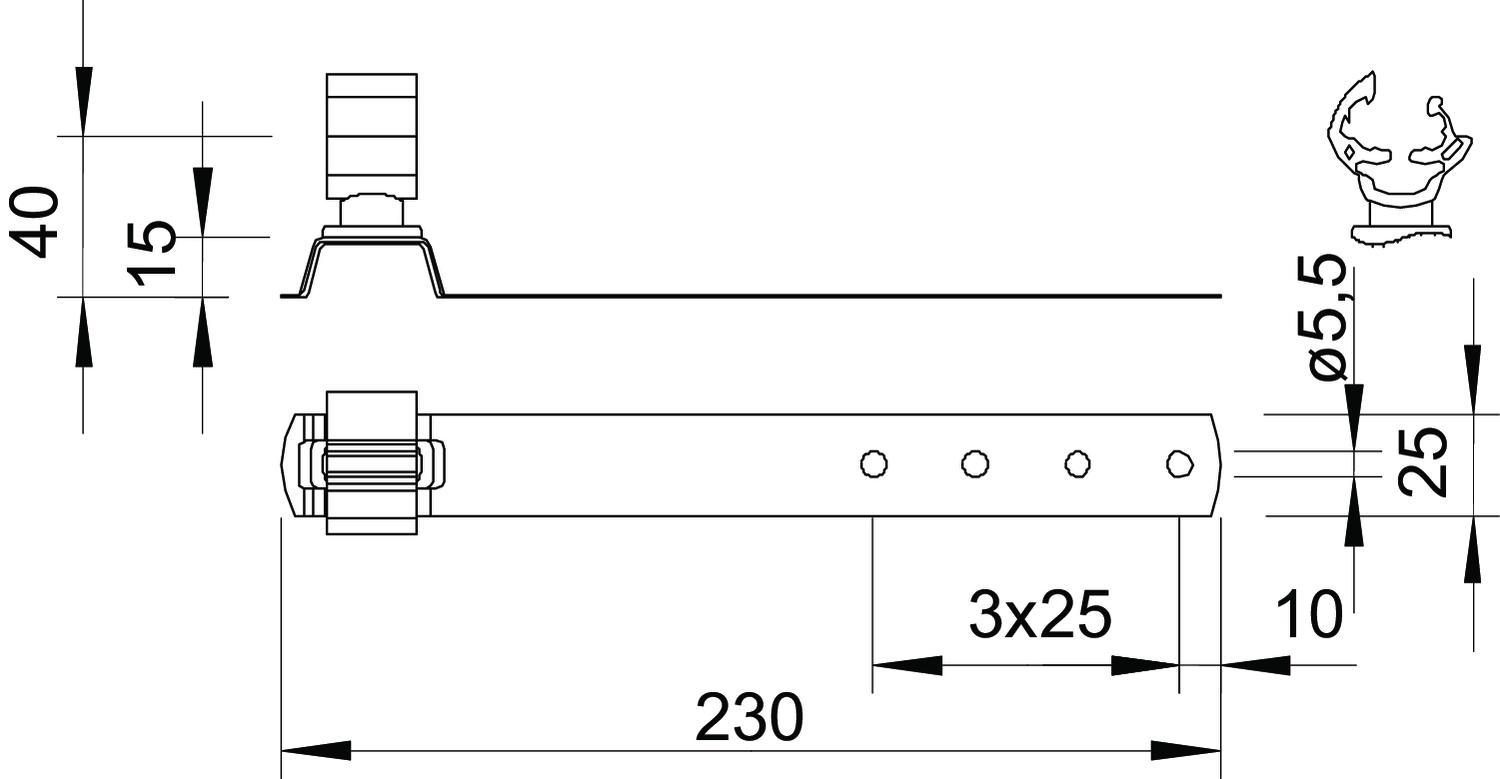

Dimension 8mm
Dimension L 230 mm
Fit Rd 8-10 mm
Length 230 mm
Material Copper
Mounting height 40 mm
Mounting type Screw-on
All types

All types

Types Length Fit Item no. Quantity SSU
157 FK-CU 230 230 mm Rd 8-10 mm 5216184
10 piece
157 FK-CU 280 280 mm Rd 8-10 mm 5216214
10 piece
