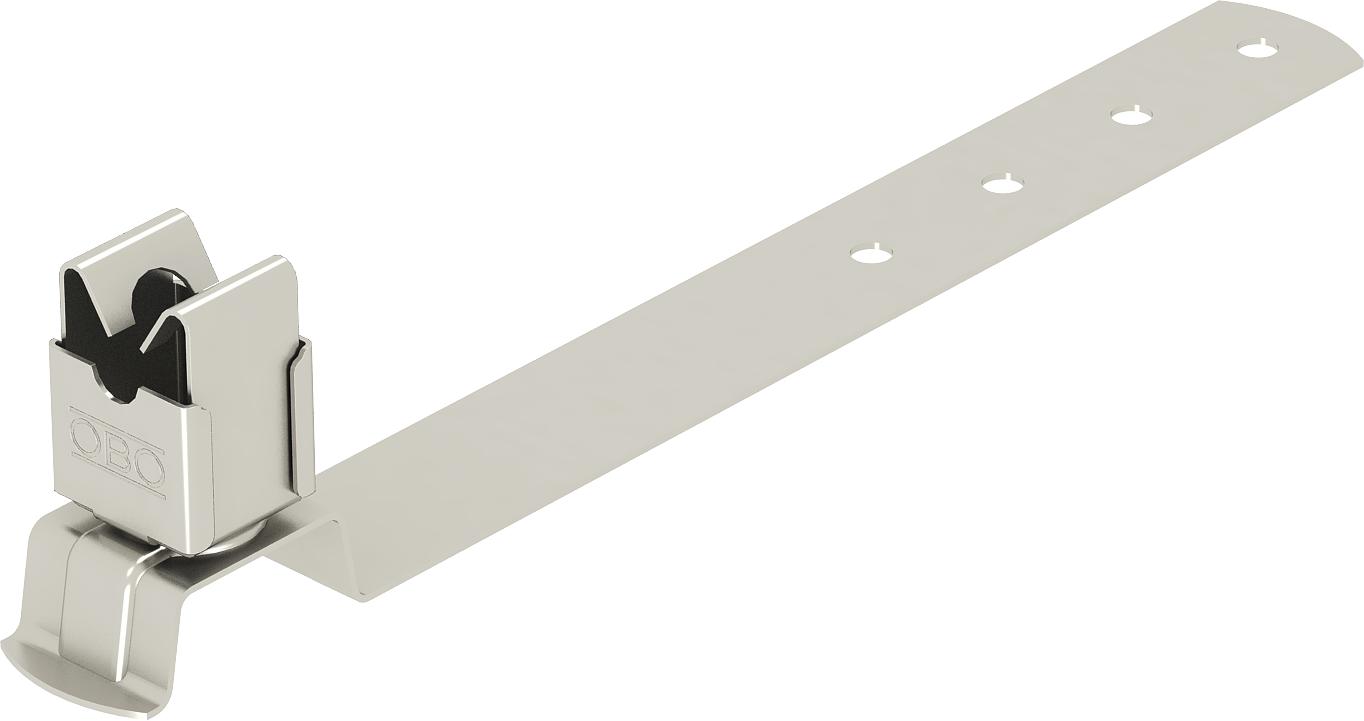

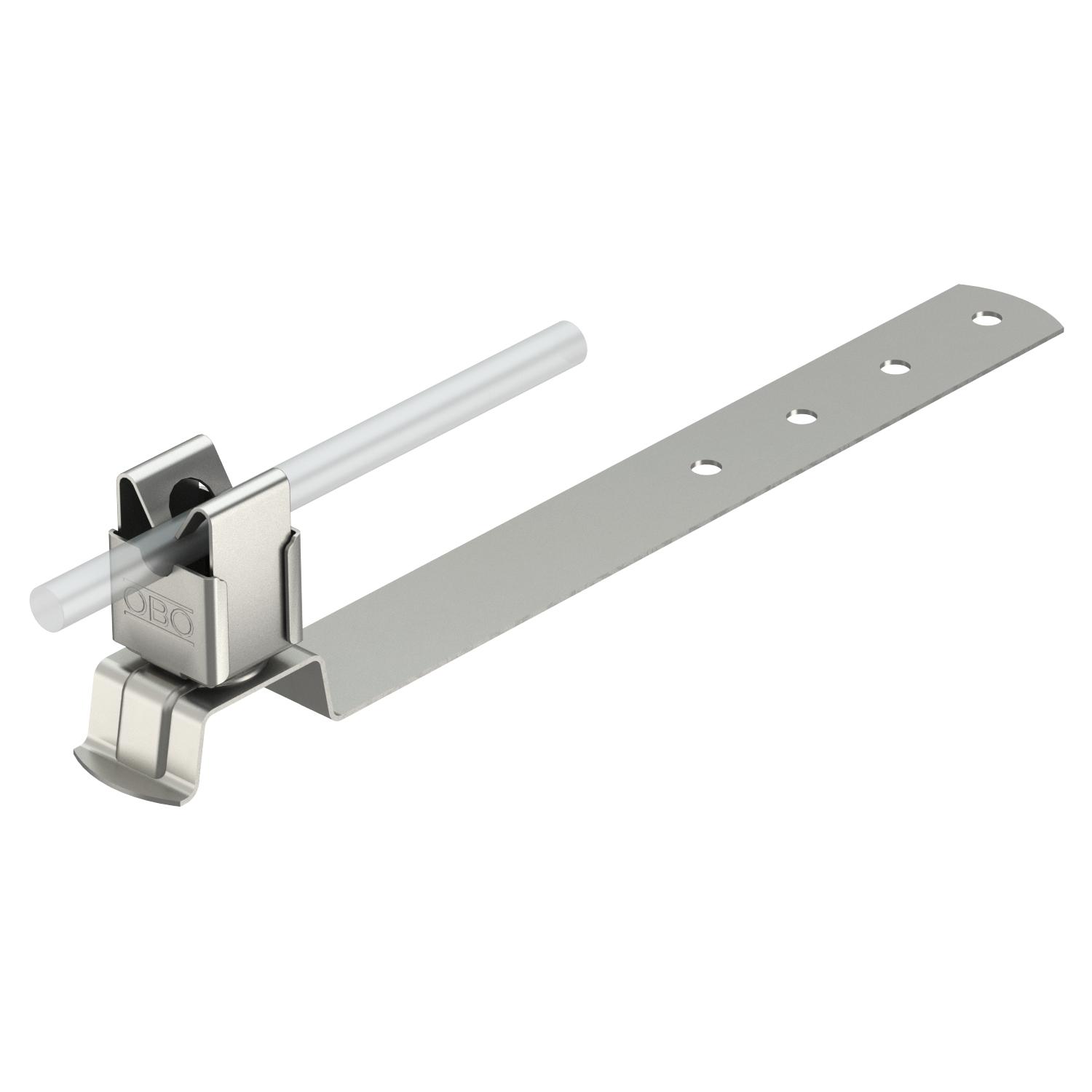

Roof conductor holder for tiled roofs, Rd 8

Item no. 5215552 | EAN 4012195407294

Rd 8 mm
Product description

Product description

• Conductor holder from stainless steel (V2A)

• Including drill hole in bottom section for quick installation
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 8
Conductor diameter, min. 8
Conductor fastening type With clip

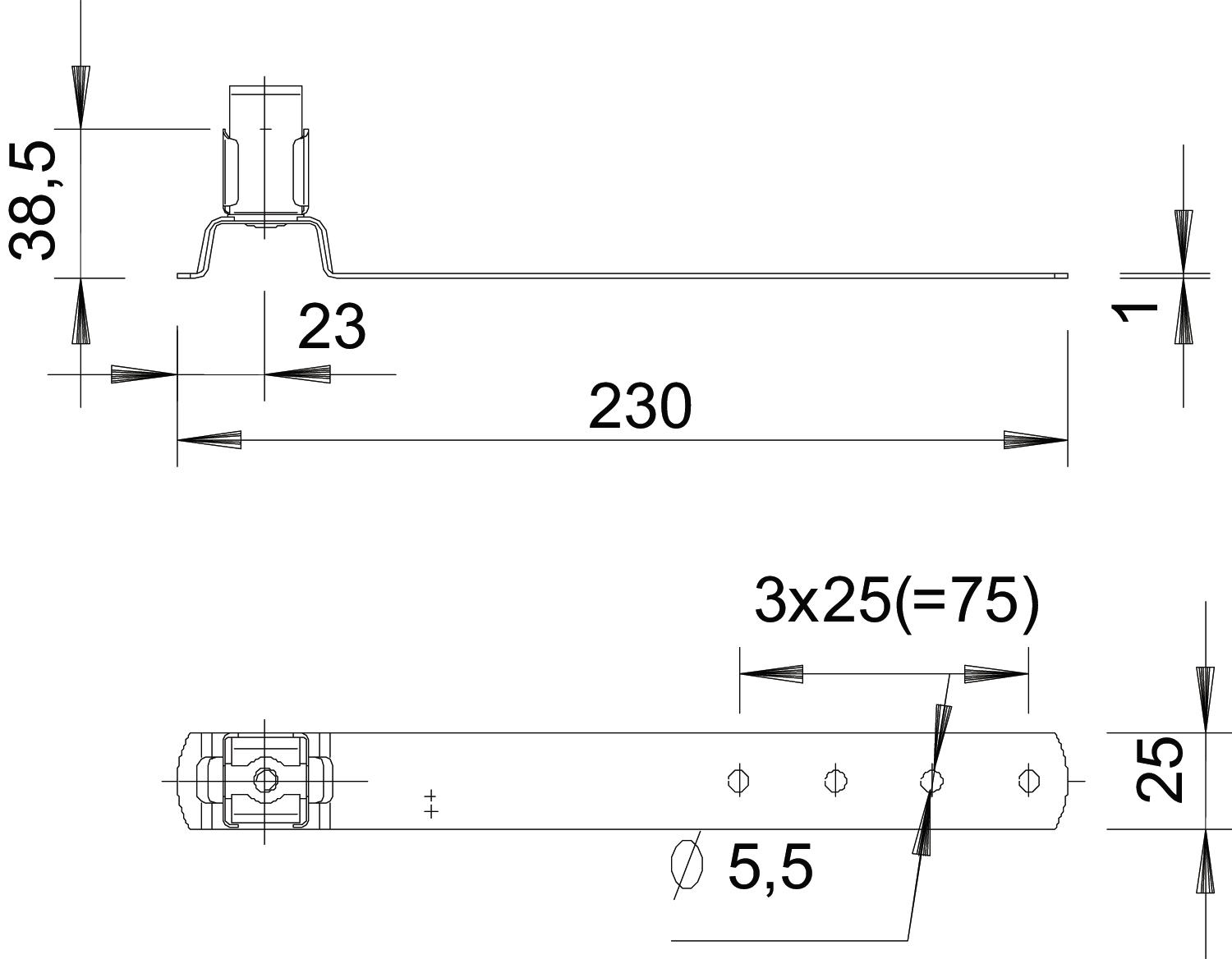

Dimension 8mm
Dimension L 230 mm
Fit Rd 8 mm
Length 230 mm
Material Stainless steel
Mounting height 38,5 mm
Mounting type Screw-on
All types

All types

Types Length Fit Item no. Quantity SSU
157 F-VA 230 230 mm Rd 8 mm 5215552
20 piece
157 F-VA 280 280 mm Rd 8 mm 5215579
20 piece
157 F-VA 410 410 mm Rd 8 mm 5215595
20 piece
