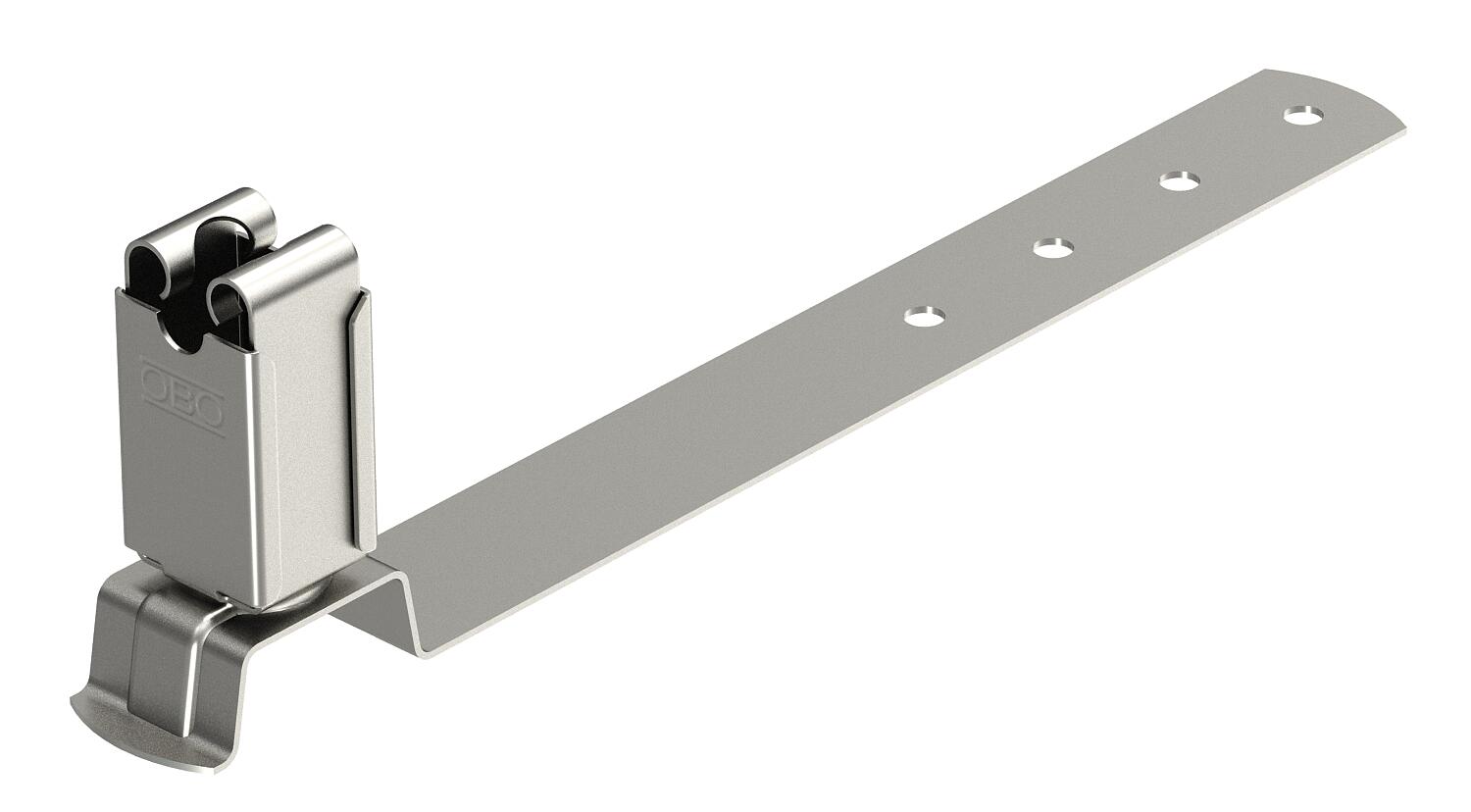

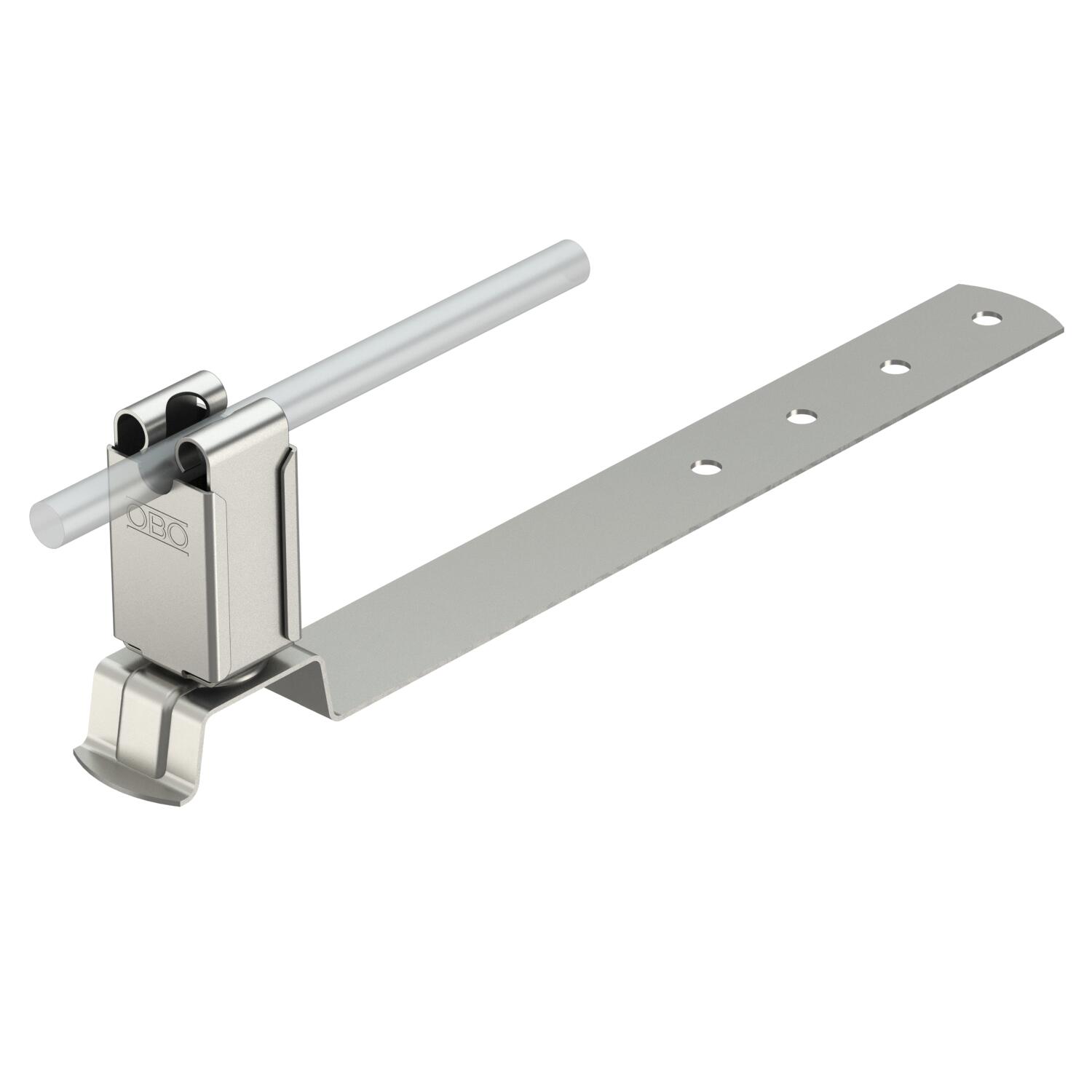

Roof conductor holder for tiled roofs, Rd 8

Item no. 5215555 | EAN 4012195784982

Rd 8 mm
Product description

Product description

• Conductor holder from stainless steel (V2A)

• Including drill hole in bottom section for quick installation

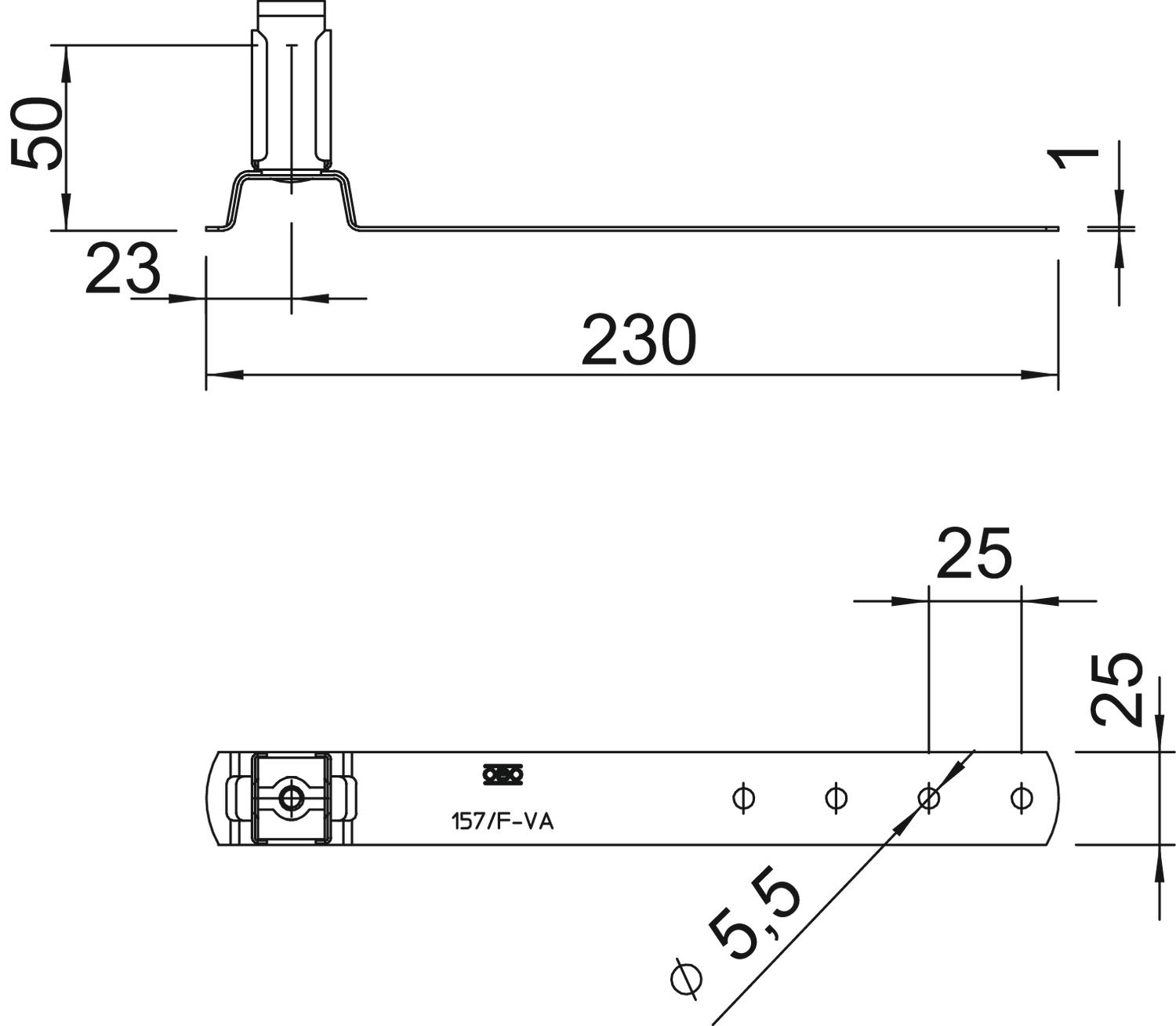

Technical data

Technical data

Conductor diameter, max. 8
Conductor diameter, min. 8
Dimension 35 mm
Dimension L 230 mm
Fit Rd 8 mm
Length 230 mm
Material Stainless steel
Mounting height 50 mm
All types

All types

Types Length Fit Item no. Quantity SSU
157 F-VA 230 35 230 mm Rd 8 mm 5215555
20 piece
157 F-VA 280 35 280 mm Rd 8 mm 5215582
20 piece
