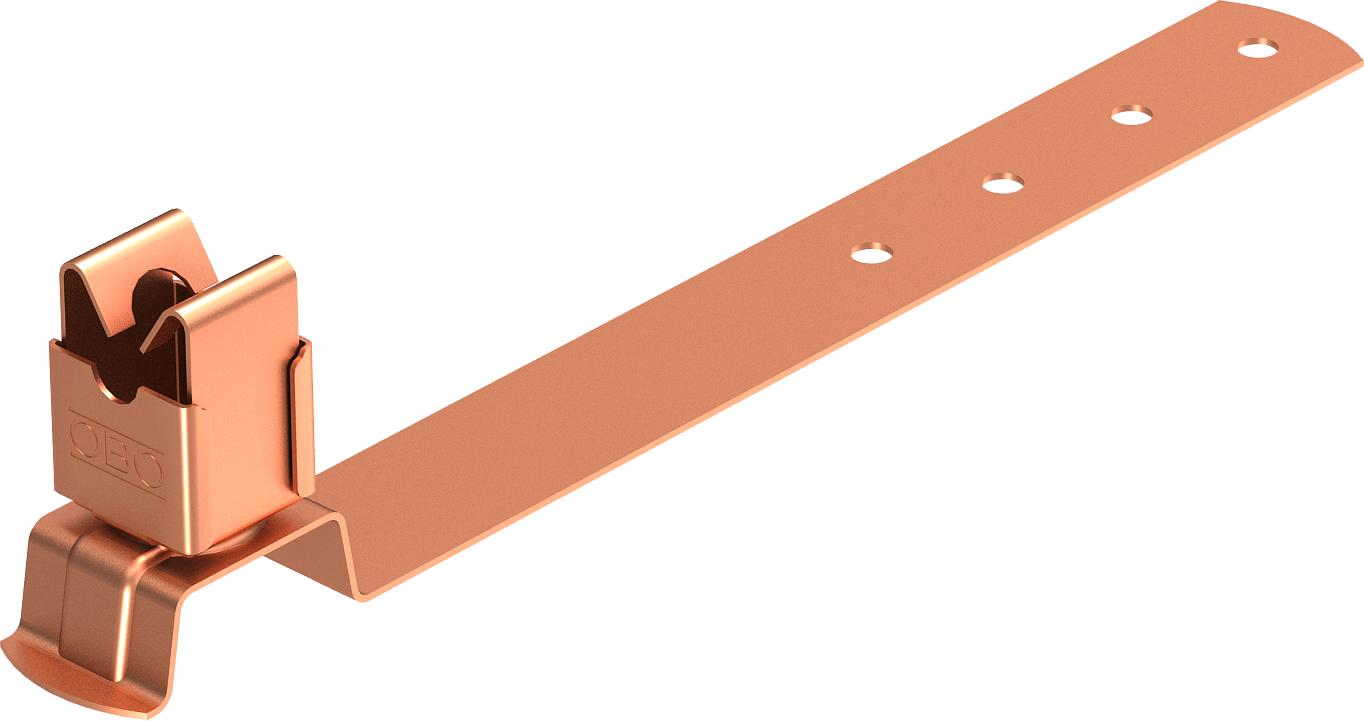

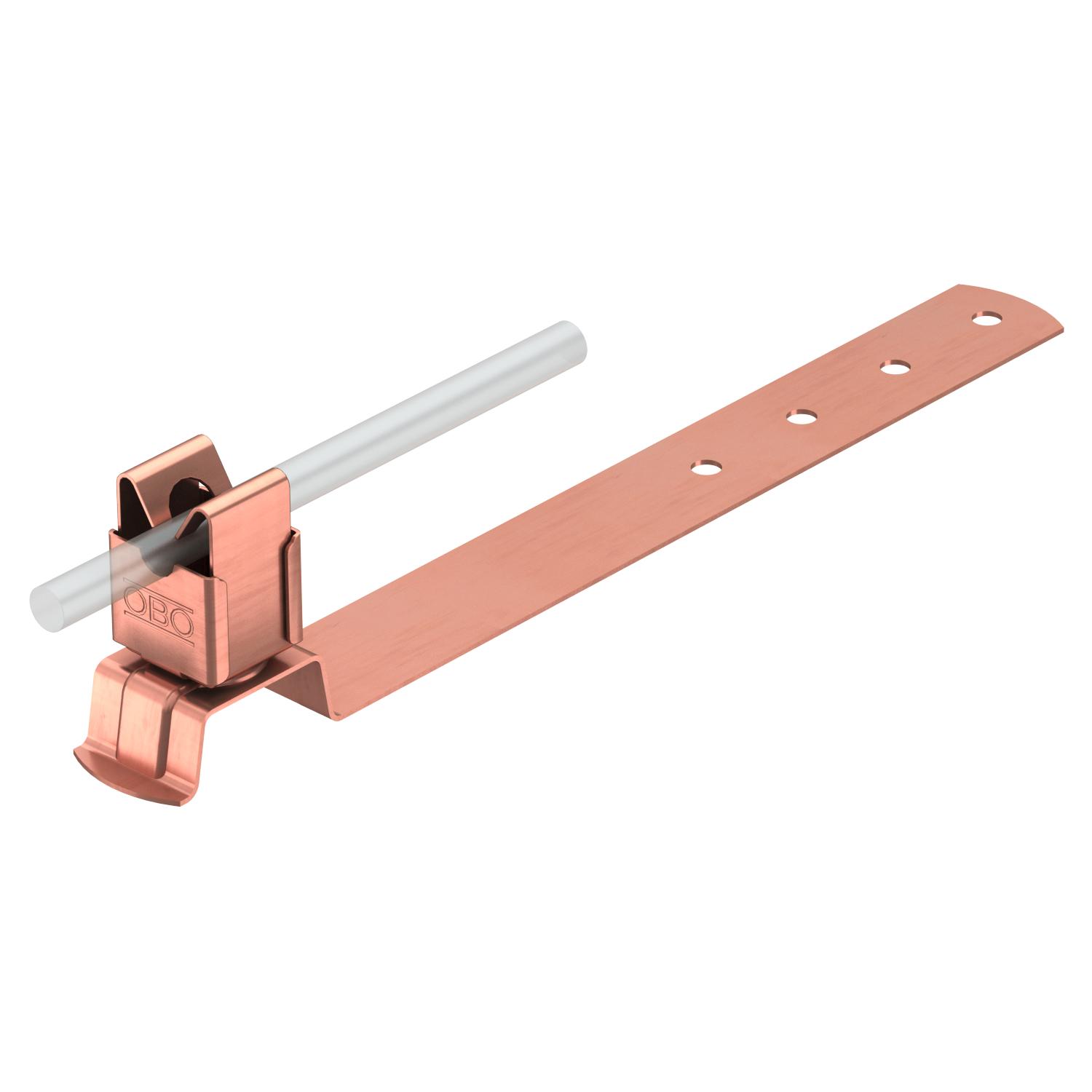

Roof conductor holder for tiled roofs, Rd 8
Item no. 5216192 | EAN 4012195902539
- Product description
-
Product description
• Conductor holder from copper plated stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

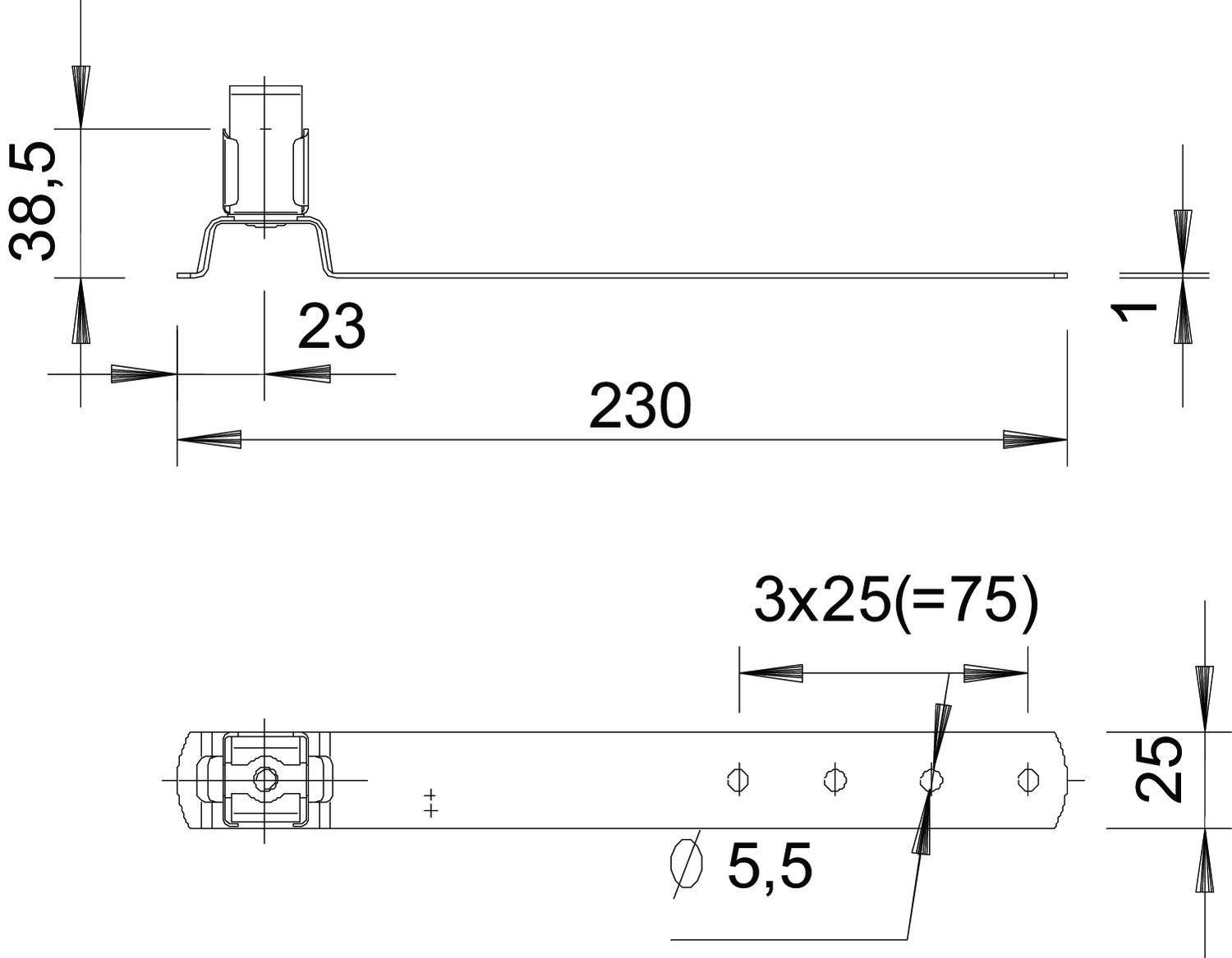

Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Dimension L 230 mm Fit Rd 8 mm Length 230 mm Material Copper Mounting height 38,5 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 F-CU 230 / 5216192 , 0.18MB , pdfDeclaration of conformity 157 F-CU 230 / 5216192 , 0.06MB , pdfREACH Declaration of conformity 157 F-CU 230 / 5216192 , 0.12MB , pdfRoHS Declaration of conformity 157 F-CU 230 / 5216192 , 0.12MB , pdf
