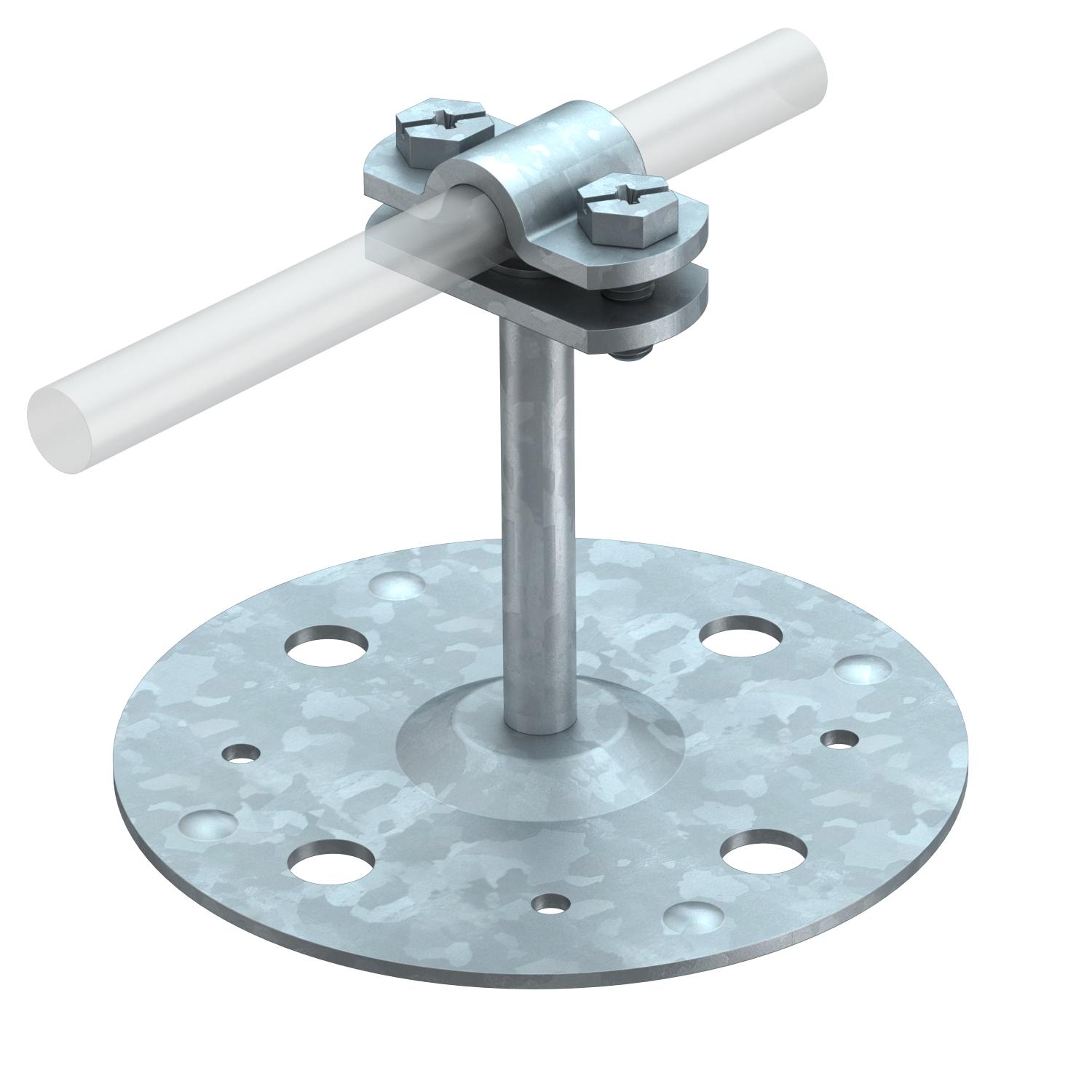

Roof conductor holder, suitable for direct bonding
Item no. 5218829 | EAN 4012195408970
- Product description
-
Product description
• With conductor holder and bottom section, hot-dip galvanised steel
• Bottom section Ø 100 mm
- Technical data
-
Technical data

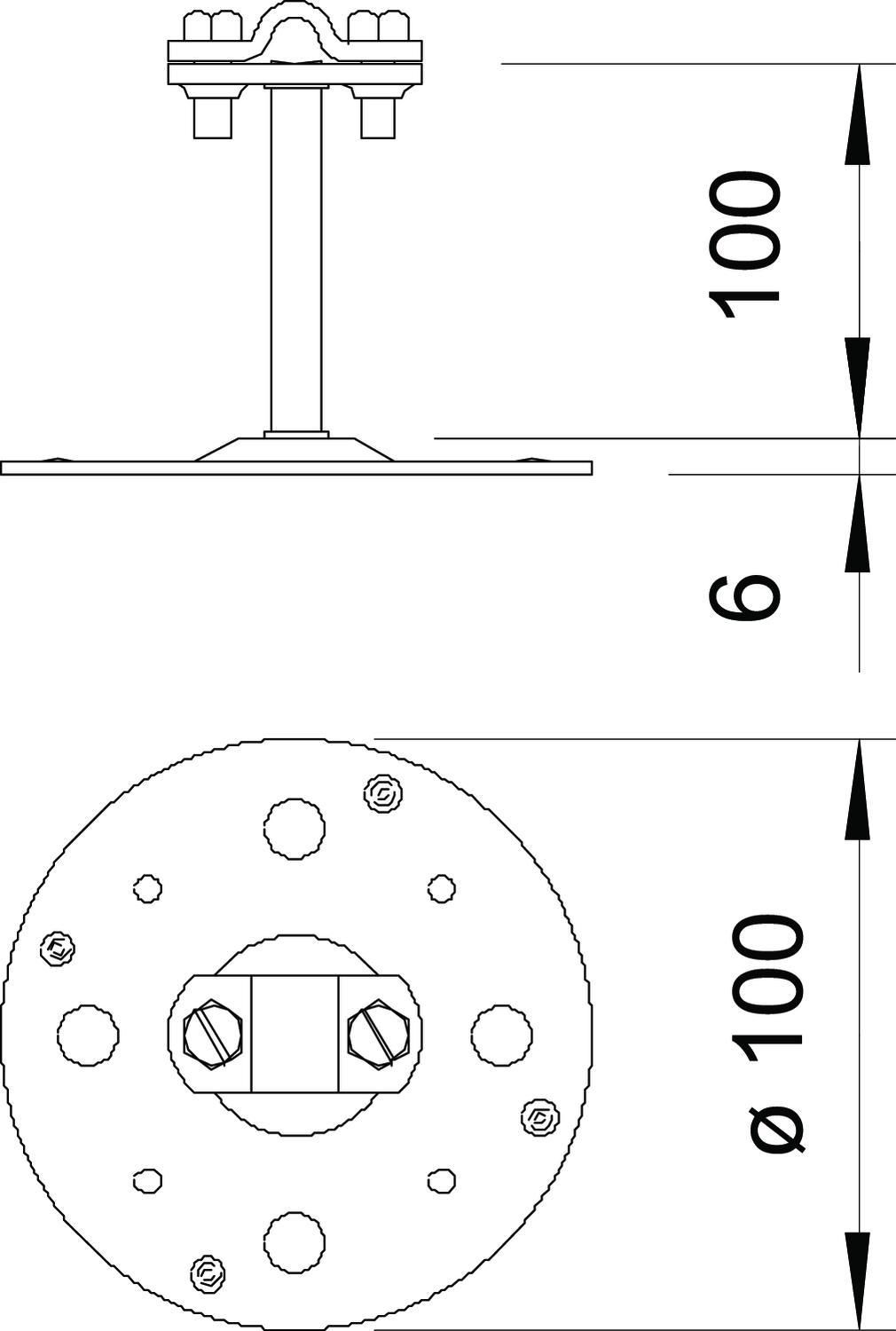

Application Flat roof Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With screw clip Dimension 100mm Fit Rd 8-10 mm Material Steel Mounting height 100 mm Mounting type Adhesive Surface Hot-dip galvanised Dimensions
Dimension H 100 mm Length 100 mm - All types
- Downloads
-
Data sheet 165 B 100 / 5218829 , 0.24MB , pdfREACH Declaration of conformity 165 B 100 / 5218829 , 0.27MB , pdfRoHS Declaration of conformity 165 B 100 / 5218829 , 0.12MB , pdf
