- Product description
-
Product description

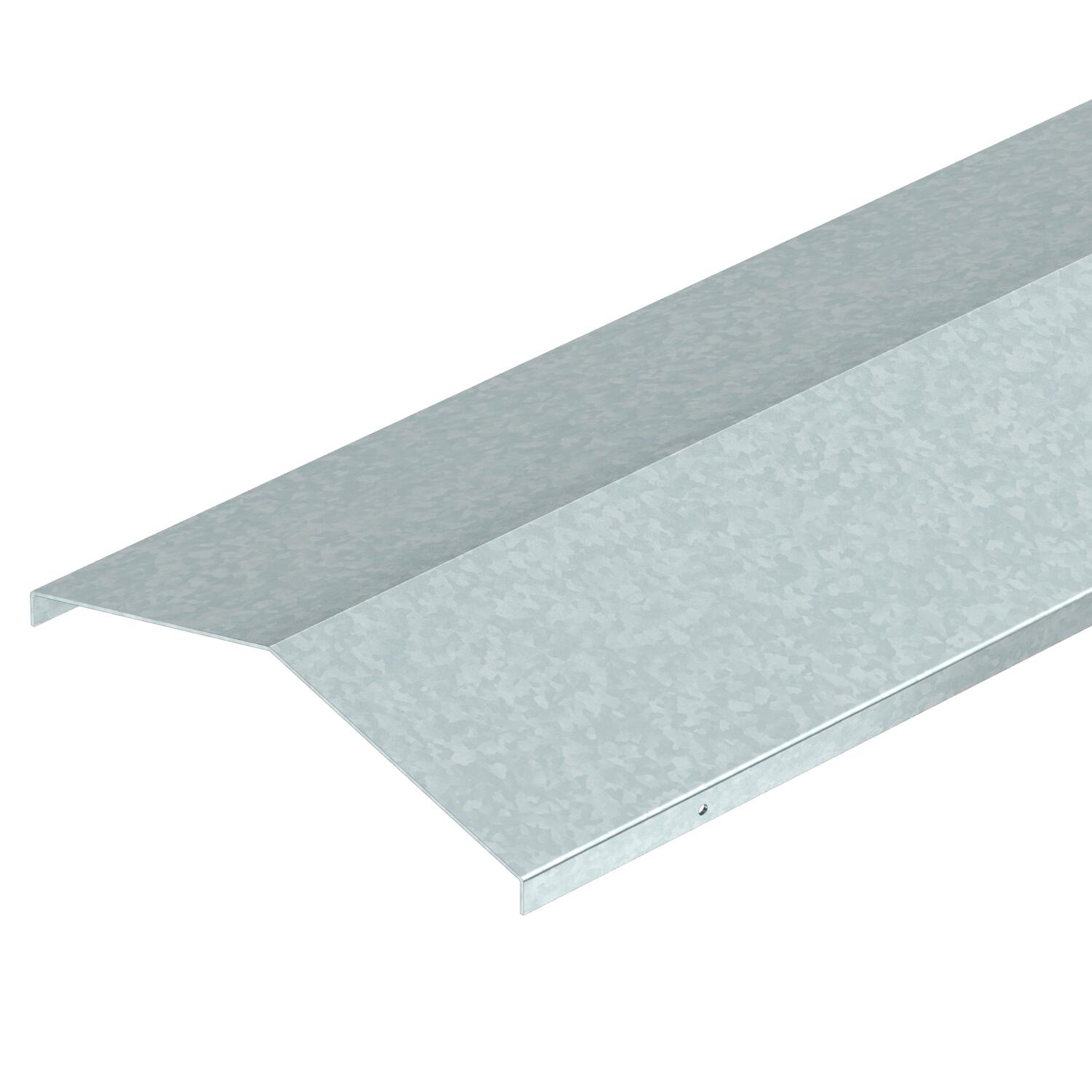

Roof-shaped cover for installing on cable trays, cable ladders and wide span systems. Self-tapping drilling screws are used for fastening.
- Technical data
-
Technical data
Dimension 200x3000x2mm Fastening type Screw-on Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Dimensions

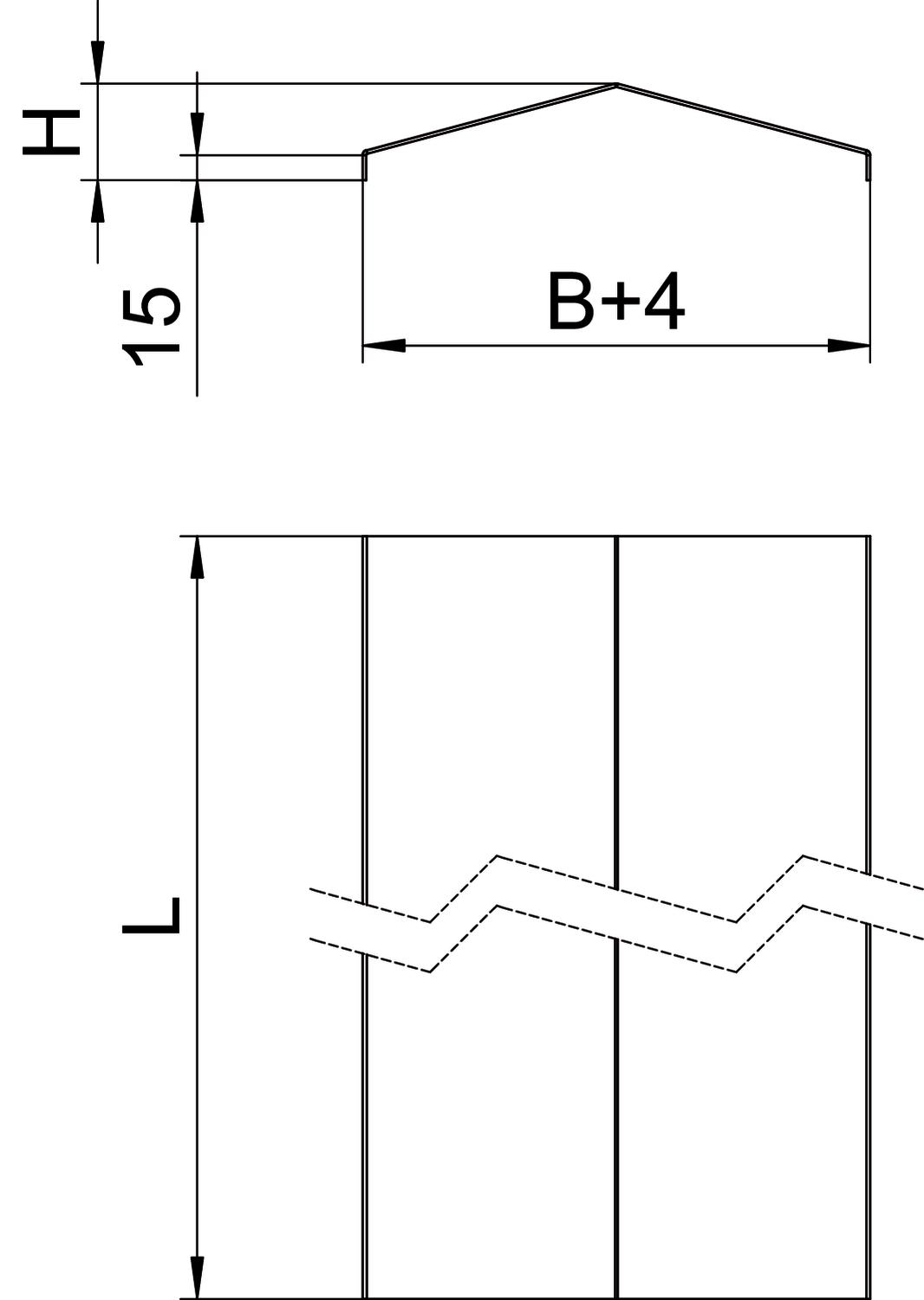

Dimension B 200 mm Dimension H 45 mm Dimension L 3000 mm Height 45 mm Length 3000 mm Width 200 mm - All types
- Downloads
-
Data sheet WDRLU DF1116 2FT / 6227261 , 0.19MB , pdfBrochure Wide span systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WDRLU DF1116 2FT / 6227261 , 0.15MB , pdfMounting instructions Weitspannkabelrinnen , 10.82MB , pdf
