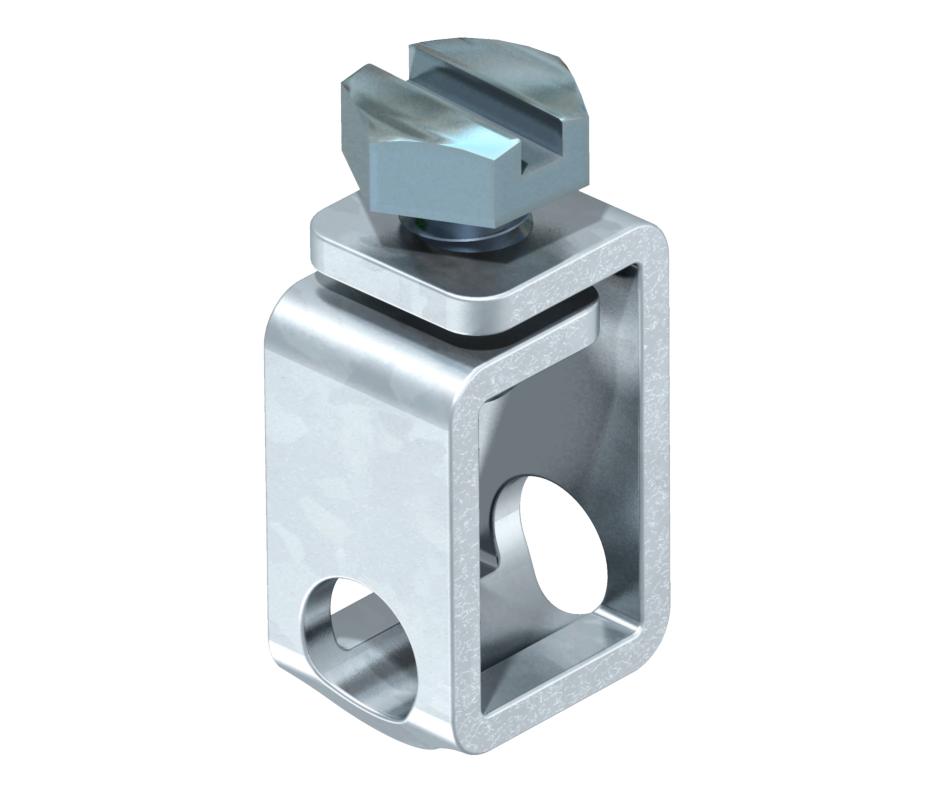

Round cable terminal to 25 mm² for 1801 VDE
Item no. 5015758 | EAN 4012195378853
- Product description
-
Product description• For single or multi-wire cables 2.5–25 mm²
• For fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 division unit
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
• Tension clamp with screw lock against self-loosening
(e.g. required in industry and in explosion-protected areas)
-
- Technical data
-
Technical data

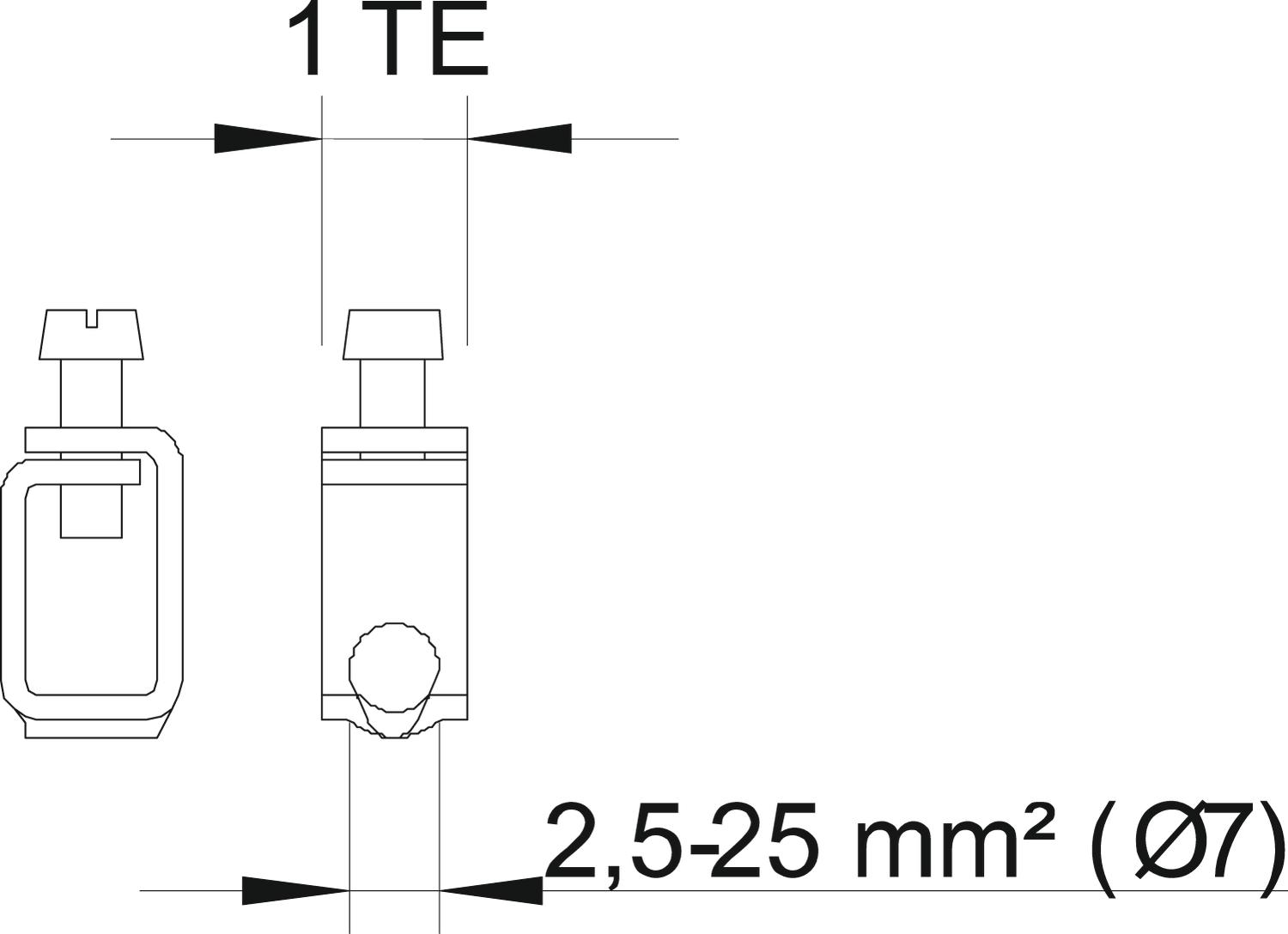

Connection options 2.5−25 mm² Dimension 25mm² Dividing unit TE (10 mm) 1 Material Steel Max. Conductor cross-section 25 mm² Suitable for busbar Other Suitable for ribbon conductor connection no Suitable for round cable connection yes Suitable for sector conductor connection no Surface Electrogalvanized Width 12 mm - All types
- Downloads
-
Data sheet 1801 RK25 / 5015758 , 0.19MB , pdfEU declaration of conformity 1801 RK25 / 5015758 , 0.10MB , pdfREACH Declaration of conformity 1801 RK25 / 5015758 , 0.12MB , pdfRoHS Declaration of conformity 1801 RK25 / 5015758 , 0.12MB , pdf
