Round conductor, aluminium, with halogen-free sheathing

Item no. 5021332 | EAN 4012195067474

5021332 / RD 8 TP HF
8 mm
20
100
50 mm²
Aluminium
Product description

Product description

• Can be used as a conductor

• Meets the requirements of VDE 0185-305 (IEC 62305)

• With halogen-free sheathing

• Suitable for routing on, in or under plasterwork, mortar or concrete
  • Halogen-free; without chlorine, fluorine and bromine
  • Lightning current-tested
Technical data

Technical data

Colour Cream; RAL 9001
Cross-section 50 mm²
Diameter 8 mm
Dimension 8mm

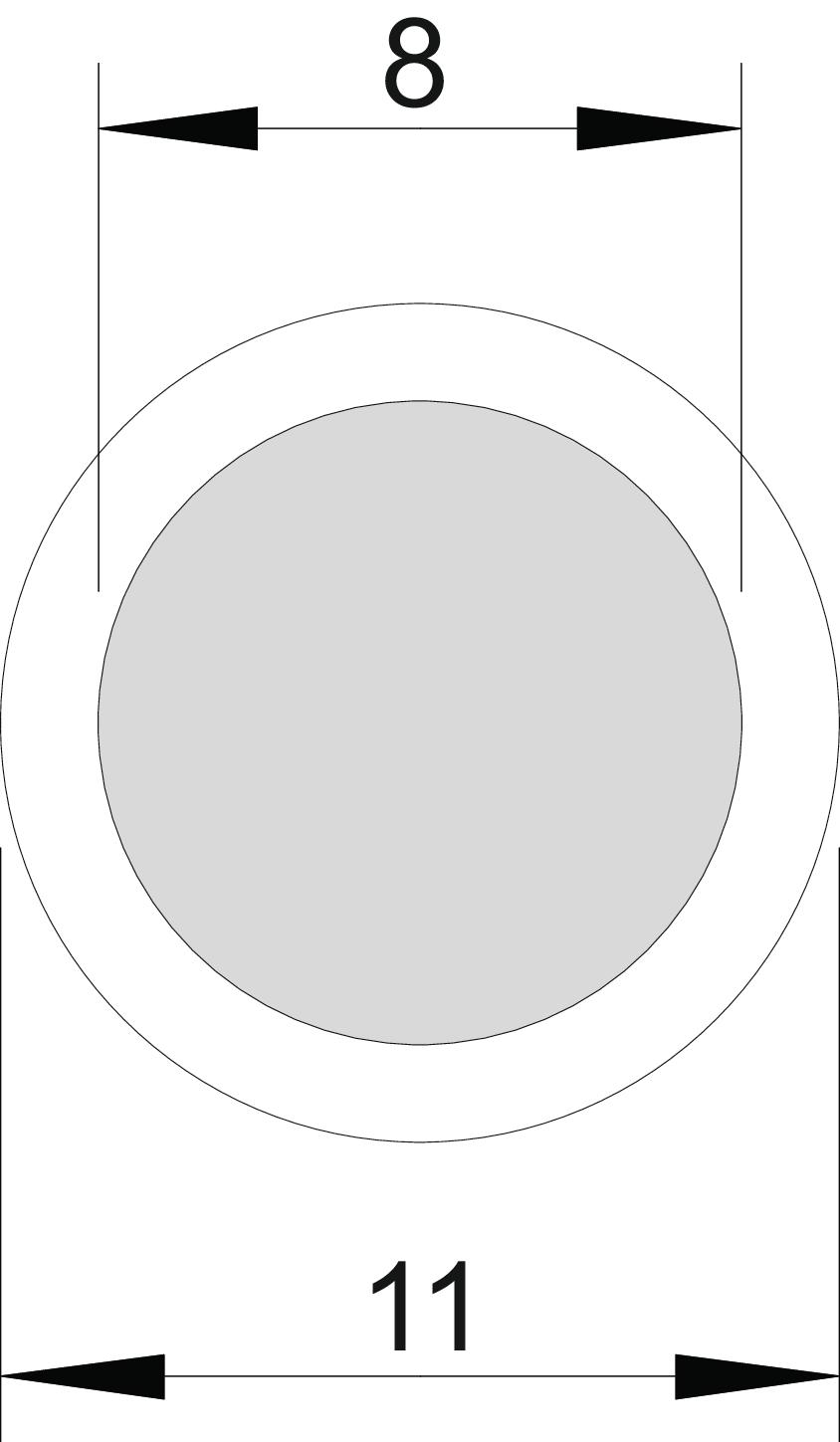

Dimension D 11 mm
Dimension d 8 mm
High voltage-resistant, insulated version no
Length tolerance ± 5 %
Material Aluminium
Material jacket Halogen-free plastic
Material property Soft
Nomal ring (approx. m) 100
Normal ring (ca. kg) 20
Number of individual wires 1
All types

All types

Types Diameter Normal ring (ca. kg) Nomal ring (approx. m) Cross-section Material Item no. Quantity SSU
RD 8 TP HF 8 mm 20 100 50 mm² Aluminium 5021332
100 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Number plates Alu Number plates Alu 311 N-ALU 16 3049345
5 piece
Cable bracket for Rd 8 mm, through-way Ø 5 mm Cable bracket for Rd 8 mm, through-way Ø 5 mm 177 20 VA M6 5207339
20 piece
Cable bracket Rd 8–10 mm Cable bracket Rd 8–10 mm 177 30 M8 5207460
20 piece
165 MBG... roof cable holder for flat roofs, black, with concrete 165 MBG... roof cable holder for flat roofs, black, with concrete 165 MBG-8-10 5218700
12 piece
Connector, Rd 8−10 mm with pressure trough Connector, Rd 8−10 mm with pressure trough 5001 N-VA 5304176
10 piece
Connector, Rd 8−10 mm, double, with pressure trough Connector, Rd 8−10 mm, double, with pressure trough 5002 N-VA 5304270
10 piece
Vario quick connector ALU Vario quick connector ALU 249 8-10 ALU 5311519
30 piece
Gutter clamp RK-FIX A2 Gutter clamp RK-FIX A2 RK-FIX VA 5316459
10 piece
Folding and construction clamp Folding and construction clamp RSF 177 20 VA M8 5317512
50 piece
Connection component with double crossbar Connection component with double crossbar 287 DCT 5320707
10 piece
