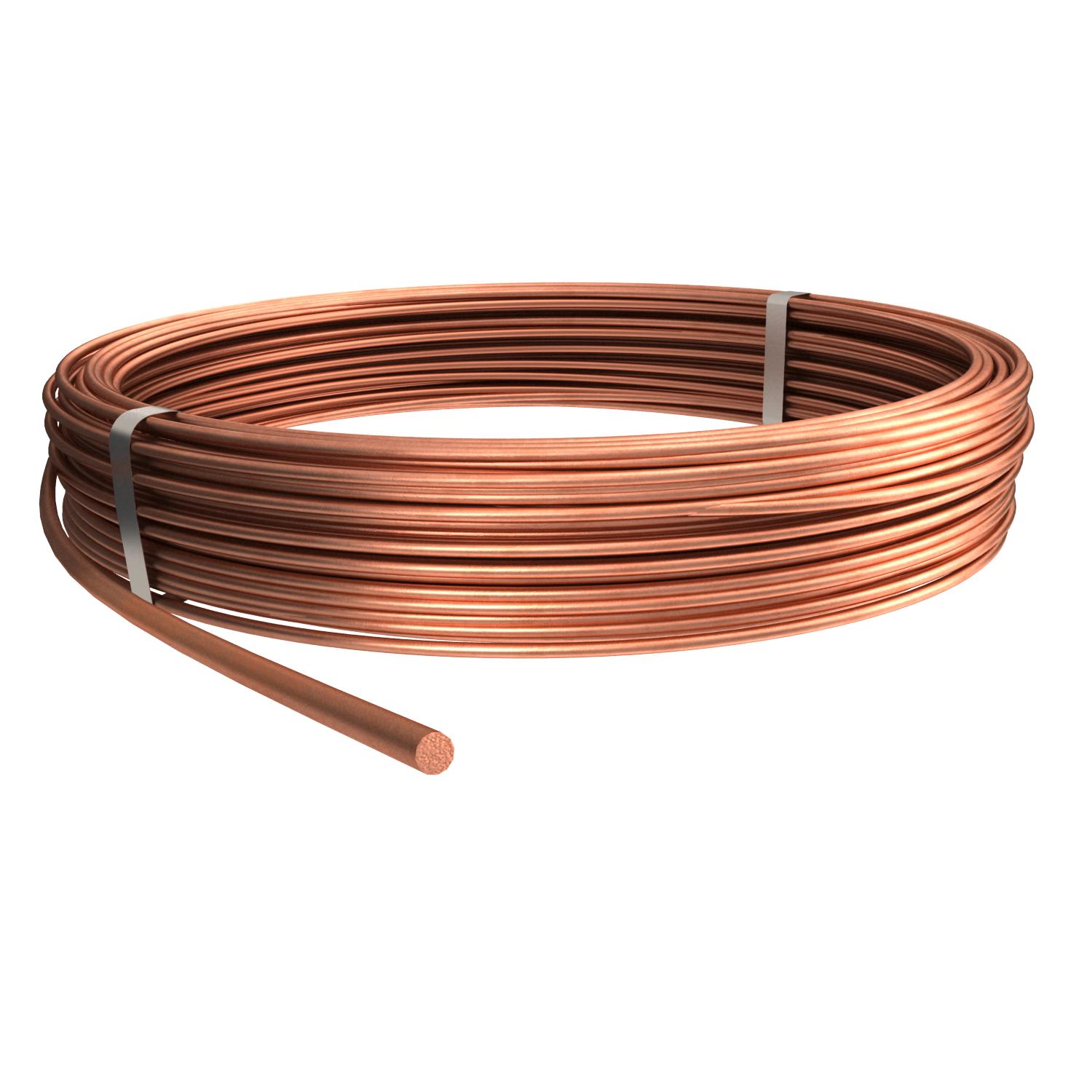

Round conductor, copper

Item no. 5021502 | EAN 4012195382096

Copper
Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

Cross-section 78 mm²

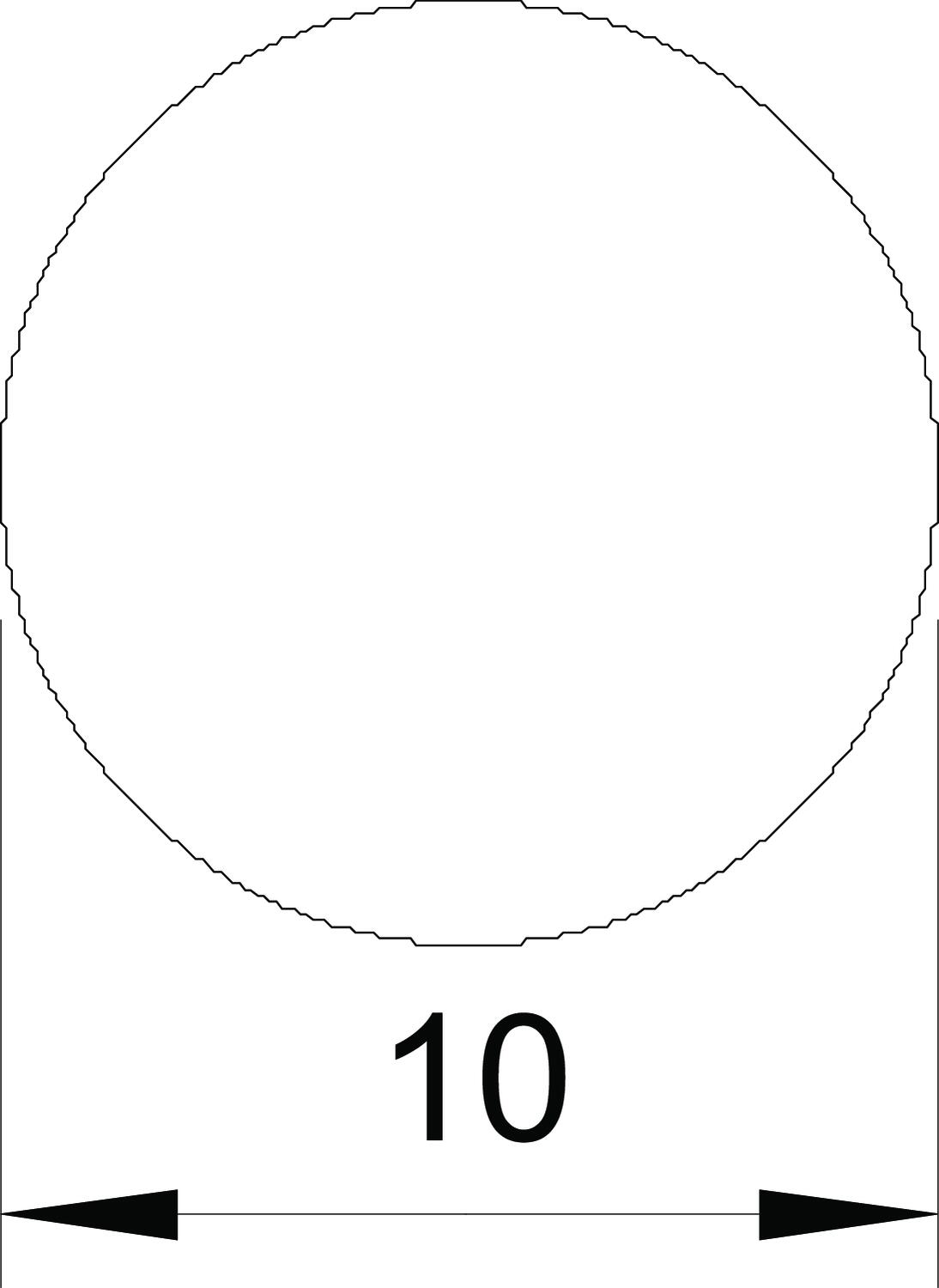

Diameter 10 mm
Dimension 10mm
Dimension D 10 mm
High voltage-resistant, insulated version no
Length tolerance ± 5 %
Material Copper
Material jacket Without
Material property Soft
Nomal ring (approx. m) 50
Normal ring (ca. kg) 35
Number of individual wires 1
All types

All types

Types Diameter Normal ring (ca. kg) Nomal ring (approx. m) Cross-section Material Item no. Quantity SSU
RD 8-CU 8 mm 45 100 50 mm² Copper 5021480
100 m
RD 8-CU 25 8 mm 25 55 50 mm² Copper 5021484
55 m
RD 10-CU 10 mm 35 50 78 mm² Copper 5021502
50 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cross-connector with intermediate plate for Rd 8−10 mm Cu Cross-connector with intermediate plate for Rd 8−10 mm Cu 252 8-10 CU 5312418
10 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 Cu Cross-connector with intermediate plate for Rd 8−10 x Rd 16 Cu 252 8-10X16 CU 5312442
10 piece
