Round conductor, copper 8 | 45 | 100 | 50 | Copper

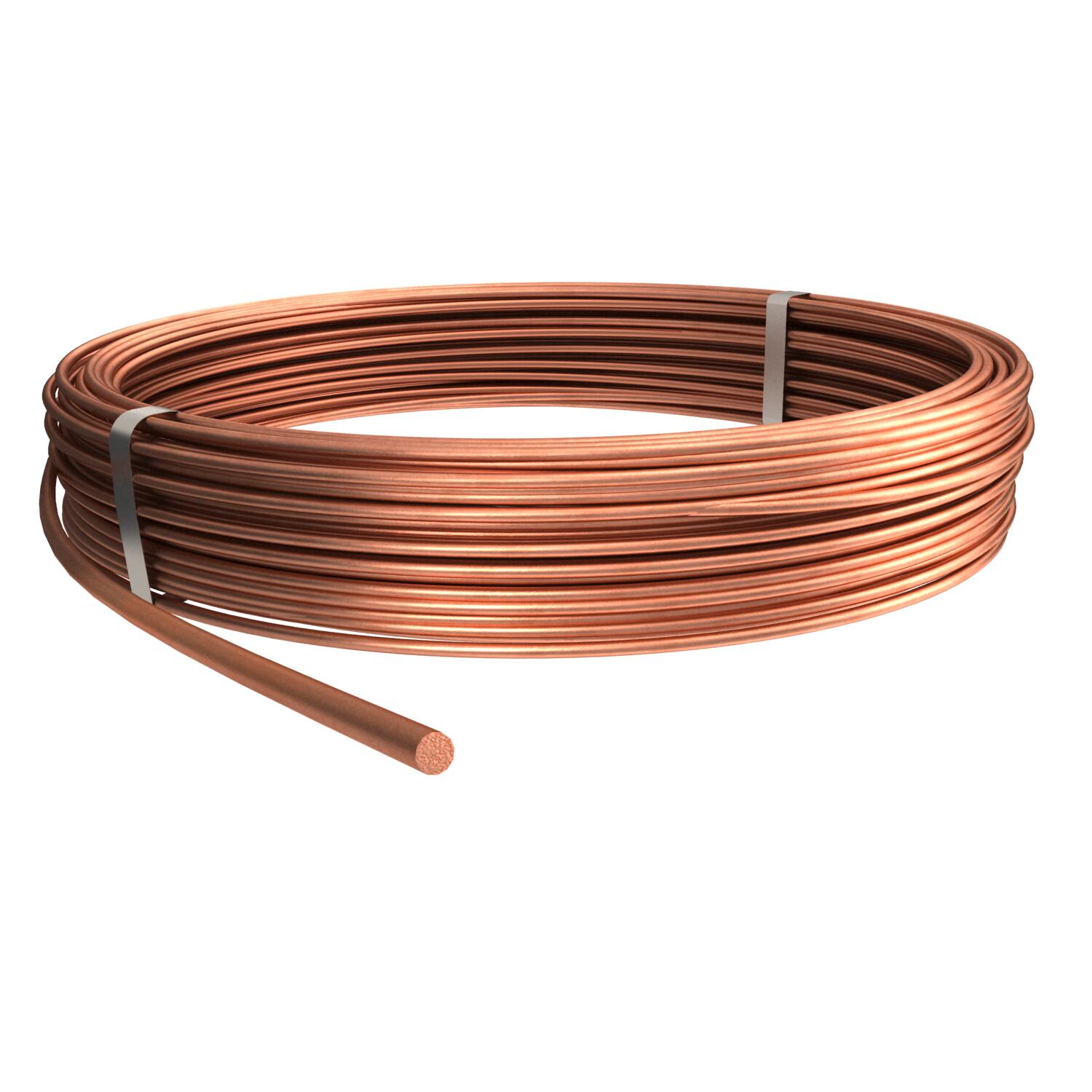

Round conductor, copper

Item no. 5021480 | EAN 4012195382034

Item no. / Types

Diameter

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section

Material	Copper

Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Technical data

Technical data

Cross-section	50 mm²
Diameter	8 mm
Dimension	8mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %
Material	Copper

Material jacket	Without
Material property	Soft
Nomal ring (approx. m)	100
Normal ring (ca. kg)	45
Number of individual wires	1

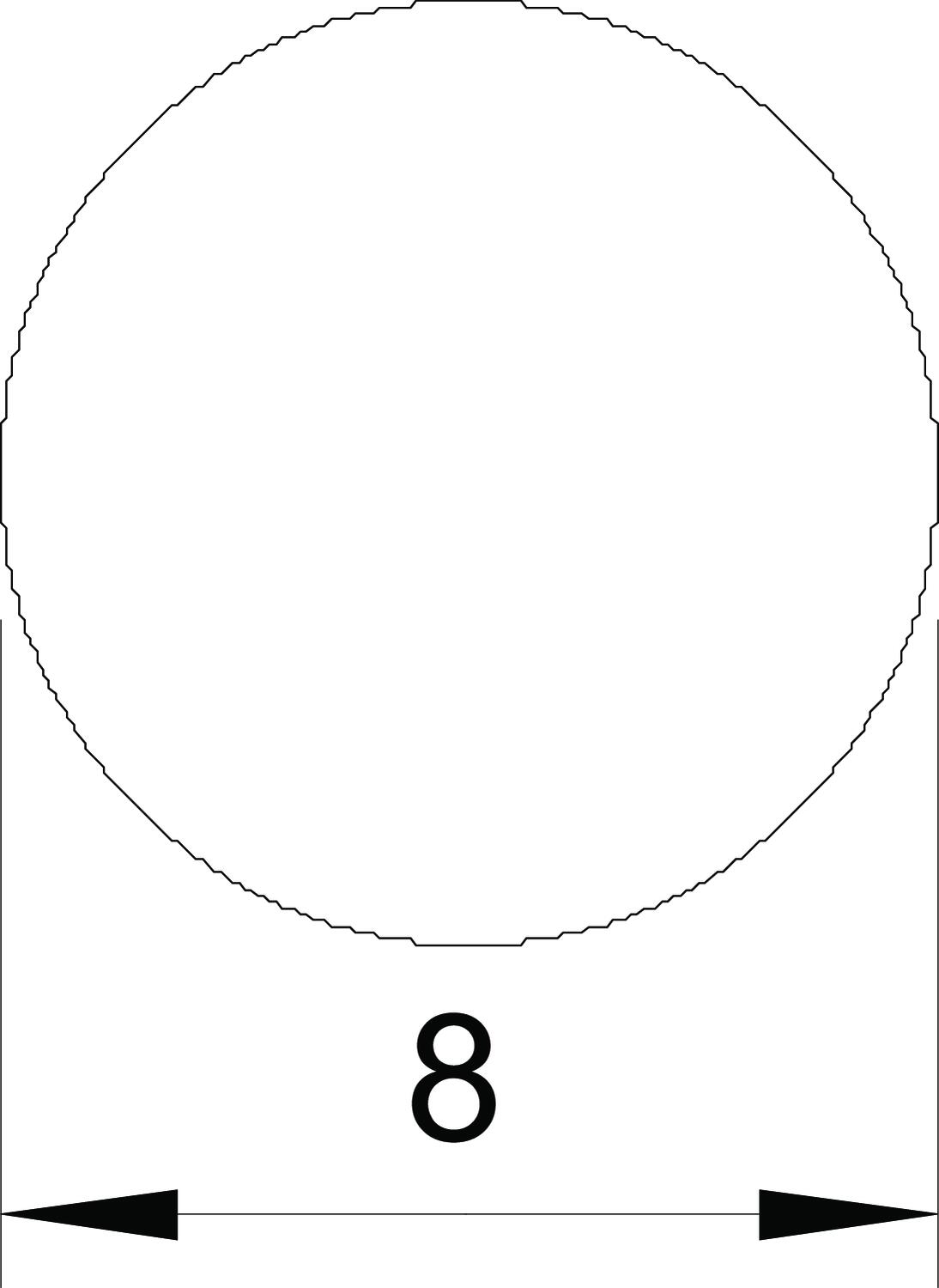

Dimensions

Dimension D	8 mm

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-CU	8 mm	45	100	50 mm²	Copper	5021480	m	100 m
RD 8-CU 25	8 mm	25	55	50 mm²	Copper	5021484	m	55 m
RD 10-CU	10 mm	35	50	78 mm²	Copper	5021502	m	50 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

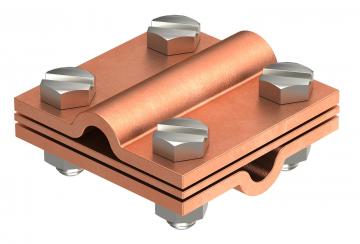

Cross-connector with intermediate plate for Rd 8−10 mm Cu	252 8-10 CU	5312418	piece	10 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 Cu	252 8-10X16 CU	5312442	piece	10 piece
