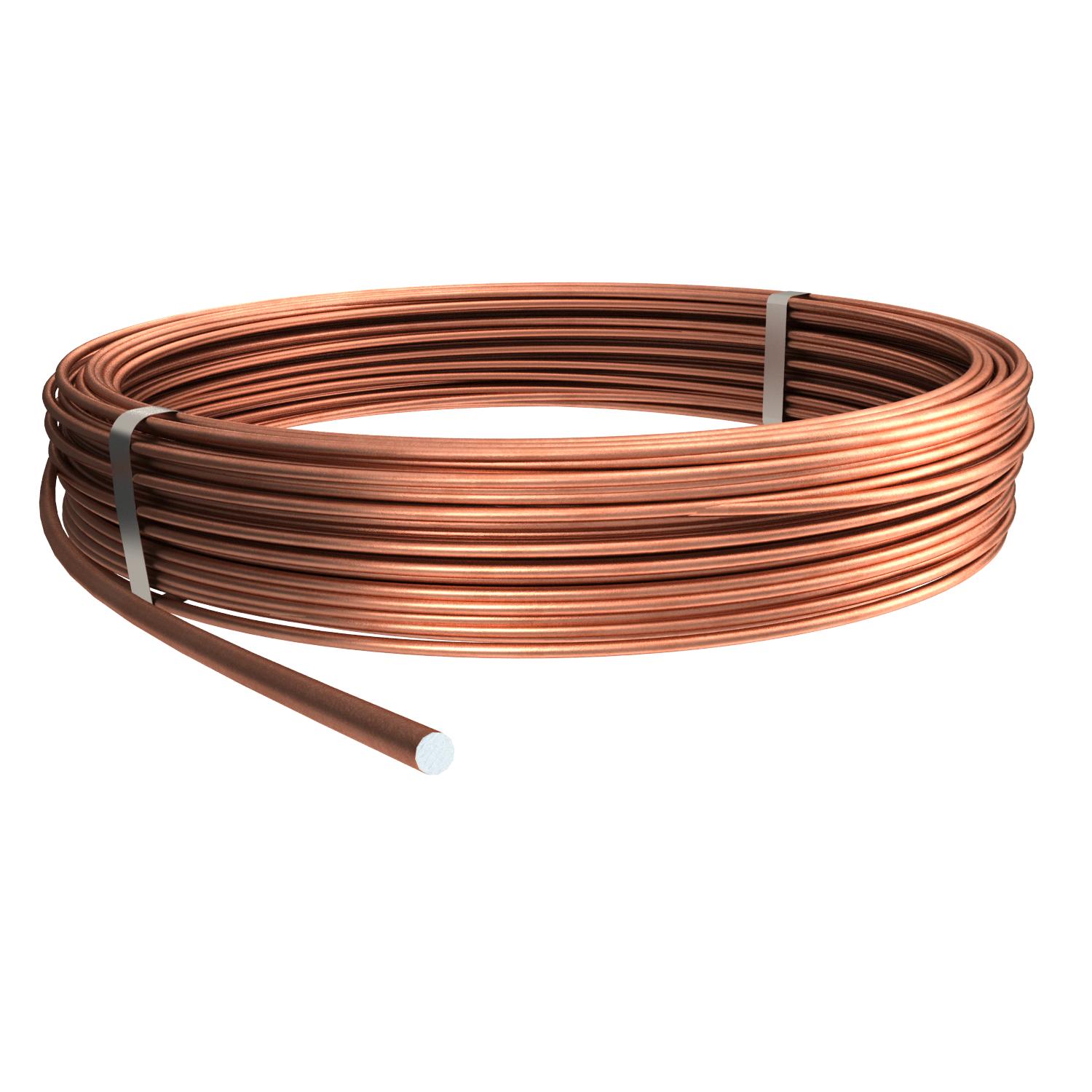

Round conductor, copper sheathed

Item no. 5021380 | EAN 4012196564804

5021380 / RD 8-ST CU
8 mm
50 mm²
Steel
Product description

Product description

• Can be used as a conductor according to IEC/ EN 62561-2 (VDE 0185-561-2)
• Complies with the requirements of VDE 0185-305 (IEC 62305)
• Copper layer thickness: Min. 70 µm


  • Lightning current-tested
Technical data

Technical data

Cross-section 50 mm²

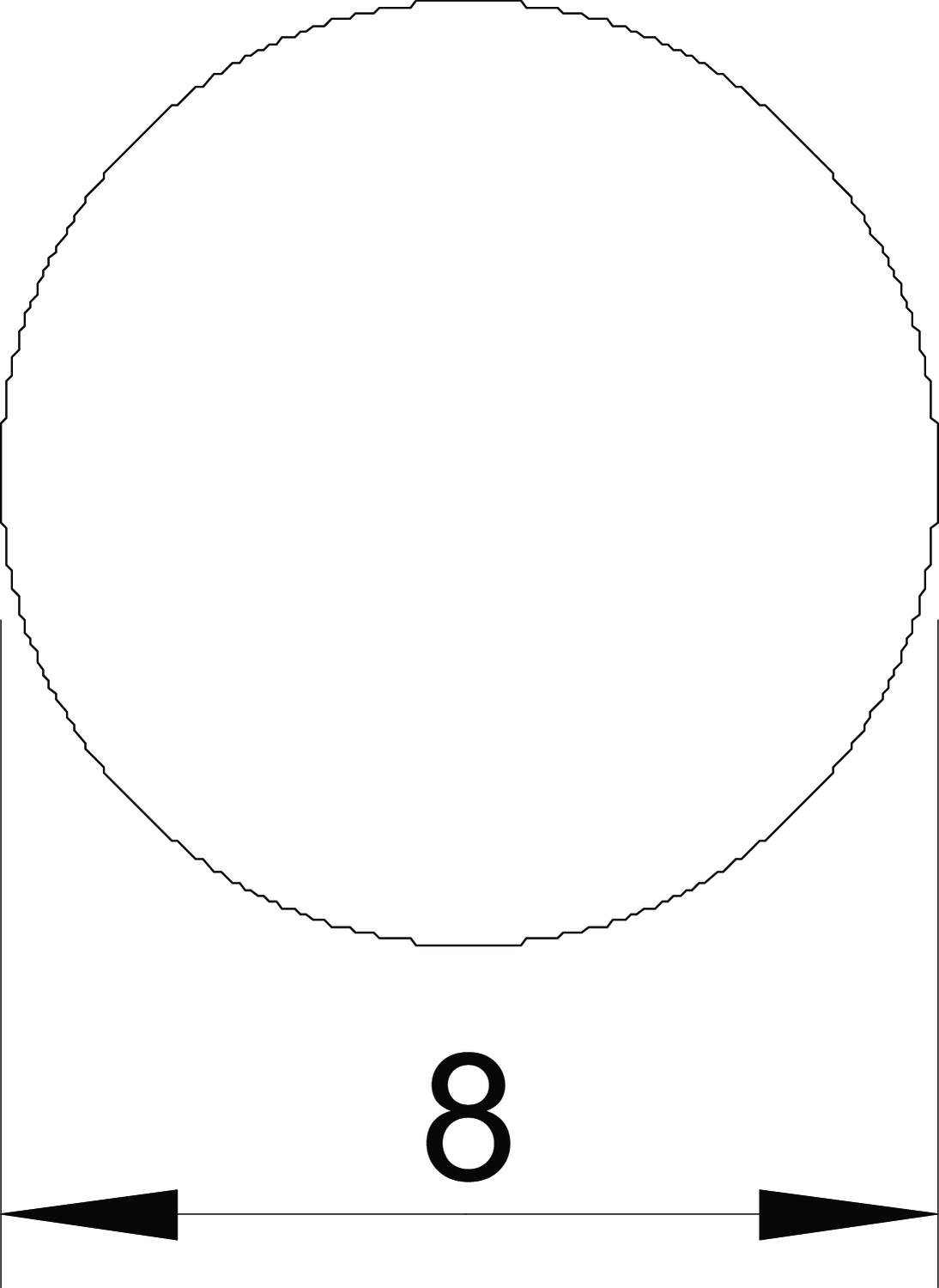

Diameter 8 mm
Dimension 8mm
High voltage-resistant, insulated version no
Length 100000 mm
Length tolerance ± 5 %
Material Steel
Number of individual wires 1
Surface Copper-plated
All types

All types

Types Diameter Cross-section Material Item no. Quantity SSU
RD 8-ST CU 8 mm 50 mm² Steel 5021380
100 m
