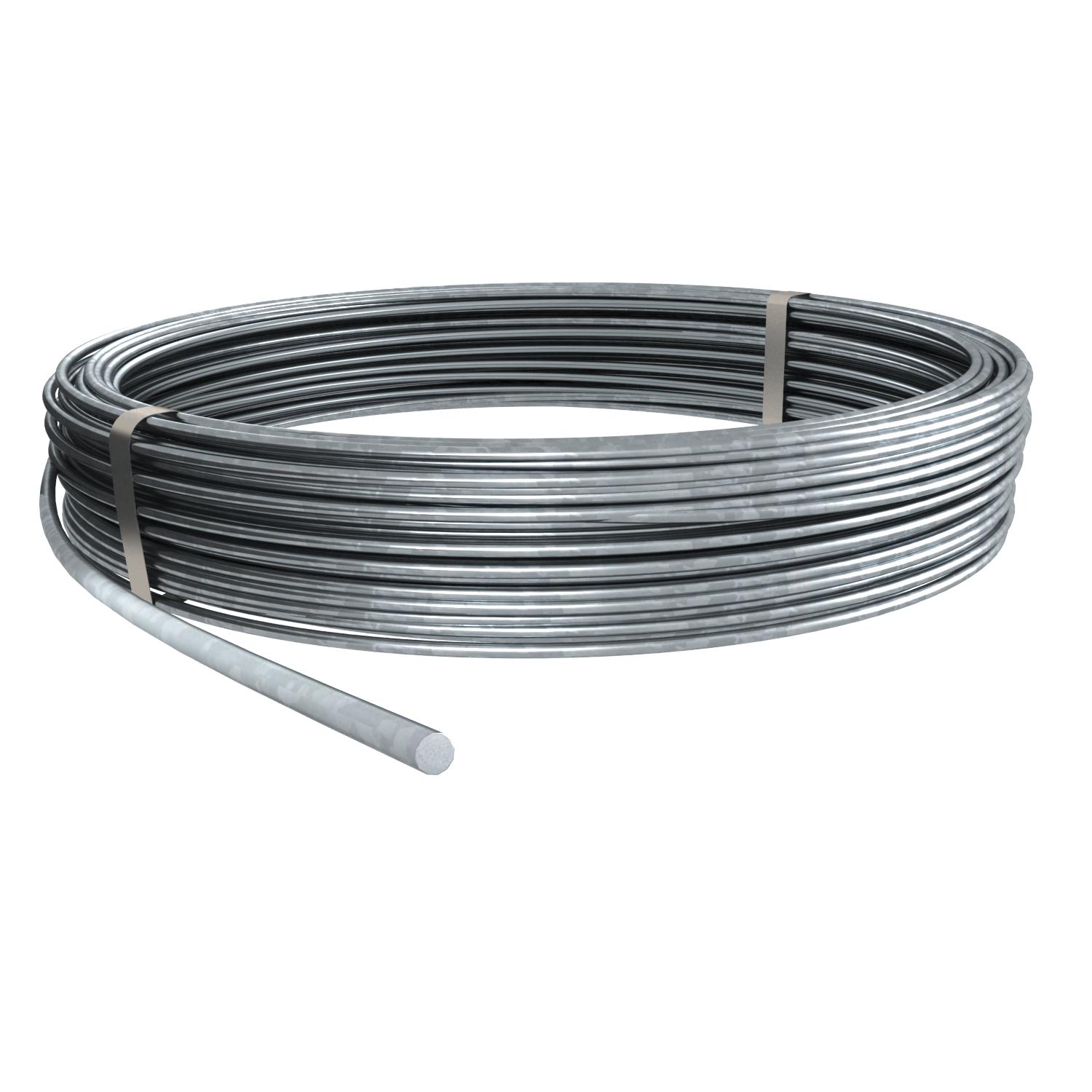

Round conductor, galvanised steel

Item no. 5021103 | EAN 4012195381617

Steel
Product description
Product description
• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10 can also be used in the earth
• Zinc coating: ≥ 350 g/m² (approx. 50 µm in mean value)
  • Lightning current-tested
Technical data

Technical data

Cross-section 78 mm²

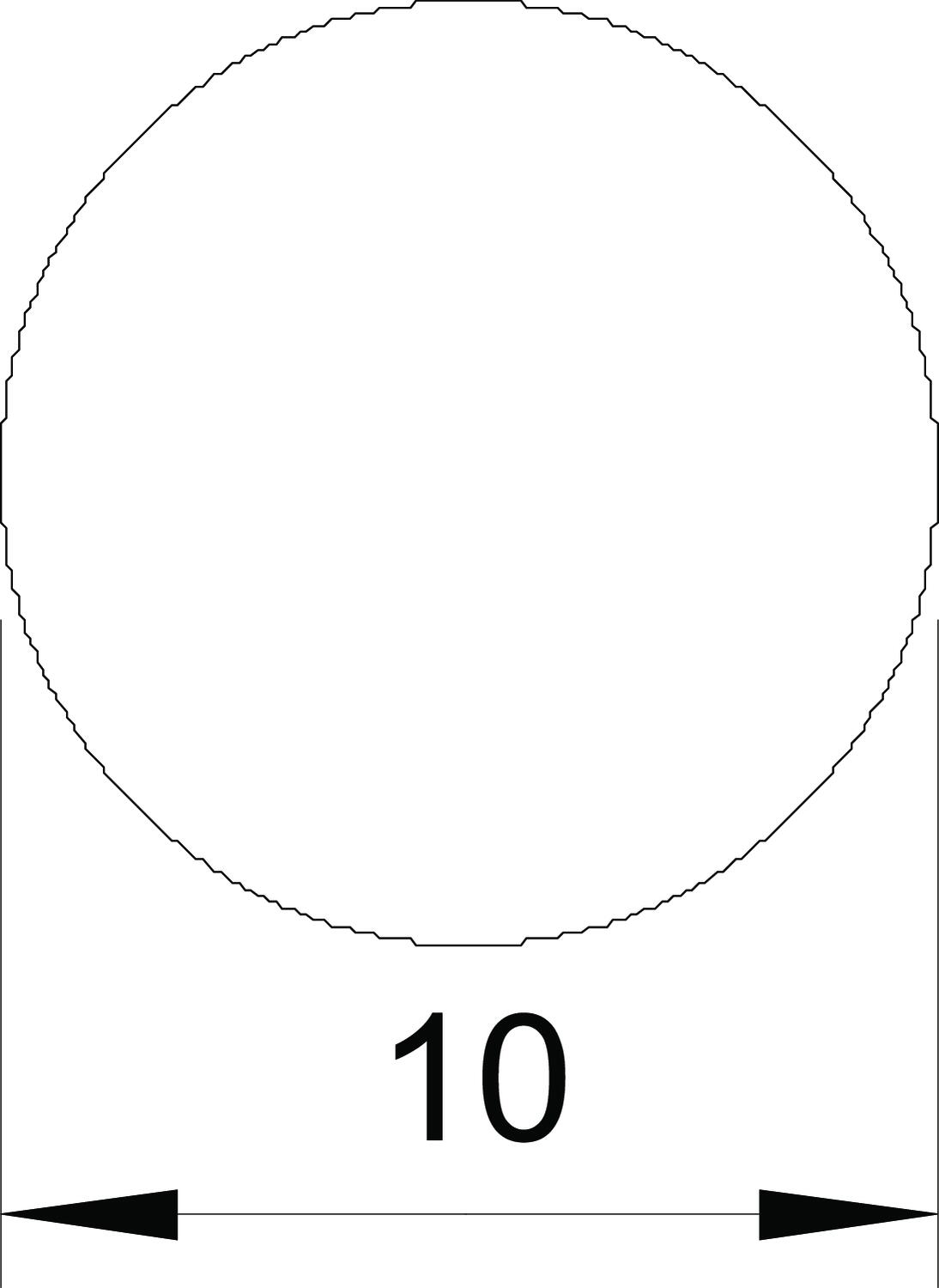

Diameter 10 mm
Dimension 10mm
Dimension D 10 mm
High voltage-resistant, insulated version no
Length tolerance ± 5 %
Material Steel
Material jacket Without
Material property Miscellaneous
Nomal ring (approx. m) 80
Normal ring (ca. kg) 50
Number of individual wires 1
Surface Hot-dip galvanised
All types

All types

Types Diameter Normal ring (ca. kg) Nomal ring (approx. m) Cross-section Material Item no. Quantity SSU
RD 8-FT 50 8 mm 20 50 50 mm² Steel 5021050
50 m
RD 8-FT 8 mm 50 125 50 mm² Steel 5021081
125 m
RD 10 10 mm 50 80 78 mm² Steel 5021103
80 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Protective cap for connection lugs, reflective Protective cap for connection lugs, reflective ProtectionBall 5018014
100 piece
Cross-connector with intermediate plate for Rd 8−10 mm FT Cross-connector with intermediate plate for Rd 8−10 mm FT 252 8-10 FT 5312310
25 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT 252 8-10X16 FT 5312345
25 piece
Cross-connector Rd 8−10 mm Cross-connector Rd 8−10 mm 253 8X8 5312604
25 piece
Cross-connector for round and flat conductors FT Cross-connector for round and flat conductors FT 252 8-10XFL30 FT 5312655
25 piece
Cross-connector for Rd 8−10 x Rd 16 Cross-connector for Rd 8−10 x Rd 16 253 10X16 5312809
25 piece
Cross-connector for flat conductors and round conductors FT Cross-connector for flat conductors and round conductors FT 250 5312906
25 piece
Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 A-FT 5313015
25 piece
Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 AS-FT 5313031
25 piece
