Round conductor, galvanised steel 8 | 50 | 125 | 50 | Steel

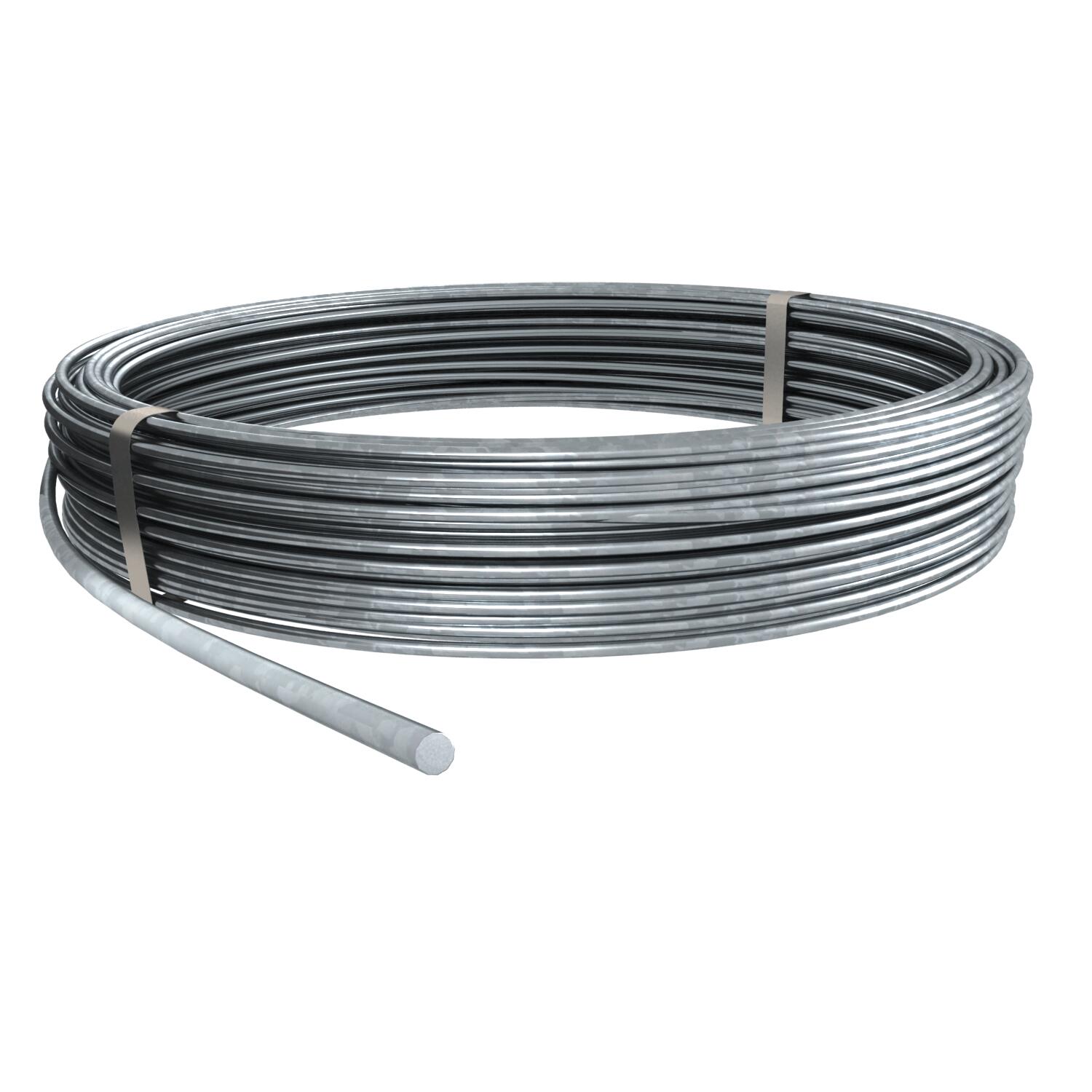

Round conductor, galvanised steel

Item no. 5021081 | EAN 4012195381556

Item no. / Types

Diameter

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section

Material	Steel

Product description

Product description

• Can be used as a conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• RD 10 can also be used in the earth
• Zinc coating: ≥ 350 g/m² (approx. 50 µm as mean value)

Technical data

Technical data

Cross-section	50 mm²

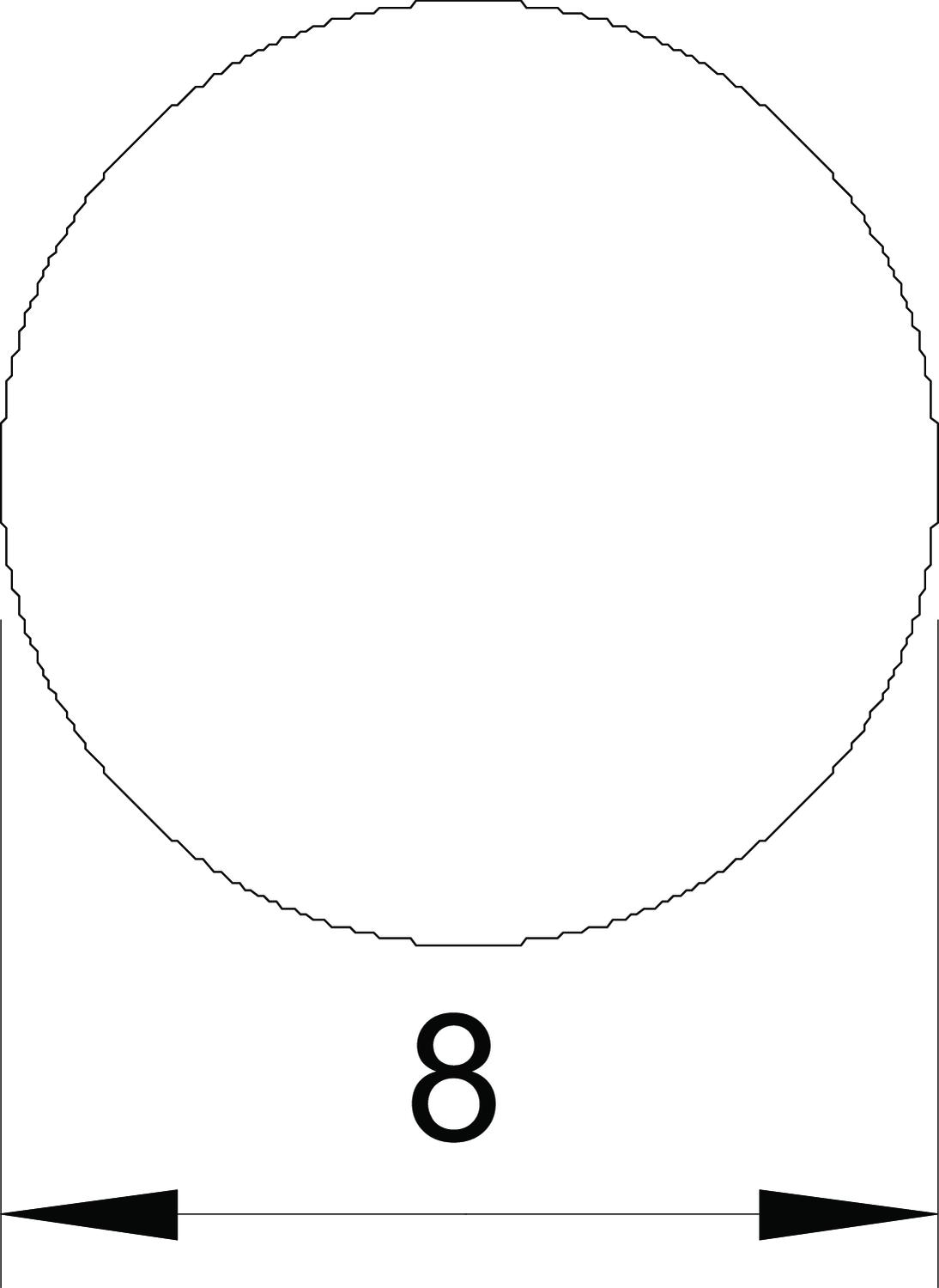

Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %
Material	Steel

Material jacket	Without
Material property	Miscellaneous
Nomal ring (approx. m)	125
Normal ring (ca. kg)	50
Number of individual wires	1
Surface	Hot-dip galvanised

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-FT 50	8 mm	20	50	50 mm²	Steel	5021050	m	50 m
RD 8-FT	8 mm	50	125	50 mm²	Steel	5021081	m	125 m
RD 10	10 mm	50	80	78 mm²	Steel	5021103	m	80 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

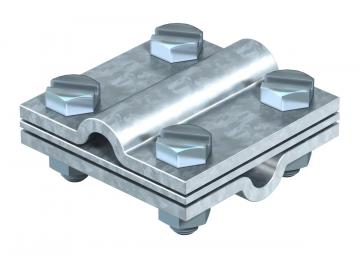

Cross-connector with intermediate plate for Rd 8−10 mm FT	252 8-10 FT	5312310	piece	25 piece

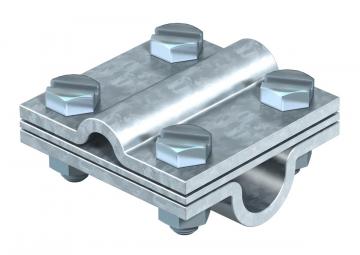

Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT	252 8-10X16 FT	5312345	piece	25 piece

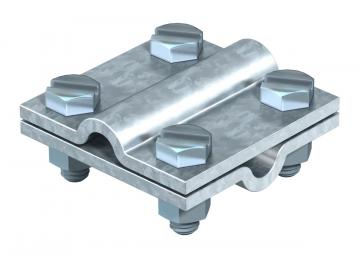

Cross-connector Rd 8−10 mm	253 8X8	5312604	piece	25 piece

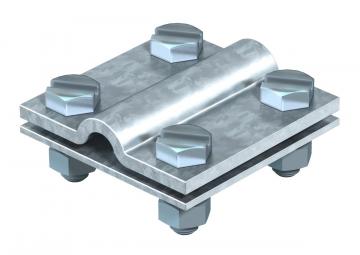

Cross-connector for round and flat conductors FT	252 8-10XFL30 FT	5312655	piece	25 piece

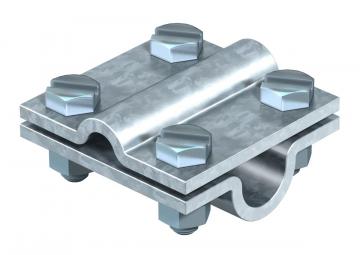

Cross-connector for Rd 8−10 x Rd 16	253 10X16	5312809	piece	25 piece

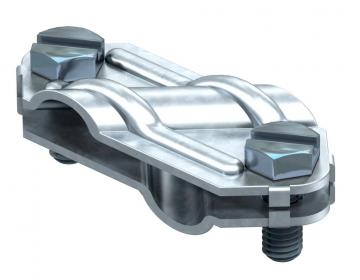

Cross-connector for flat conductors and round conductors FT	250	5312906	piece	25 piece
Diagonal clamp for flat conductors and round conductors FT	250 A-FT	5313015	piece	25 piece

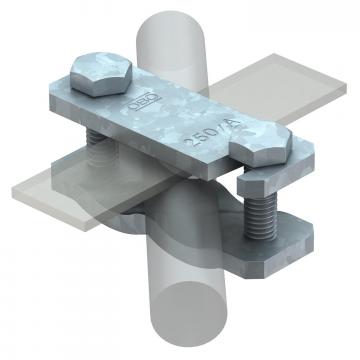

Diagonal clamp for flat conductors and round conductors FT	250 AS-FT	5313031	piece	25 piece
